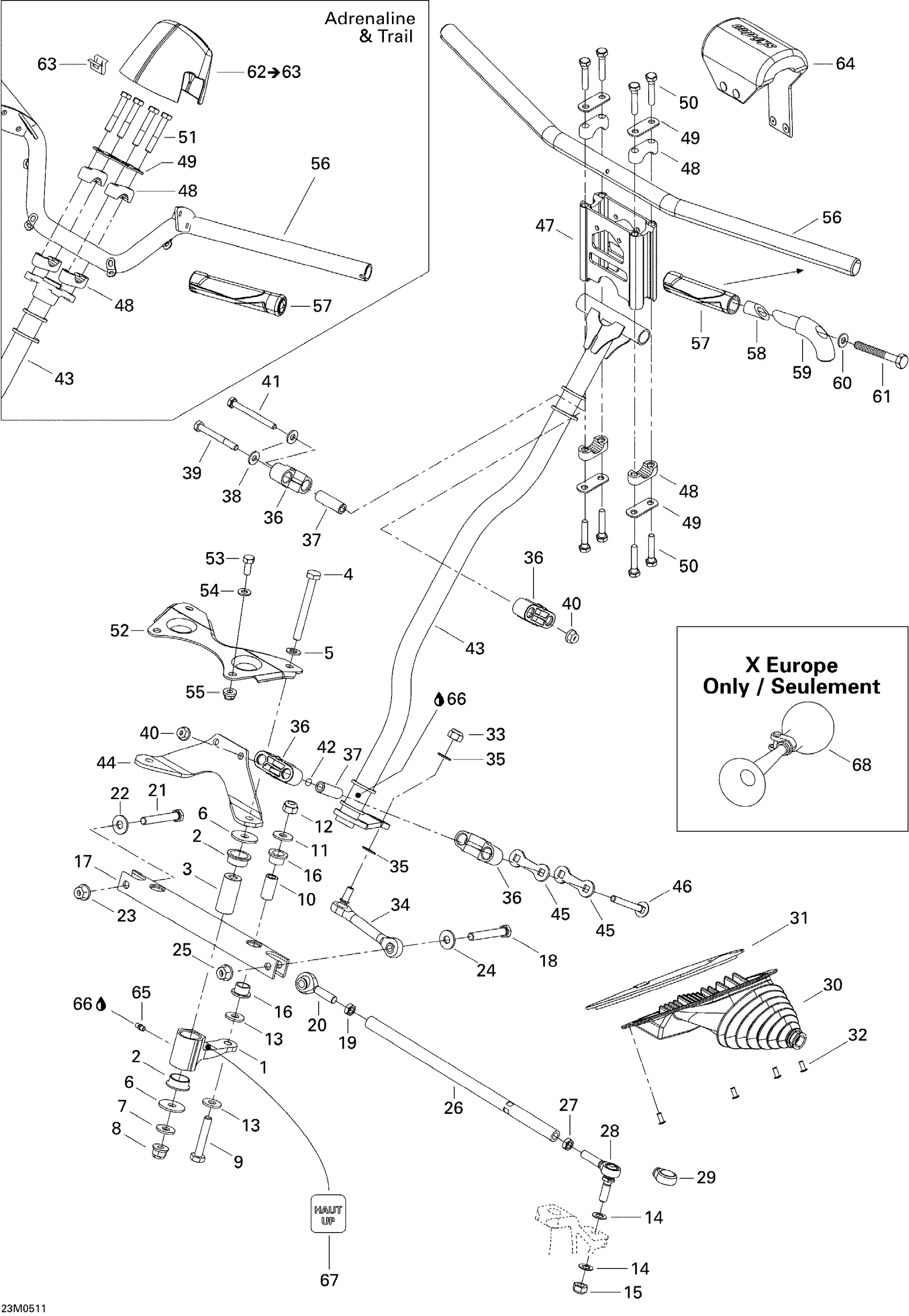

Ski-Doo MX Z 600 HO SDI Adrenaline & X, 2005 07- Steering System Diagram

#

Description
Price

1

RH Swivel Arm

506151627

Unavailable

1

LH Swivel Arm

506151628

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

Unavailable

3

SWIVEL PIVOT - Call your local BRP dealership

506151272

Unavailable

4

HEX. SCREW M10 X 90 - Call your local BRP dealership

207009086

Unavailable

5

Washer

503183800

$3.28

6

Washer 10 mm

506150000

$2.74

7

Flat Washer M10 | 4X4

250200014

$1.49

8

Flange Nut M10

732610084

$6.79

9

Hex. Screw M10 X 55

207005544

$2.22

10

Pivot Bar

506151273

$15.99

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.69

13

Washer

250200032

$5.08

14

Washer

503175800

$3.28

15

Elastic Flange Nut M10

232501416

$1.48

16

Swivel Bushing

503191555

$7.83

17

SWIVEL BAR - Call your local BRP dealership

506151328

Unavailable

18

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

19

LH Threaded Hex. Jam Nut M10

250100016

$0.74

20

LH Ball Joint

506151810

Unavailable

21

Hex. Screw M10 X 45

207004544

$1.69

22

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

23

Hex. Flange Elastic Nut M10

233201414

$1.58

24

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

25

Hex. Flange Elastic Nut M10

233201414

$1.58

26

TIE-ROD - Call your local BRP dealership

506151340

Unavailable

27

RH Threaded Hex. Jam Nut M10

732610010

$0.74

28

Ball Joint

506151811

Unavailable

29

PROTECTION CAP - Call your local BRP dealership

506151650

Unavailable

30

RH Tie-Rod Cap

506151725

$43.99

30

LH Tie-Rod Cap

506151726

$43.99

31

RH RETAINER RING - Call your local BRP dealership

506151356

Unavailable

31

LH RETAINER RING - Call your local BRP dealership

506151357

Unavailable

32

Avex Rivet

390909100

$0.30

33

Elastic Flange Nut M10

232501416

$1.48

34

BALL JOINT, DOUBLE - Call your local BRP dealership

506151621

Unavailable

35

Washer

503175800

$3.28

36

Housing Half

506150400

$7.62

37

Housing Bushing

506150500

$7.99

38

Washer

503189157

$3.28

39

Hex. Screw M8 X 70

207087044

$2.19

40

Hex. Flange Elastic Nut M8

233281414

$1.47

41

Hex. Screw M8 X 80

207088044

$1.68

42

O-RING - Call your local BRP dealership

506151140

Unavailable

43

Main Tube

506151334

Unavailable

43

Main Tube | X

506151779

Unavailable

44

STEERING SHAFT SUPPORT - Call your local BRP dealership

506151330

Unavailable

45

Stopper Plate

506150600

$4.39

46

Carriage Bolt M8 X 70

207787044

$1.37

47

Hangledbar Extension

506151754

Unavailable

48

Steering Support

709400919

$22.49

49

Stiffner

709400509

$4.69

49

REINFORCEMENT - Call your local BRP dealership

506151547

Unavailable

50

Hex. Screw With Nylon M8 X 40

250000074

$1.90

51

HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership

250000082

Unavailable

52

PIVOT SUPPORT - Call your local BRP dealership

506151536

Unavailable

53

Hex. Screw M8 X 25

207182544

$0.90

54

Flat Washer 8 mm

234081410

$0.83

55

Hex. Flange Elastic Nut M8

233281414

$1.47

56

Handlebar

506151667

Unavailable

56

HANDLE BAR - Call your local BRP dealership

506151782

Unavailable

57

Handle Grip

506152238

$78.49

57

HANDLE GRIP - Call your local BRP dealership | REN X

506152122

Unavailable

58

Wedge Lock

506151839

Unavailable

59

Short J-hook

506151837

Unavailable

60

Flat Washer

250200039

$0.74

61

HEX. SCREW M6 X 70 - Call your local BRP dealership

207067084

Unavailable

62

CAP - Call your local BRP dealership | Includes 29 to 30

506151660

Unavailable

63

Edge Clip

517302785

$0.88

64

STEERING PAD - Call your local BRP dealership

506152522

$53.99

65

Grease Fitting

408200700

$3.49

66

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

67

Upper Decal

516001750

Unavailable

68

Horn

549011291

$35.99
