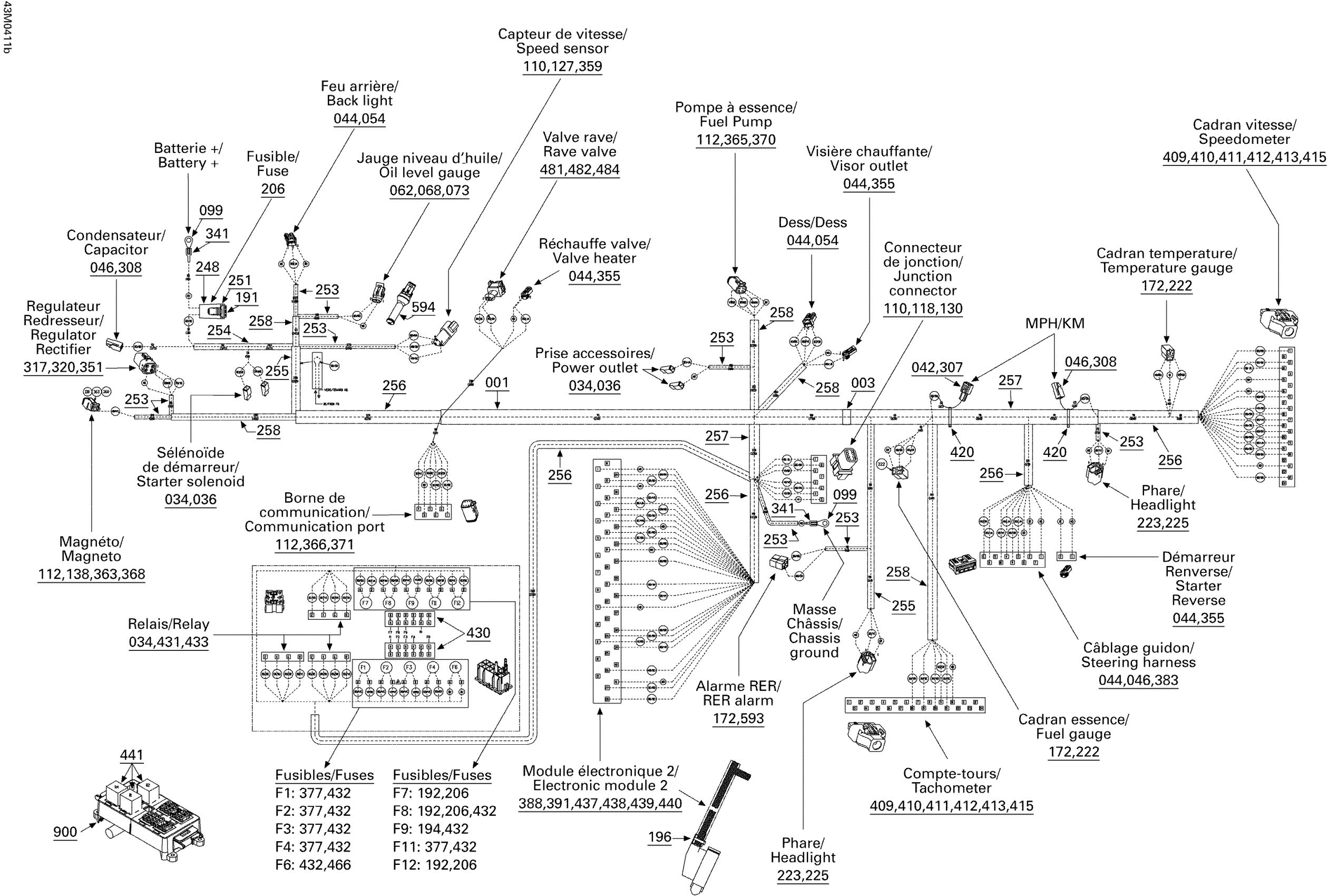

Ski-Doo MX Z 600 HO SDI, 2004 10- Frame Harness Diagram

#

Description
Price

1

Frame Harness | Includes 001 to 900

515175934

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

34

Female Terminal

409010100

$5.61

36

Female Terminal Housing, 1 Circuit

409010400

$7.62

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Female Terminal

515175231

$4.39

46

Female Terminal

515175282

$7.86

54

Female Housing, 3 Circuits

515175495

$16.18

62

Female Terminal

278001014

$3.28

68

Female Housing, 2 Circuits

409209500

$15.27

73

Wire Seal

278001013

$3.28

99

Open Barrel

278000992

$2.21

110

Male Terminal

278000631

$4.39

112

Female Terminal

278000632

$2.09

118

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001742

Unavailable

127

Male Lock, 3 Circuits

409207600

$3.19

130

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

138

Sealing Cap

293000052

$3.19

172

Female Terminal

561503100

$2.41

191

Fuse, 30 Amperes

410917200

$3.28

192

Fuse, 20 Amperes

409003900

$3.28

194

Fuse, 10 Amperes | North America

278001197

$2.21

196

Tie Wrap 142 mm

293750002

$1.25

206

Female Terminal

409004200

$4.55

222

Female Housing

409204300

Unavailable

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

248

Fuse Holder

409004000

$8.09

251

CLIP - Call your local BRP dealership

409014200

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

258

Tubing 10 MM 1000MM Long

219704407

$2.79

307

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

308

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

317

Female Terminal Housing, 4 Circuits

278001473

$26.99

320

Female Terminal

515175567

$7.69

341

Not Available As Spare Part - Friction Washer

Unavailable

351

Female Lock, 4 Circuits

278001474

$3.49

355

Female Housing, 2 Circuits

515175658

$16.18

359

Male Housing

515175666

$15.49

363

Female Terminal Housing, 2 Circuits

515175670

$8.39

365

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

366

Male Housing, 6 Circuits

515175673

$15.49

368

Female Lock, 2 Circuits

515175675

$4.55

370

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

371

Male Wedge, 6 Circuits

515175678

$5.39

377

Fuse, 5 Amperes | CE

278000344

$3.28

383

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

409

Plug

515175812

$2.19

410

Female Housing, 24 Circuits

515175801

$9.59

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

413

BLOCK - Call your local BRP dealership

515175804

Unavailable

415

Female Terminal

515175806

$0.99

420

Tie-Rap 180 mm

414115200

$0.11

430

FUSE HOLDER - Call your local BRP dealership

515175857

Unavailable

431

RELAY HOLDER - Call your local BRP dealership

515175856

Unavailable

432

FEMALE TERMINAL - Call your local BRP dealership

515175855

Unavailable

433

FEMALE TERMINAL - Call your local BRP dealership

515175854

Unavailable

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$9.12

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

441

Relais *Relay This part replaces 410113604.

515177672

$46.49

466

Fuse, 0.5 Ampere

415128525

Unavailable

481

Female Terminal Housing, 2 Circuits

415128500

$7.62

482

Female Terminal

278000998

$4.39

484

Seal

415128501

$1.89

593

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

Unavailable

594

Rubber Boot

515176070

Unavailable

900

Fuse Box Base

515175739

Unavailable
