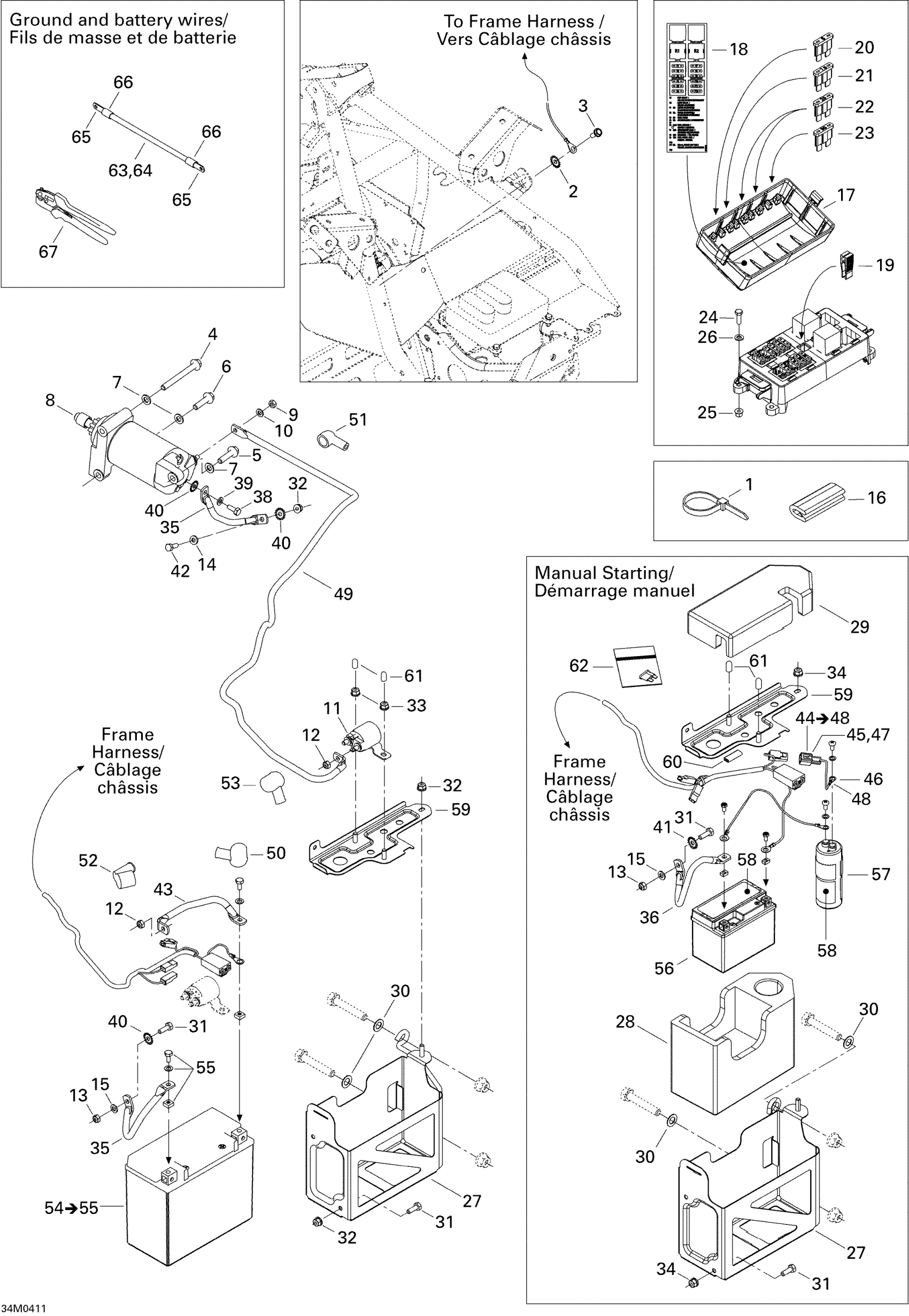

Ski-Doo MX Z 600 HO SDI, 2004 10- Battery, Starter and Fuse Box Diagram

#

Description
Price

1

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 173 mm

293750009

$1.04

2

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

3

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

4

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$8.29

5

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

6

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

7

Flat Washer With Teflon 8 mm

250200008

$3.80

8

Electric Starter Ass'y

515176133

$319.49

9

Elastic Stop Nut M6

232561414

$0.55

10

Flat Washer 6 mm

234061410

$1.36

11

Starter Relay

515176011

$62.49

12

Elastic Stop Nut M6

232561414

$0.55

13

Elastic Stop Nut M6

232561414

$0.55

14

Flat Washer 6 mm

234061410

$1.36

15

Flat Washer 6 mm

234061410

$1.36

16

Was 271000110 Protection Trim

219704353

$15.99

17

COVER - Call your local BRP dealership

515176066

Unavailable

18

Fuse Decal

516002141

Unavailable

19

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

20

Fuse, 5 Amperes | CE

278000344

$3.28

21

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

22

Fuse, 20 Amperes

409003900

$3.28

23

Fuse, 30 Amperes

410917200

$3.28

24

Hex. Screw M5 X 20

207152044

$0.90

25

Hex. Flange Elastic Nut M5

233251414

$1.04

26

Flat Washer M5

234051410

$0.53

27

Battery Support, Black

515176017

Unavailable

28

Capacitor Support

515176026

Unavailable

29

COVER - Call your local BRP dealership | Manual Start

515176114

Unavailable

30

Washer

503175800

$3.28

31

Hex. Screw M6 X 18

207161844

$0.76

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

GROUND HARNESS, CAPACITOR - Call your local BRP dealership | Manual Start

515176119

Unavailable

38

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

39

Flat Washer 6 mm

234061410

$1.36

40

Lock Washer Serrated M6

250200041

$1.15

41

Lock Washer Serrated M6

250200041

$1.15

42

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

43

Not Available As Spare Part - Friction Washer

Unavailable

44

CAPACITOR HARNESS - Call your local BRP dealership | Manual Start, Includes 36 to 39

515176120

Unavailable

45

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

46

Ring Terminal

515175504

$9.12

47

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Protection Cap

570151000

$21.99

51

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

52

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

53

Protector Cap | XT

515175919

$17.99

54

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

55

Battery Bolt Kit

250000282

$7.29

56

Battery 12 Volt 4 Ah

415130961

Unavailable

57

CAPACITOR - Call your local BRP dealership

515176387

Unavailable

58

CAPACITOR DECAL - Call your local BRP dealership

516002976

Unavailable

59

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

60

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

61

Cap

515176141

$3.09

62

Not Available As Spare Part - Friction Washer

Unavailable

63

Ground Cable Battery, no 6, meter)

278001680

Unavailable

64

Cable Battery, no 6, meter)

278001690

Unavailable

65

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable

66

Was 710000483 Heat Shrink Tubing

219704447

$78.99

67

Crimp Plier

529035730

Unavailable
