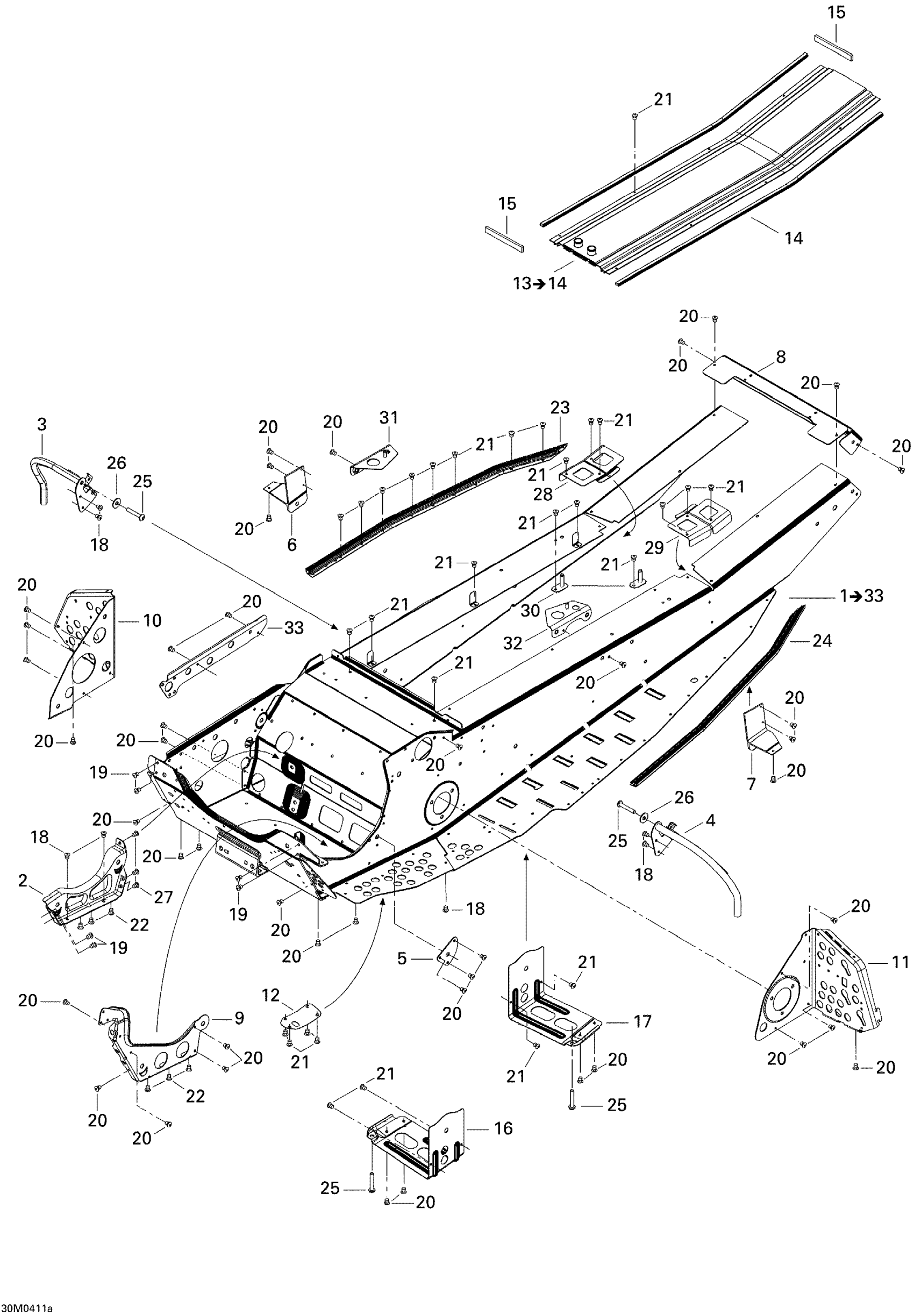

Ski-Doo MX Z 600 HO SDI, 2004 09- Frame (Adrenaline_X) Diagram
#
Description
Price
1
Frame | INCLUDES ITEMS 1 TO 33
415128812
Unavailable
Frame | X / Includes items 1 to 33
415128811
Unavailable
2
ENGINE SUPPORT, BLACK - Call your local BRP dealership
518323346
Unavailable
3
RH TOE HOLD SUPPORT - Call your local BRP dealership
518324162
Unavailable
4
LH TOE HOLD SUPPORT - Call your local BRP dealership
518324163
Unavailable
5
OUTER REINFORCEMENT - Call your local BRP dealership
518323507
Unavailable
6
RH Slide Bracket
518323572
Unavailable
7
LH SLIDE BRACKET - Call your local BRP dealership
518323573
Unavailable
8
Rear Cap
518323835
Unavailable
9
INNER REINFORCEMENT, BLACK - Call your local BRP dealership
518323241
Unavailable
10
RH Footrest Reinforcement
518323805
Unavailable
11
LH Footrest Reinforcement
518323765
Unavailable
12
PLATE - Call your local BRP dealership
518324169
Unavailable
13
Front Radiator | INCLUDES ITEMS 13 TO 14 / GSX 600 HO
518323646
Unavailable
14
RADIATOR PROTECTOR - Call your local BRP dealership | Formula III 600 LT.
415012300
Unavailable
16
RH Reinforcement, Black
518323753
Unavailable
17
LH Reinforcement, Black
518323754
Unavailable
22
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
23
RH Roller
518323551
Unavailable
24
LH Roller
518323552
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
28
RH Frame Reinforcement
518323919
Unavailable
29
LH Frame Reinforcement
518323920
Unavailable
30
Tank Bracket
518322791
Unavailable
31
RH Frame Reinforcement, Black
518323336
Unavailable
32
LH Frame Reinforcement, Black
518323337
Unavailable
33
RH TUNNEL STIFFENER - Call your local BRP dealership
518323328
Unavailable
