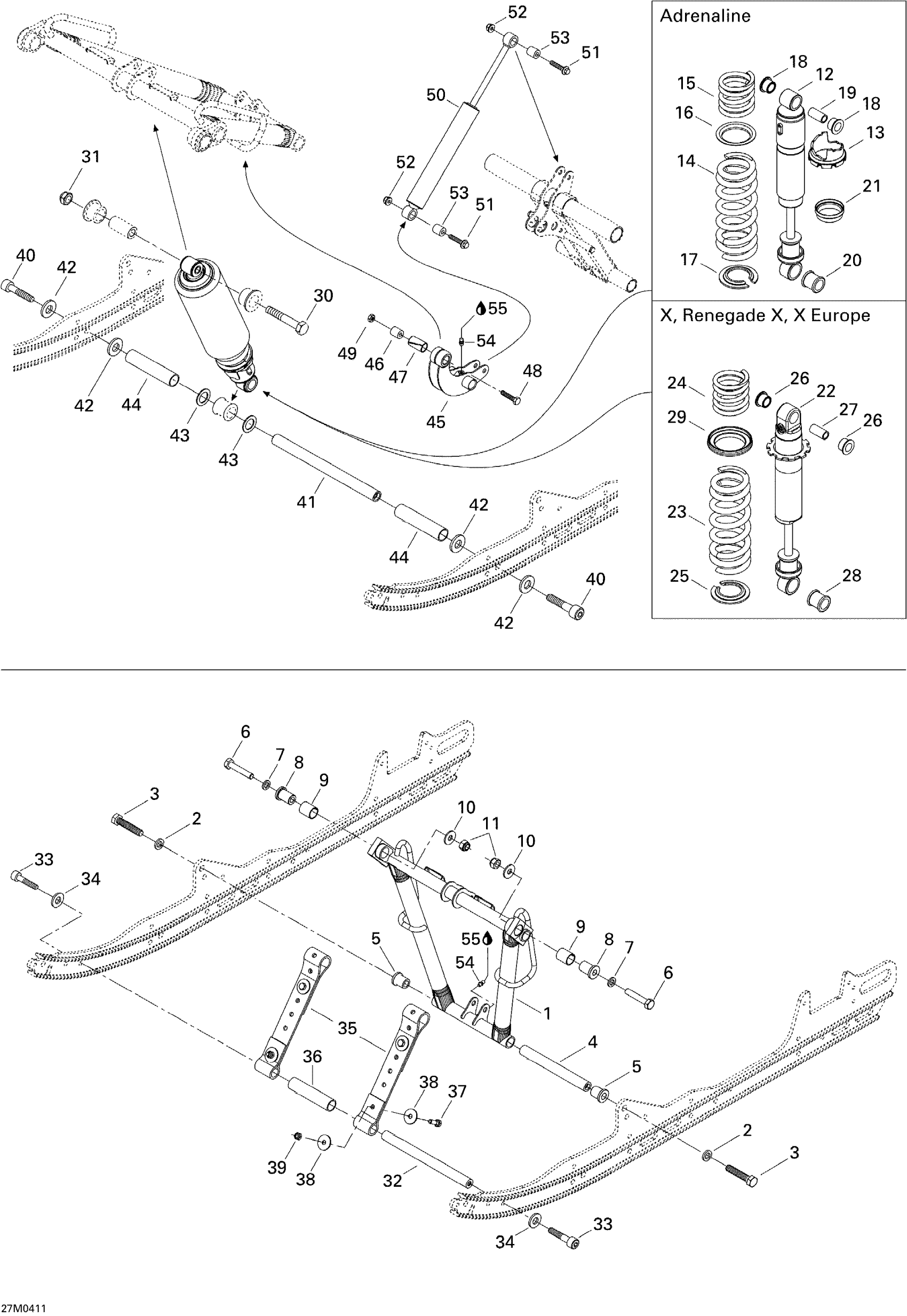

Ski-Doo MX Z 600 HO SDI, 2004 08- Front Arm Diagram

#

Description
Price

1

Front Arm

503190674

Unavailable

2

Washer

503189276

$3.28

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55

207005544

$2.22

7

Washer

732900049

$0.58

8

EXTENSION - Call your local BRP dealership

503190373

Unavailable

9

EXTENDED BUSHING - Call your local BRP dealership

503190474

$11.99

10

Flat Washer M10 | 4X4

250200014

$1.49

11

Elastic Locking Nut M10 X 1.5

233601416

$1.69

12

Center Shock | Europe

503190663

$248.99

13

Adjustment Cam

505073625

$12.99

14

SPRING - Call your local BRP dealership

503190478

Unavailable

15

SPRING - Call your local BRP dealership

503190476

Unavailable

16

Spring Guide

503191872

$2.29

17

Spring Stopper

503189912

$10.99

18

Urethane Bushing

503189117

$8.19

19

Bushing | Includes 240d to 240d1

503189282

$4.34

20

Bushing

503189271

$13.99

21

Spring Spacer

503190297

Unavailable

22

Center Shock | Renegade X

503190445

Unavailable

Center Shock | Trail Europe & X Europe

503190448

Unavailable

23

SPRING - Call your local BRP dealership

503190478

Unavailable

SPRING - Call your local BRP dealership | Trail Europe & X Europe

503190480

Unavailable

24

SPRING - Call your local BRP dealership

503190476

Unavailable

SPRING - Call your local BRP dealership

503190476

Unavailable

25

Spring Stopper

503189912

$10.99

Spring Stopper

503189912

$10.99

26

Urethane Bushing

503189117

$8.19

Urethane Bushing

503189117

$8.19

27

Bushing | Includes 240d to 240d1

503189282

$4.34

Bushing | Includes 240d to 240d1

503189282

$4.34

28

Bushing

503189271

$13.99

Bushing

503189271

$13.99

29

Spring Spacer

503190297

Unavailable

Spring Spacer

503190297

Unavailable

30

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

31

Elastic Locking Nut M10 X 1.5

233601416

$1.69

32

AXLE - Call your local BRP dealership

503189562

Unavailable

33

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

34

Washer

503189564

$0.74

35

Stopper Strap, Large

503190563

Unavailable

36

Spacer

503189265

$4.99

37

Hex. Screw M8 X 25

207182544

$0.90

38

Flat Washer

224081301

$0.88

39

Hex. Elastic Stop Nut M8

232581414

$0.56

40

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

41

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

42

Washer

503189276

$3.28

43

Washer

503189273

$3.28

44

SPACER - Call your local BRP dealership

503189274

Unavailable

45

Rocker

503189845

Unavailable

46

Rocker Axle

503189388

Unavailable

47

CUSHION - Call your local BRP dealership

503189626

Unavailable

48

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

49

Elastic Locking Nut M10 X 1.5

233601416

$1.69

50

Rear Shock | Adrenaline

503190649

Unavailable

REAR SHOCK - Call your local BRP dealership | X

503190446

Unavailable

Rear Shock | Europe

503190449

Unavailable

Rear Shock | Europe

503190382

Unavailable

51

Hex. Flange Screw M8 X 40

207684044

$1.48

52

Hex. Flange Elastic Nut M8

233281414

$1.47

53

Bushing

414936000

$13.99

54

Grease Fitting

408200700

$3.49

55

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
