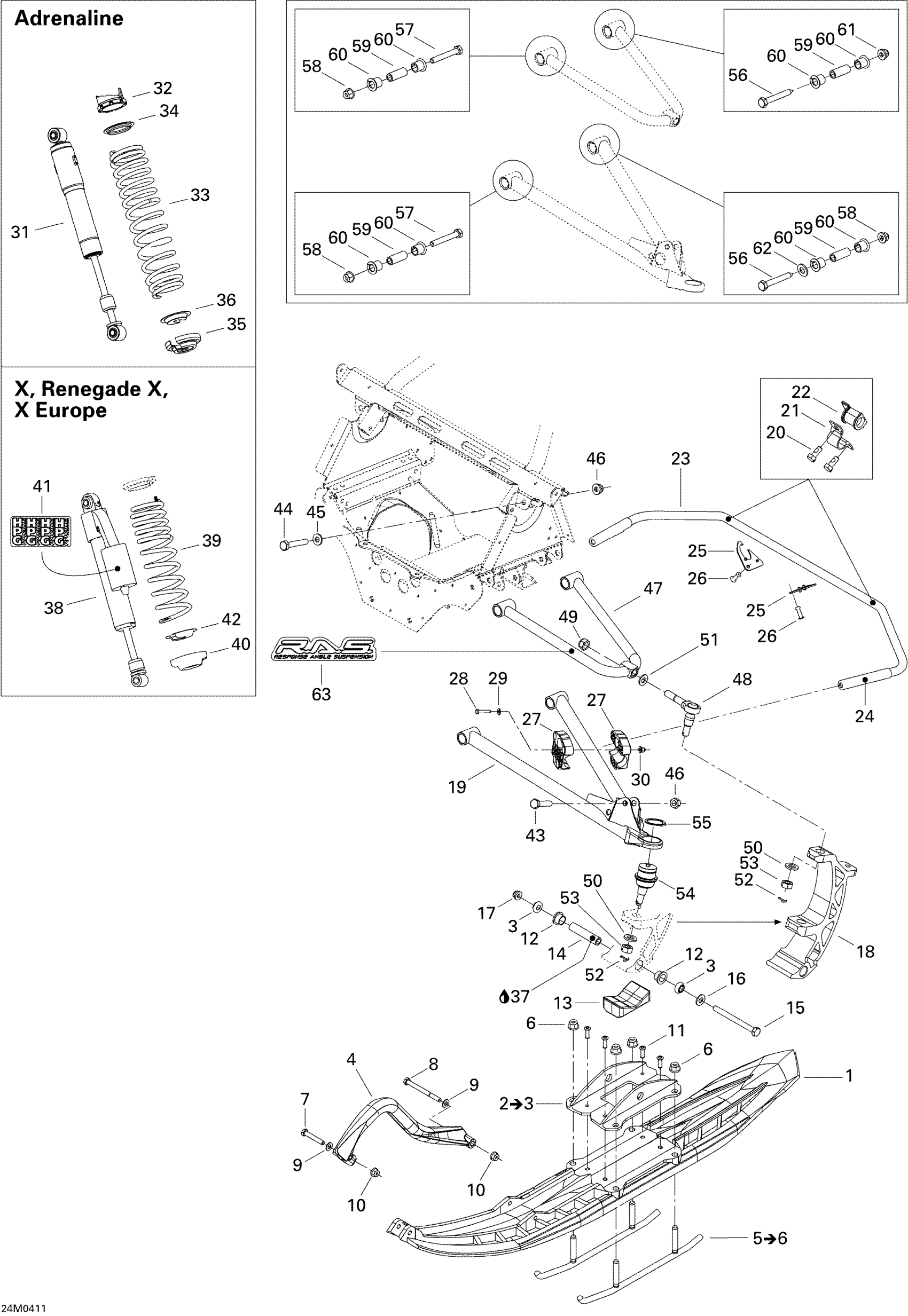

Ski-Doo MX Z 600 HO SDI, 2004 07- Front suspension and ski Diagram

#

Description
Price

1

Deep Black, Precision Ski | Sport

505070727

$111.49

Precision Ski, Yellow

505070831

Unavailable

2

Bridge Ass'y | Includes 2 to 3

505070764

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Handle Kit, Yellow

860506400

Unavailable

Black, Handle

505070963

$35.99

5

Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.

860200148

$92.99

6

Hex. Flange Elastic Nut M10

233201414

$1.58

7

Hex. Screw M8 X 50

207085044

$1.48

8

Hex. Screw M8 X 90

207089044

$3.48

9

Flat Washer 8 mm

234081410

$0.83

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

12

Leg Bushing

505072690

$12.49

13

Ski Stopper

505070671

Unavailable

14

Spacer

506133300

$23.99

15

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

16

Washer

732900049

$0.58

17

Flange Nut M10

732610084

$6.79

18

SKI LEG - Call your local BRP dealership

505071232

Unavailable

19

RH Lower Arm

505071290

Unavailable

LH Lower Arm

505071293

Unavailable

20

Hex. Screw With Nylon

250000118

Unavailable

21

CLAMP - Call your local BRP dealership

506095800

Unavailable

22

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

RH BUSHING - Call your local BRP dealership

505070912

Unavailable

23

STABILISATOR - Call your local BRP dealership

505070948

Unavailable

24

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

25

PLUG - Call your local BRP dealership

505071253

Unavailable

26

Pop Rivet 3/16"

293150103

$0.55

27

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

LH SLIDER HALF - Call your local BRP dealership

505071269

Unavailable

28

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

29

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

30

Hex. Flange Elastic Nut M5

233251414

$1.04

31

Front Shock | GSX Ltd

505071224

Unavailable

32

Adjustment Cam

505073625

$12.99

33

Spring

505071257

Unavailable

34

Spring Guide

503191872

$2.29

35

Spring Stopper

706200881

$12.99

36

Cap

706200785

$4.69

37

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

38

RH FRONT SHOCK - Call your local BRP dealership | X

505071301

Unavailable

RH Front Shock | Trail Europe, X Europe & Renegade X Europe

505071309

Unavailable

LH Front Shock | X

505071300

Unavailable

LH Front Shock | Trail Europe, X Europe & Renegade X Europe

505071308

Unavailable

39

SPRING - Call your local BRP dealership | X, Adrenaline Europe, Trail Europe, X Europe

505071388

Unavailable

40

Spring Stopper

706200881

$12.99

41

Shock Decal

516000183

Unavailable

42

Cap

706200785

$4.69

43

Hex. Screw M10 X 55

207005544

$2.22

44

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

45

Washer

732900049

$0.58

46

Hex. Flange Elastic Nut M10

233201414

$1.58

47

Upper Arm

505071276

Unavailable

48

Upper Ball Joint

505072257

$17.58

49

Hex. Flange Elastic Nut M12

250000047

$1.90

50

Flat Washer 12 mm

234021410

$0.72

51

Washer

503189276

$3.28

52

Cotter Pin

211400017

$0.33

53

Hex. Castellated Nut M12

232221414

$3.17

54

Ball Joint

505073636

$51.99

55

Circlip

293370035

$2.64

56

Cone Screw M10 X 75

250000114

Unavailable

57

Hex. Screw M10 X 70

207007044

$2.32

58

Hex. Flange Elastic Nut M10

233201414

$1.58

59

Bushing

505070567

$24.99

60

Arm Bushing

505070566

$3.28

61

Elastic Locking Nut M10 X 1.5

233601416

$1.69

62

Washer

503189564

$0.74

63

R.A.S. Suspension Decal

516001704

Unavailable
