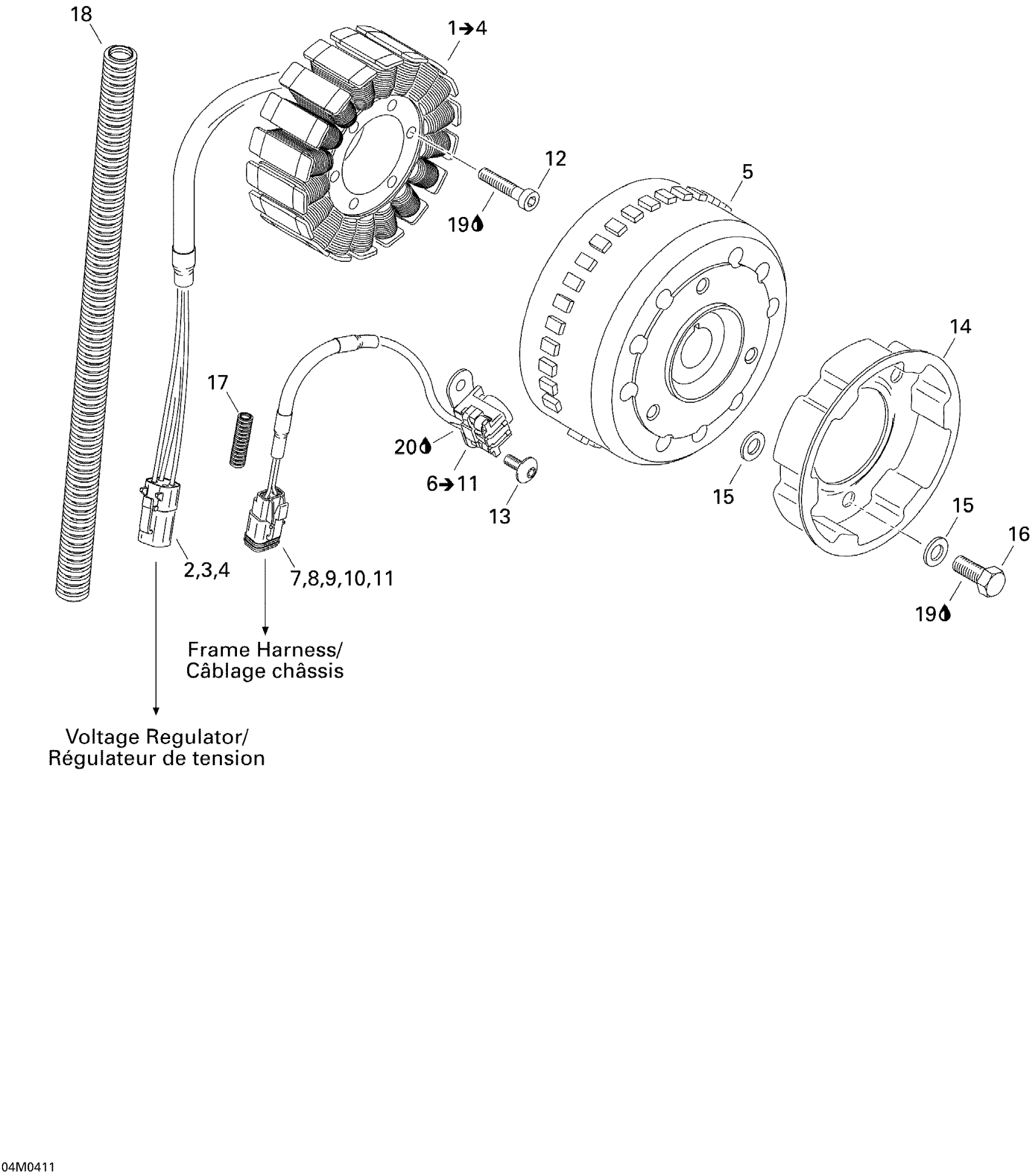

Ski-Doo MX Z 600 HO SDI, 2004 03- Magneto (12V, 480W) Diagram

#

Description
Price

1

STATOR ASS'Y - Call your local BRP dealership

420866068

Unavailable

2

Female Terminal Housing, 4 Circuits

278001473

$26.99

3

Male Terminal

515175568

$9.12

4

Female Lock, 4 Circuits

278001474

$3.49

5

FLYWHEEL - Call your local BRP dealership

420866040

Unavailable

6

PICK-UP ASS'Y - Call your local BRP dealership

410922963

Unavailable

7

Female Terminal Housing, 2 Circuits

515175670

$8.39

8

Female Terminal

278000632

$2.09

9

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

10

Female Lock, 2 Circuits

515175675

$4.55

11

Sealing Cap

293000052

$3.19

12

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

420241816

$1.59

13

Torx Screw M6 X 16

420640324

$2.11

14

Starting Pulley | Manual Start This part replaces 420852532.

420852533

$24.99

15

Flat Washer

420827405

$1.69

16

Hex. Screw M8 x 16

207181644

$1.15

17

TUBE - Call your local BRP dealership

420660911

Unavailable

18

TUBE - Call your local BRP dealership

420460012

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

Not Available As Spare Part - Friction Washer

Unavailable
