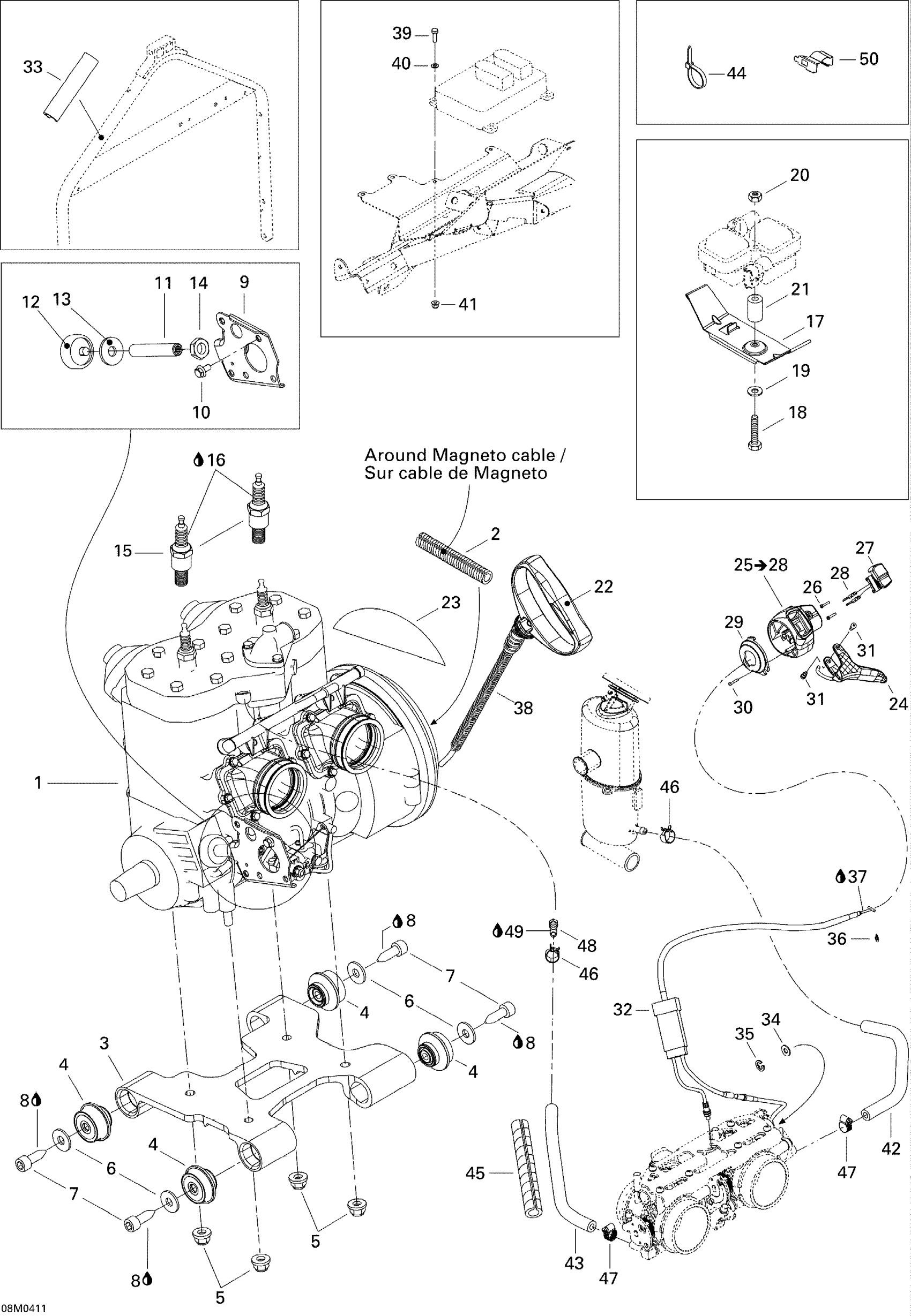

Ski-Doo MX Z 600 HO SDI, 2004 01- Engine support Diagram

#

Description
Price

1

Engine 593 Ho SDI Rer

400509751

Unavailable

2

Tubing 16 Mm 1000Mm Long

219704408

$7.49

3

Engine Support

512059754

Unavailable

4

Rubber Mount

512059691

$47.99

5

Hex. Flange Elastic Nut M10

233201414

$1.58

6

Flat Washer M10 | 4X4

250200014

$1.49

7

Screw M10 X 30

250000094

$24.49

8

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

9

PLATE - Call your local BRP dealership

512059840

Unavailable

10

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

11

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

12

STOPPER - Call your local BRP dealership

512059610

Unavailable

13

WASHER - Call your local BRP dealership

512059057

Unavailable

14

Hex. Jam Nut M14

232170411

$1.48

15

Spark Plug NGK BR9ECS

415128524

$10.59

16

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

17

COIL SUPPORT - Call your local BRP dealership

512059865

Unavailable

18

Hex. Screw M6 X 45

207064544

$2.11

19

Flat Washer 6 mm

234061410

$1.36

20

Elastic Stop Nut M6

232561414

$0.55

21

SPACER - Call your local BRP dealership

512059812

Unavailable

22

Starter Grip

572084400

$14.83

23

REFLECTIVE SHEET - Call your local BRP dealership

512059893

Unavailable

24

Throttle Handle Ass'y | Includes 13 to 14

512060484

$124.99

25

Housing Throttle Ass'y | Includes 25 to 27

512060121

$38.99

26

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

27

Housing Throttle Ass'y | Includes 25 to 27

512060121

$38.99

28

Male Terminal

515175232

$1.58

29

COVER - Call your local BRP dealership

512059698

Unavailable

30

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

31

Flange Screw

732601143

$4.12

32

Throttle Cable

512059765

Unavailable

Throttle Cable

512059878

Unavailable

33

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

34

Flat Washer 8 mm, Nylon

234081100

$1.39

35

Circlip

414753500

$0.71

36

Circlip

414274500

$0.90

37

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

38

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

39

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

40

Flat Washer M5

234051410

$0.53

41

Hex. Flange Elastic Nut M5

233251414

$1.04

42

FORMED HOSE - Call your local BRP dealership

512059563

Unavailable

43

Formed Hose

512059892

Unavailable

44

Tie-Rap 180 mm

414115200

$0.11

45

Tubing 16 Mm 1000Mm Long

219704408

$7.49

46

Spring Clamp

414655700

$0.72

47

Tridon Gear Clamp

293650170

$1.99

48

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

49

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

50

Heating Element Bracket

512059809

Unavailable
