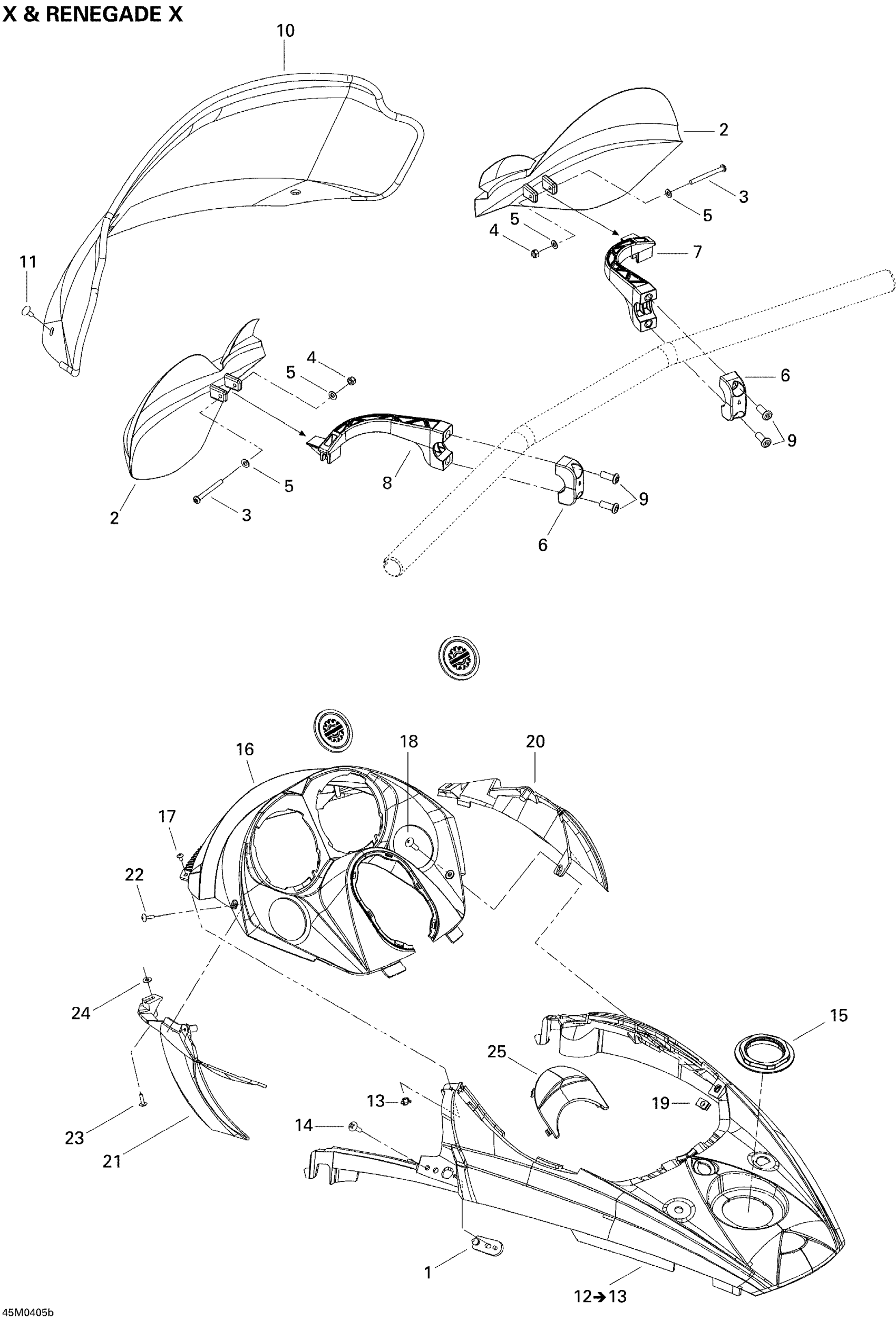

Ski-Doo MX Z 600 HO Renegade/Renegade X, 2004 09- Windshield And Console (X & Renegade X) Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Air Deflector Kit, Yellow

415128768

Unavailable

3

Socket Head Screw M4 X 40 | X

205444086

$1.69

4

Elastic Stop Nut M4

232541484

$0.74

5

Flat Washer 4 mm

234041480

$0.74

6

U-Clamp | XT

517303264

$11.99

7

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

Unavailable

8

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

Unavailable

9

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

10

LOW WINDSHIELD - Call your local BRP dealership

517303045

Unavailable

11

Tuflok Plastic Rivet

293150230

$1.47

12

CENTER CONSOLE, BLACK - Call your local BRP dealership | Includes 10 to 11, (Black/Yellow)

517302795

Unavailable

CENTER CONSOLE, YELLOW - Call your local BRP dealership | Includes 10 to 11

517302845

Unavailable

CENTER CONSOLE - Call your local BRP dealership | Includes 11 to 12, 800R (Blue/Black)

517303068

Unavailable

13

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

14

Torx Screw M6 X 20

250000722

$1.68

15

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

16

Indicator Support | X & Renegade X

517303055

Unavailable

17

Torx Screw M4 X 8

250000127

$1.15

18

Torx Screw M5 X 20

250000724

$1.69

19

Panel Nut M5 X 0.8

250000958

$4.23

20

RH Air Deflector

517302798

Unavailable

21

LH AIR DEFLECTOR - Call your local BRP dealership

517302799

Unavailable

22

Phillips Screw K40 X 16

250000723

$0.98

23

Screw M4 X 16

250000725

$3.49

24

Flat Washer 4 mm, Stainless

234042600

$1.15

25

CONSOLE CAP - Call your local BRP dealership

517302592

Unavailable
