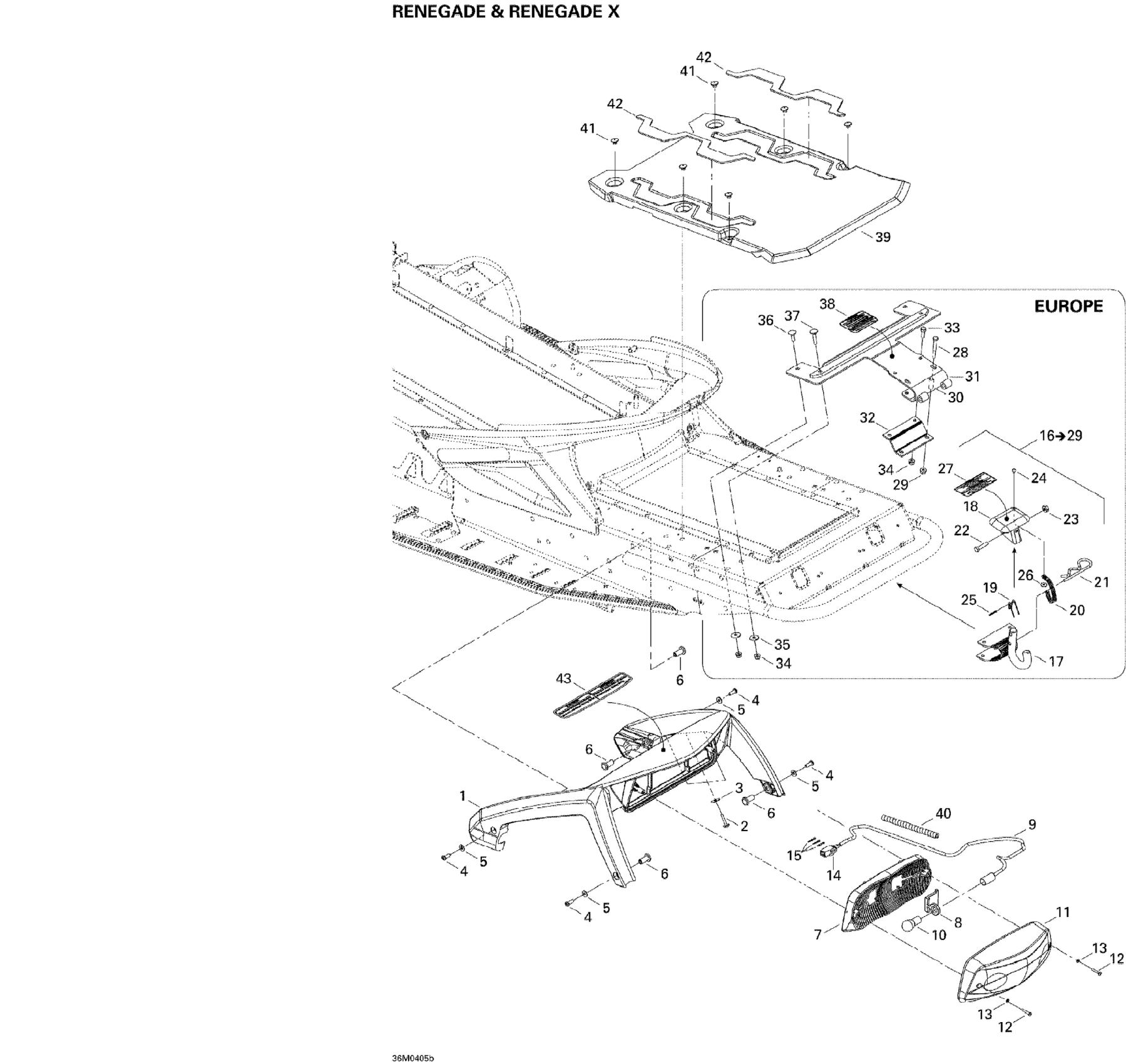

Ski-Doo MX Z 600 HO Renegade/Renegade X, 2004 09- Luggage Rack Diagram

#

Description
Price

1

Luggage Rack

511000234

Unavailable

Luggage Rack | Europe

511000247

Unavailable

2

Hex. Tapping Screw #8 X 5/8"

250000068

$1.90

3

Flat Washer

250200040

$1.90

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Flat Washer

250200039

$0.74

6

Insert

511000260

Unavailable

7

REFLECTOR - Call your local BRP dealership

510004018

Unavailable

8

Rubber Damper

414979411

Unavailable

9

FITTING - Call your local BRP dealership

511000248

Unavailable

10

Bulb

520000758

$9.10

11

Lens

511000315

$36.99

12

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

13

Washer - Call your local BRP dealership

414516400

Unavailable

14

Male Housing, 3 Circuits

515175494

$16.18

15

Male Terminal

515175232

$1.58

16

HITCH ASS?Y KIT - Call your local BRP dealership | Includes 49 to 60 / Europe

861778700

Unavailable

17

Hitch | Europe

517199300

Unavailable

18

Hitch Protector | Europe

517152700

Unavailable

19

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Hair Pin

114045200

$11.11

22

Hex. Screw M6 X 30

207063044

$1.26

23

Elastic Stop Nut M6

232561414

$0.55

24

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

25

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Security Label, Hitch

516001243

Unavailable

28

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

31

FIXATION - Call your local BRP dealership

511000251

Unavailable

32

REINFORCEMENT - Call your local BRP dealership | Europe

511000022

Unavailable

33

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

35

Flat Washer

224061201

$1.37

36

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

37

Carriage Bolt M6 X 30

207763044

$4.44

38

Security Label, Hitch | Europe

516001709

Unavailable

39

Radiator Cover

511000313

Unavailable

40

Tubing 6 Mm 3000Mm Long

219704425

$13.75

41

Pop Rivet 3/16"

293150103

$0.55

42

Carpet

511000316

Unavailable

43

Load Label 15.8 Kg

516001994

Unavailable
