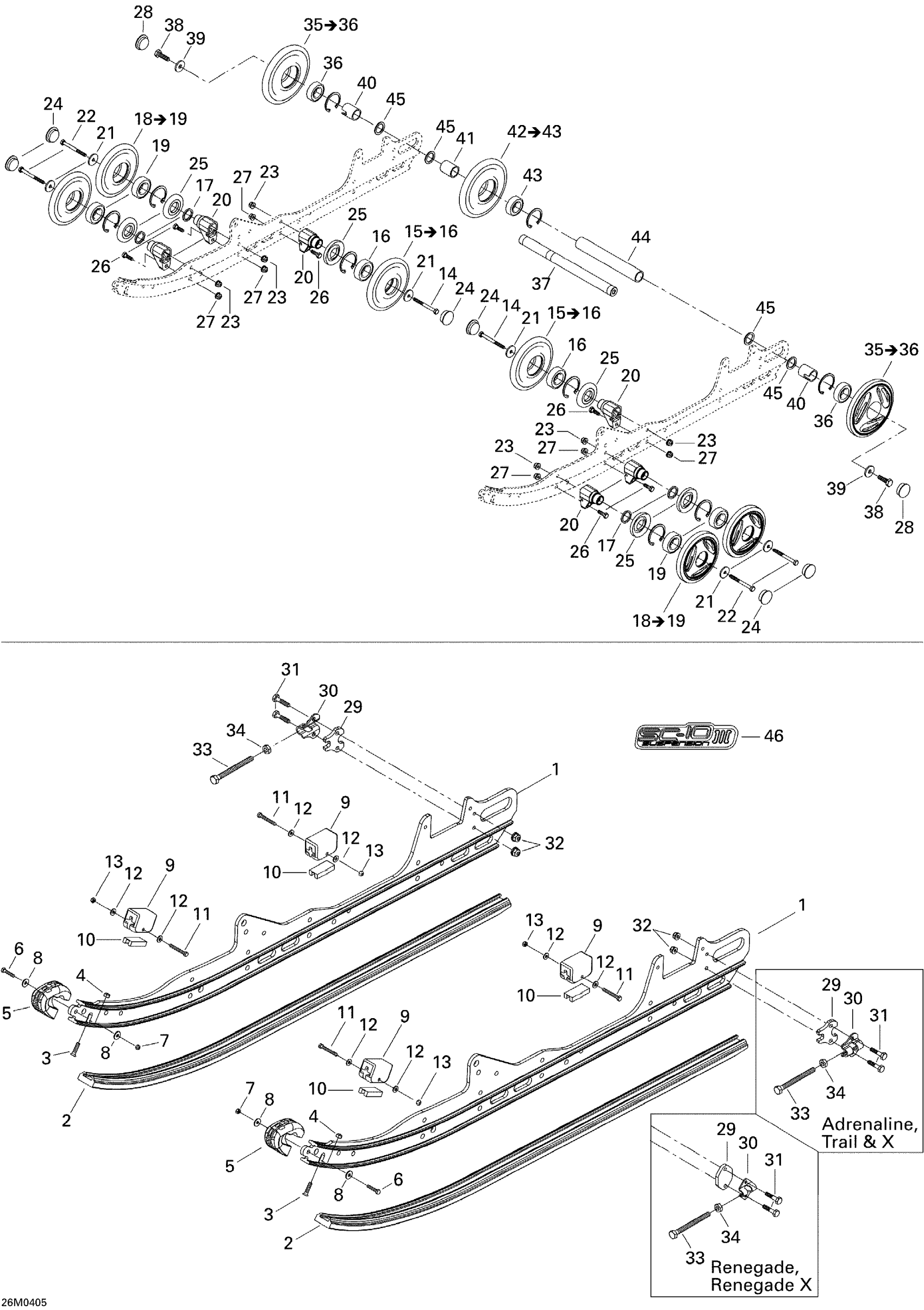

Ski-Doo MX Z 600 HO Renegade/Renegade X, 2004 08- Rear Suspension Diagram

#

Description
Price

1

Runner 121

503190521

Unavailable

Runner 136 | GTX Sport

503190530

Unavailable

2

Runner Shoe

503190522

$29.49

Shoe Slider 121" | (Yellow(B-190)) / Adrenaline, Trail & X

503190524

Unavailable

Slide Shoe

605355362

$29.49

Shoe Slider 136", Yellow | Renegade X

503190533

Unavailable

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.87

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

570063000

Unavailable

10

Reinforcement Stopper

572084800

$12.99

11

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

12

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

13

Elastic Stop Nut M5

232551414

$0.87

14

Hex. Screw M8 X 80

207088044

$1.68

15

Wheel 135

503191029

$33.99

16

Ball Bearing

293350115

$12.11

17

WASHER - Call your local BRP dealership

503173700

Unavailable

18

Wheel 135, Yellow

503190785

$33.99

19

Ball Bearing

293350115

$12.11

20

SUPPORT - Call your local BRP dealership

503190389

Unavailable

21

Washer

503183100

$3.17

22

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Wheel Cap

570063600

$3.49

25

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

26

Hex. Screw M8 X 25

207182544

$0.90

27

Hex. Flange Elastic Nut M8

233281414

$1.47

28

Wheel Cap

570063600

$3.49

29

Spacer

503193250

$16.49

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

30

Tensioner

503192583

$8.29

Tensioner

503155300

Unavailable

31

Hex. Screw M6 X 30

207063044

$1.26

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

34

Elastic Locking Nut M10 X 1.5

233601416

$1.69

35

Wheel 180 Ass'y, Yellow | Includes 35 to 36

503190800

$51.99

36

Ball Bearing

293350115

$12.11

37

Rear Axle

503167900

$139.99

38

Hex. Screw With Nylon

250000019

$1.69

39

Washer

503183300

$5.82

40

Outer Spacer

503189809

$18.89

41

Inner Spacer

503182900

$12.58

42

Wheel 180

503190799

$51.99

43

Ball Bearing

293350115

$12.11

44

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

45

Washer

503180400

$3.49

46

Suspension Decal

516001248

Unavailable
