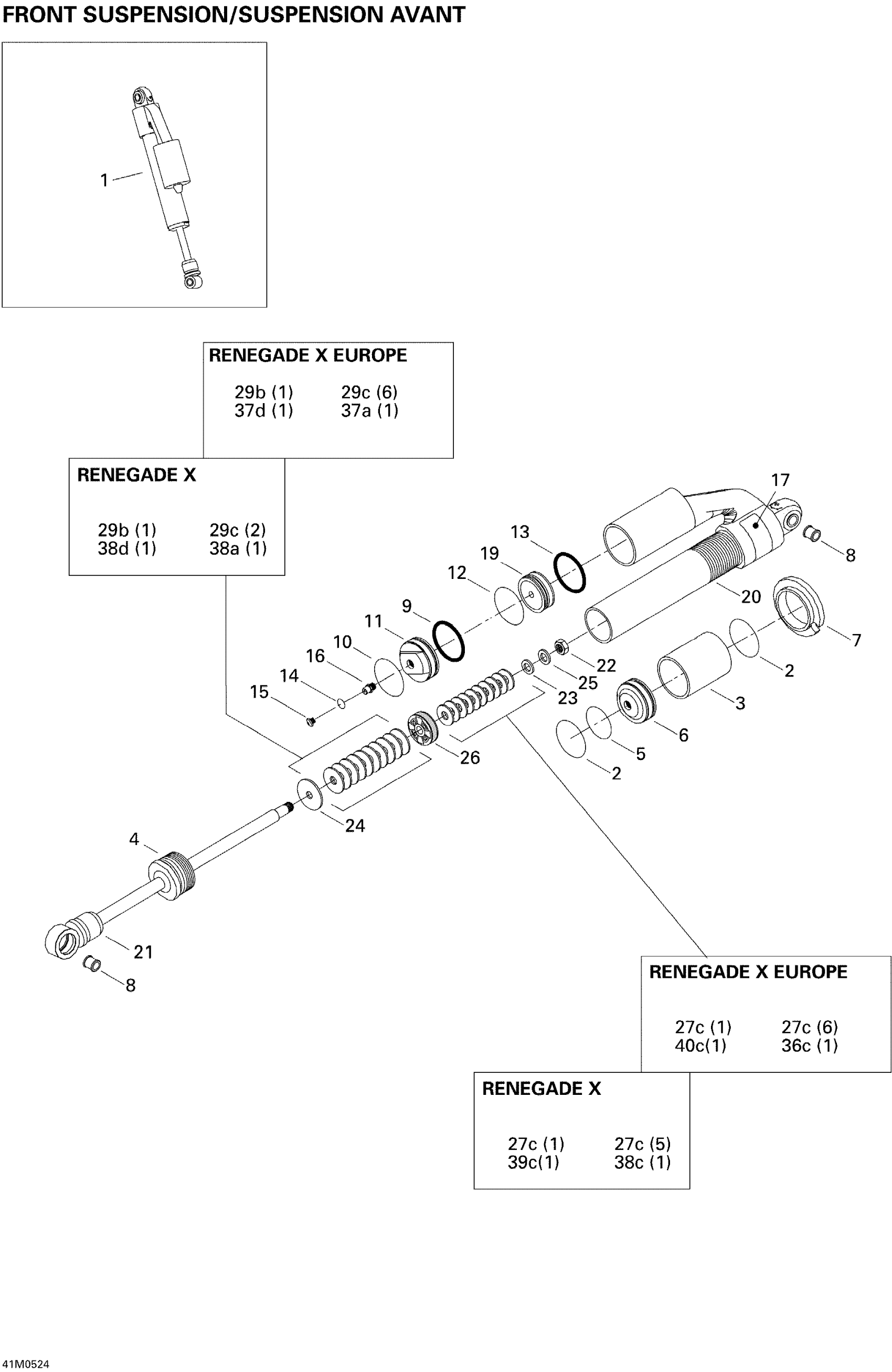

Ski-Doo MX Z 600 HO Renegade, 2005 07- Take Apart Shock, Front Diagram
#
1
RH FRONT SHOCK - Call your local BRP dealership | X
505071301
Unavailable
1
RH Front Shock | Adrenaline Europe, Trail Europe, X Europe
505071646
Unavailable
1
LH Front Shock | X
505071300
Unavailable
1
LH Front Shock | Adrenaline Europe, Trail Europe, X Europe
505071645
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
SPRING PLASTIC SEAT - Call your local BRP dealership
505071167
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
10
STOP RING - Call your local BRP dealership
415093805
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
19
FREE PISTON - Call your local BRP dealership
415093812
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
26
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
27a
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
27b
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
27c
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
27d
Not Available As Spare Part - Friction Washer
Unavailable
28a
Not Available As Spare Part - Friction Washer
Unavailable
28b
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
28c
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
28d
Not Available As Spare Part - Friction Washer
Unavailable
29a
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
29b
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
29c
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
29d
Not Available As Spare Part - Friction Washer
Unavailable
30a
Not Available As Spare Part - Friction Washer
Unavailable
30b
Not Available As Spare Part - Friction Washer
Unavailable
30c
Not Available As Spare Part - Friction Washer
Unavailable
30d
Not Available As Spare Part - Friction Washer
Unavailable
31a
Not Available As Spare Part - Friction Washer
Unavailable
31b
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
31c
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
31d
Not Available As Spare Part - Friction Washer
Unavailable
32a
Not Available As Spare Part - Friction Washer
Unavailable
32b
Not Available As Spare Part - Friction Washer
Unavailable
32c
Not Available As Spare Part - Friction Washer
Unavailable
32d
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
33a
Not Available As Spare Part - Friction Washer
Unavailable
33b
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
33c
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
33d
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
34a
Not Available As Spare Part - Friction Washer
Unavailable
34b
Not Available As Spare Part - Friction Washer
Unavailable
34c
Not Available As Spare Part - Friction Washer
Unavailable
34d
Not Available As Spare Part - Friction Washer
Unavailable
35a
Not Available As Spare Part - Friction Washer
Unavailable
35b
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
35c
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
35d
Not Available As Spare Part - Friction Washer
Unavailable
36a
Not Available As Spare Part - Friction Washer
Unavailable
36b
Not Available As Spare Part - Friction Washer
Unavailable
36c
Not Available As Spare Part - Friction Washer
Unavailable
36d
Not Available As Spare Part - Friction Washer
Unavailable
37a
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
37b
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
37c
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
37d
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
38a
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
38b
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
38c
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
38d
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
39a
Not Available As Spare Part - Friction Washer
Unavailable
39b
Not Available As Spare Part - Friction Washer
Unavailable
39c
Not Available As Spare Part - Friction Washer
Unavailable
39d
Not Available As Spare Part - Friction Washer
Unavailable
40a
Not Available As Spare Part - Friction Washer
Unavailable
40b
Not Available As Spare Part - Friction Washer
Unavailable
40c
Not Available As Spare Part - Friction Washer
Unavailable
40d
Not Available As Spare Part - Friction Washer
Unavailable
41a
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
41b
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
41c
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
41d
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
