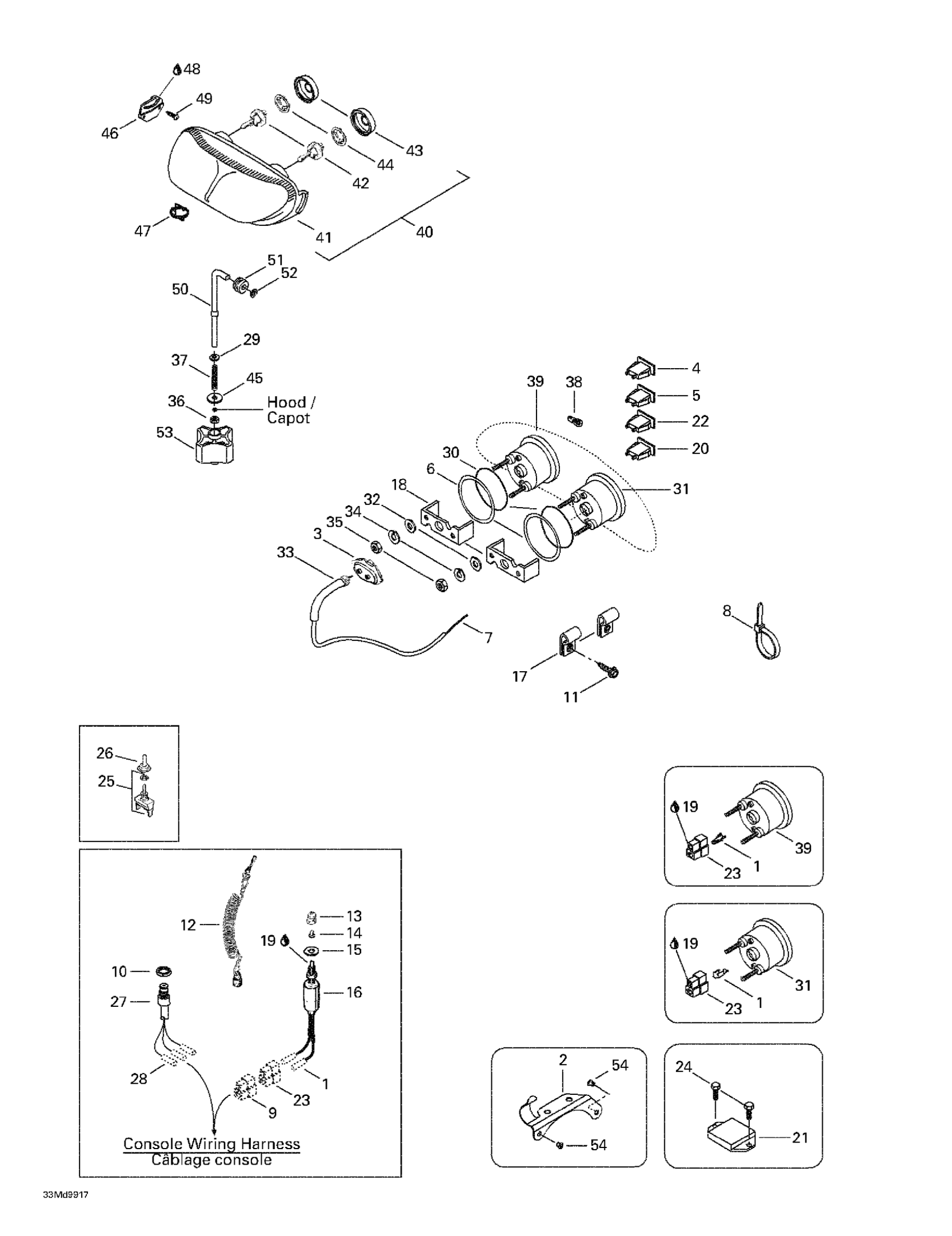

Ski-Doo MX Z 600, 1999 10- Electrical System Diagram

#

Description
Price

1

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

2

Cable Support

515175254

Unavailable

3

Drive Angle | Formula S.

572022300

Unavailable

4

Pilot Lamp (Blue)

410109600

Unavailable

5

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable

6

Washer

517258500

Unavailable

7

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

8

Tie Wrap 142 mm

293750002

$1.25

Tie-Rap 180 mm

414115200

$0.11

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

Tie-Rap 173 mm

293750009

$1.04

9

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

10

Safety Nut (DESS Switch)

278002963

$3.28

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Cap Ass'Y This part replaces 515176462.

515178292

$38.99

DESS

515178284

$84.99

13

Switch Nut

515145900

$12.12

14

Plunger Cap

570151100

$9.85

15

Flat Washer 10 mm

234001410

$1.26

16

Brake Switch

515175653

$19.49

17

Open Clamp

414176000

$1.99

18

Case Holder

414806500

Unavailable

19

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

20

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

21

Voltage Regulator

515175216

Unavailable

22

Pilot Lamp (Red)

410109500

Unavailable

23

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

24

Screw M6 x 16 | Formula Deluxe 380.

732600021

Unavailable

25

Switch (Heating Grip) | FREERIDE

410107300

$35.99

26

Switch Cover

515175281

$15.99

27

DESS SWITCH - Call your local BRP dealership

515175145

$71.99

28

Male Terminal

515175232

$1.58

29

Flat Washer 6 mm

234061410

$1.36

30

O-Ring

414807100

Unavailable

31

Speedometer (KMH)

415096300

Unavailable

Speedometer (MH)

415096400

Unavailable

32

Flat Washer

517225900

$0.18

33

Speedometer Cable

415101500

Unavailable

34

Lock Washer

414806700

Unavailable

35

Nut

414806900

Unavailable

36

Elastic Stop Nut M6

232561414

$0.55

37

SPRING - Call your local BRP dealership

415100600

Unavailable

38

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

39

Tachometer | MXZ X 440 LC.

415099100

Unavailable

Tachometer

415096500

Unavailable

40

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

43

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

44

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

47

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

48

Grease Tube Lmz, 400 G

413707500

Unavailable

49

Headlamp Screw

732601315

Unavailable

50

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

51

Grommet - Call your local BRP dealership

415100800

Unavailable

52

Push Nut

732610072

$2.19

53

Handle - Call your local BRP dealership

515175548

Unavailable

54

Pop Rivet 3/16"

390402200

$0.35

55

Not Available As Spare Part - Friction Washer

Unavailable

56

Console Harness (Not Shown)

515175147

Unavailable

57

Hood Harness (Not shown)

515175117

Unavailable
