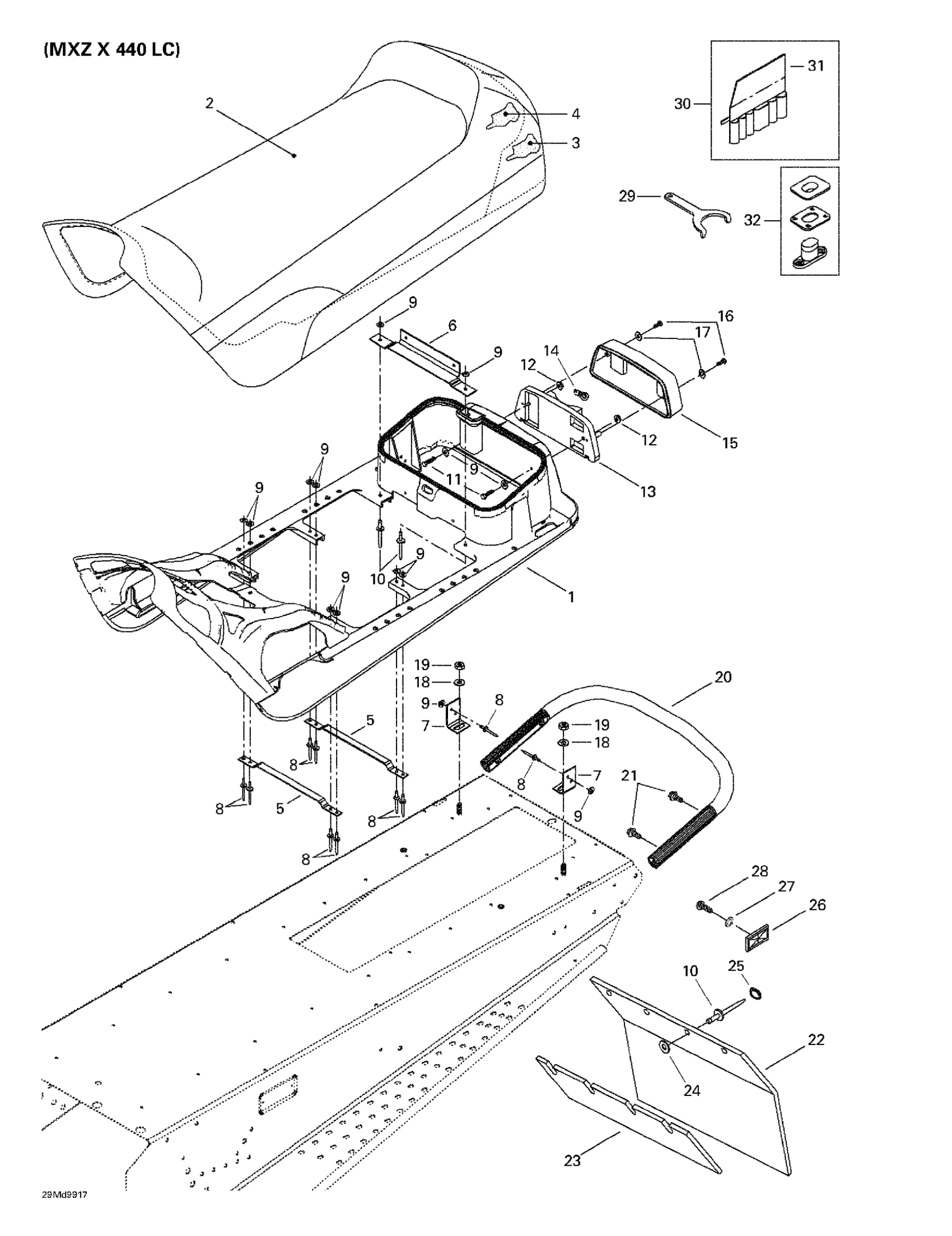

Ski-Doo MX Z 600, 1999 09- Seat And Accessories (MX Z X 440 LC) Diagram
#
Description
Price
1
Seat Base
510003633
Unavailable
2
Seat Cover | MXZ X 440 LC.
510003646
Unavailable
3
Seat Foam | MXZ X 440 LC.
510003634
Unavailable
4
Seat Foam | MXZ X 440 LC.
510003635
Unavailable
5
Front Reinforcement
510003630
Unavailable
6
Center Reinforcement
510003631
Unavailable
7
Reinforcement
510003632
Unavailable
9
WASHER - Call your local BRP dealership | MX Z X 600RS
517297900
Unavailable
11
SCREW-HEX.CAP DIN.931 - Call your local BRP dealership
222054065
Unavailable
13
LIGHT HOUSING - Call your local BRP dealership
510004061
Unavailable
17
Washer - Call your local BRP dealership
414516400
Unavailable
20
REAR BUMPER - Call your local BRP dealership
518318200
Unavailable
22
SNOW GUARD - Call your local BRP dealership
572092100
Unavailable
23
REINFORCEMENT - Call your local BRP dealership
572108200
Unavailable
25
Cap
415073300
Unavailable
26
REFLECTOR, RED - Call your local BRP dealership
414510100
Unavailable
REFLECTOR, AMBER - Call your local BRP dealership
414510200
Unavailable
27
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership
224151101
Unavailable
28
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208651041
Unavailable
29
ADJUSTMENT WRENCH - Call your local BRP dealership
529035582
Unavailable
31
Tool Bag
520000047
Unavailable
32
SEAT BUCKLE - Call your local BRP dealership
414728000
Unavailable
