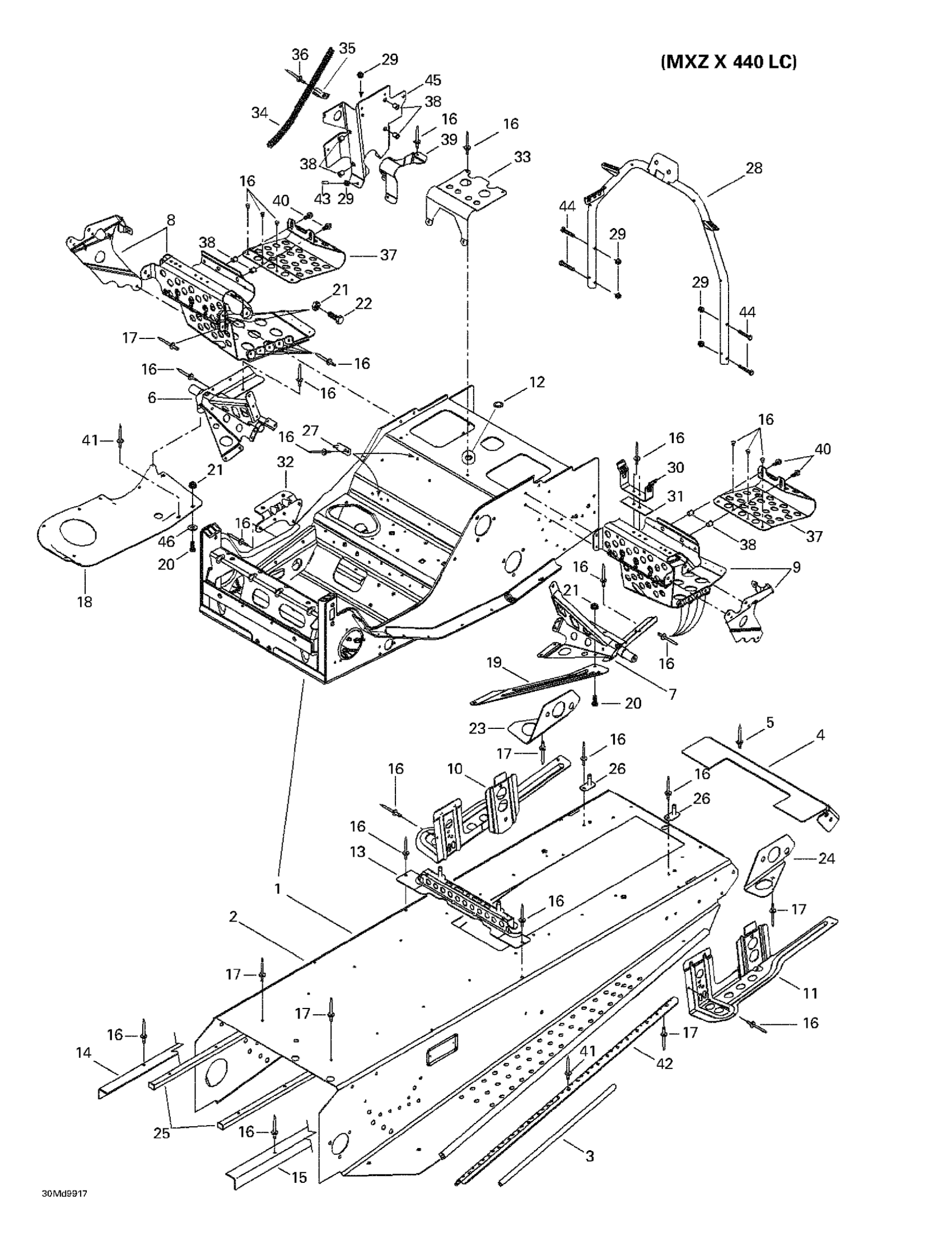

Ski-Doo MX Z 600, 1999 Frame And Accessories (MX Z X 440 LC) Diagram

#

Description
Price

1

frame | MXZ X 440 LC.

518321635

Unavailable

2

Tunnel | Includes 2 - 5. MXZ 600.

518321664

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

Rear Cap

518321620

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

RH Footrest Support

518320506

Unavailable

7

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

8

RH Footrest Ass'y | MXZ X 440 LC.

518321454

Unavailable

9

LH Footrest Ass'y | MXZ X 440 LC.

518321455

Unavailable

10

RH Slide Bracket

518319742

Unavailable

11

LH Slide Bracket

518319743

Unavailable

12

CAP - Call your local BRP dealership

414859400

Unavailable

13

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

14

RH Frame Reinforcement | MXZ X 440 LC.

518321674

Unavailable

15

LH Frame Reinforcement | MXZ X 440 LC.

518321675

Unavailable

16

Pop Rivet 3/16"

390402200

$0.35

17

Pop Rivet 3/16"

390402400

$0.35

18

RH Bottom Pan Plate | 600

518319760

Unavailable

19

LH Reinforcement. Plate

518316710

Unavailable

20

Hex. Screw M5 X 20

207152044

$0.90

21

Hex. Flange Elastic Nut M5

233251414

$1.04

22

Forming Screw M5 x 16

250000676

$1.01

23

RH Rear Reinforcement

518321472

Unavailable

24

LH Rear Reinforcement

518321473

Unavailable

25

Frame Protector

518321609

Unavailable

26

Guide

518319730

Unavailable

27

Double Bracket

518319728

Unavailable

28

Handle Support | MXZ 600.

518319710

Unavailable

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

Belt Guard Bracket

518202100

$17.49

31

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

32

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

33

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

34

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

35

Open Clamp

518321570

$7.69

36

Pop Rivet 3/16"

390406500

$0.88

37

Toe Hold

518321602

Unavailable

38

Insert

293450275

$12.99

39

Hose Support

518319762

Unavailable

40

Hex. Flange Screw M6 X 16

207661644

$0.74

41

Pop Rivet 3/16"

390402300

$0.75

42

Strip

518321627

Unavailable

43

Short Cap

293000025

Unavailable

44

Hex. Flange Screw M6 X 35

207663544

$0.90

45

Electronic Module Support | MXZ X 440 LC.

518321678

Unavailable

46

Flat Washer

517225900

$0.18
