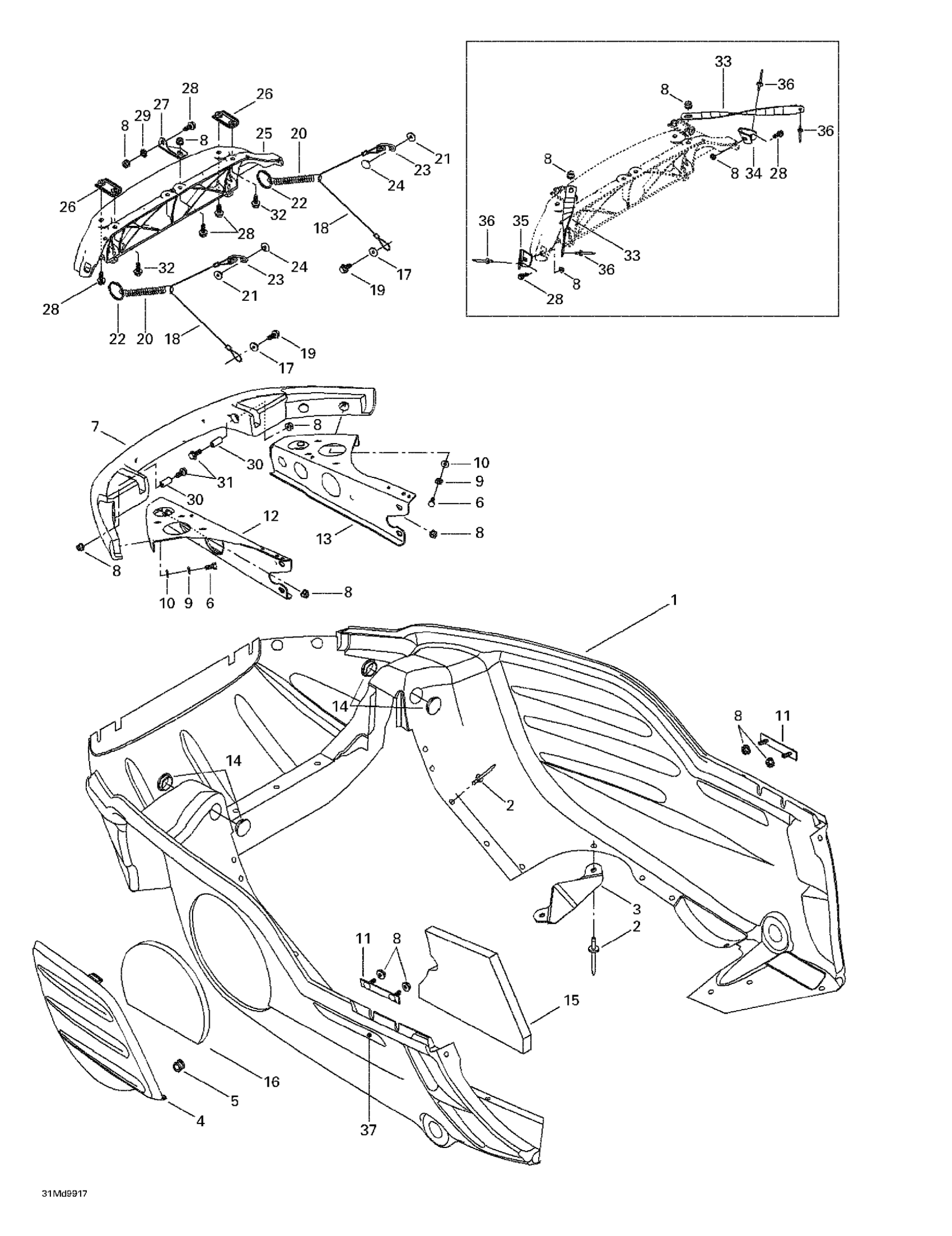

Ski-Doo MX Z 600, 1999 09- Bottom Pan Diagram

#

Description
Price

1

Bottom Pan (Yellow)

572110100

Unavailable

2

Pop Rivet 3/16"

390906800

$0.93

3

Snow Deflector

502006563

Unavailable

4

Bottom Pan Door | B-190 YELLOW

502006511

Unavailable

5

Grommet

414036300

$2.79

6

Hex. Screw M6 X 14

207161444

$0.58

7

Bumper

502006535

Unavailable

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Lock Washer M6, Black

234161471

$0.53

10

Flat Washer

224061121

$0.53

11

Bracket

502006500

Unavailable

12

LH Support

502006503

Unavailable

13

RH Support

502006502

Unavailable

14

Black, Nylon Cap

414916600

$4.69

15

Bottom Foam

502006558

Unavailable

16

Bottom Pan Door Foam

502006559

Unavailable

17

Washer | DS 650 X

391301600

$0.48

18

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Spring

415043300

Unavailable

21

Washer

517124300

$0.19

22

RING - Call your local BRP dealership

415058300

Unavailable

23

Bracket

517262800

Unavailable

24

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

25

Hinge

517302631

$48.99

26

HINGE SIDE PLATE - Call your local BRP dealership

517302176

Unavailable

27

Hinge Center Plate

517302045

Unavailable

28

Hex. Flange Screw M6 X 16

207661654

$2.11

29

Lock Washer Serrated M6

250200041

$1.15

30

BUSHING - Call your local BRP dealership

517302179

Unavailable

31

Hex. Flange Screw M6 X 35

207663544

$0.90

32

Hex. Flange Screw M6 X 25

207662544

$0.64

33

Hood Clamp

517302256

Unavailable

34

RH Corner Support

517302254

Unavailable

35

LH Corner Support

517302255

Unavailable

36

Pop Rivet 3/16"

390406500

$0.88

37

Decal - RH Reflector

415064400

Unavailable

Decal - LH Reflector

415064401

Unavailable
