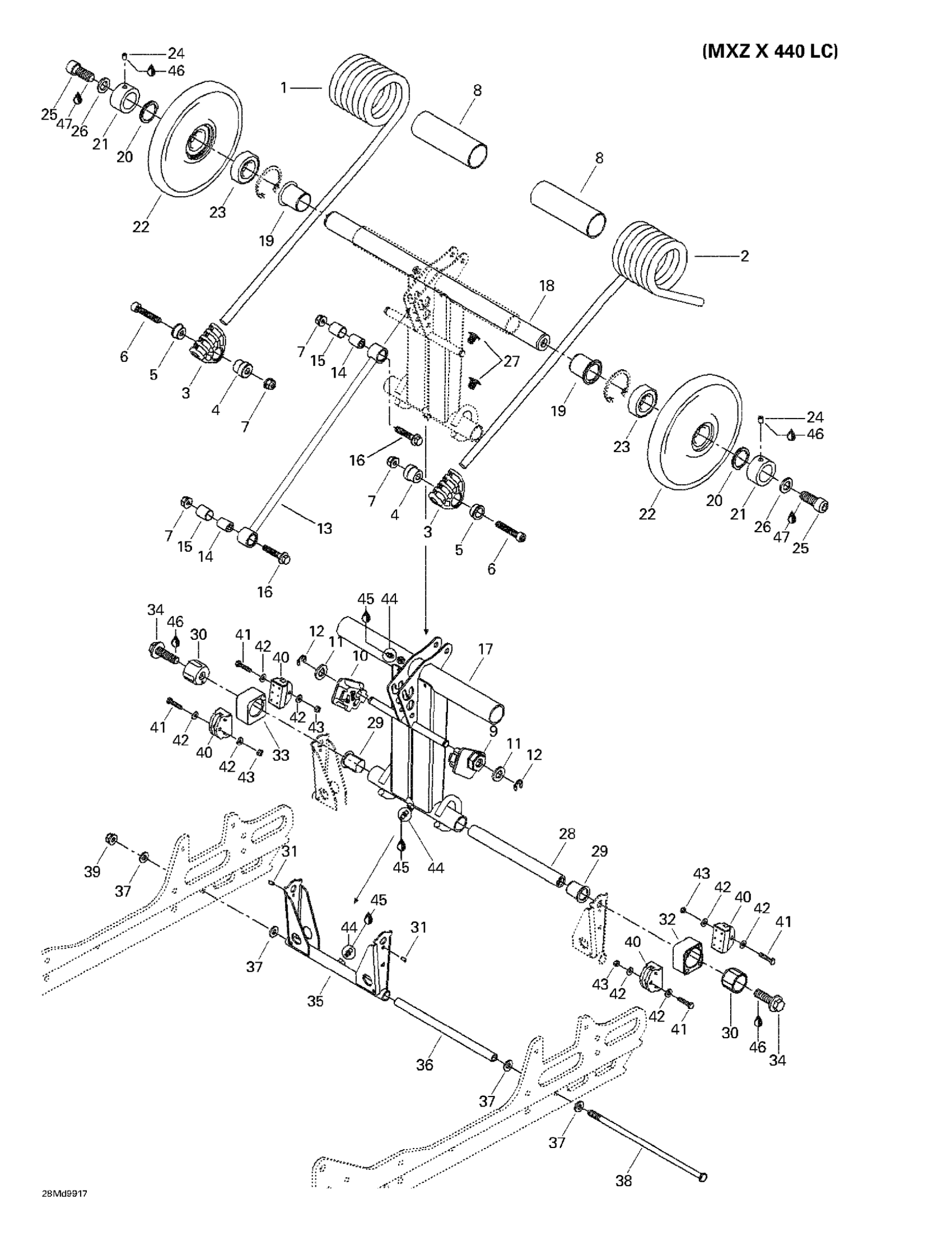

Ski-Doo MX Z 600, 1999 08- Rear Arm, Rear Suspension (MX Z X 440 LC) Diagram
#
Description
Price
1
RH Spring | MXZ X 440 LC.
503189080
Unavailable
2
LH Spring | MXZ X 440 LC.
503189083
Unavailable
4
SPRING GUIDE AXLE - Call your local BRP dealership
503189232
Unavailable
5
Retainer Cushion
503189231
Unavailable
8
PLASTIC BUSHING - Call your local BRP dealership
503189105
Unavailable
9
LH Cam Adjuster | MXZ X 440 LC.
503189194
Unavailable
10
RH Cam Adjuster | MXZ X 440 LC.
503189193
Unavailable
12
Circlip | MXZ X 440 LC.
371907700
Unavailable
13
Throttle Rod | MXZ X 440 LC.
503189129
Unavailable
14
BUSHING - Call your local BRP dealership
503189133
Unavailable
15
Cushion
503189266
Unavailable
17
Rear Arm | MXZ X 440 LC.
503189135
Unavailable
18
Rear Arm Axle
503189143
Unavailable
19
Cushion | MXZ X 440 LC.
503189145
Unavailable
21
Retainer Ring
503189147
Unavailable
22
Wheel 165 Ass'y | Includes 25 - 26.
503189187
Unavailable
25
Socket Head Screw M12 x 35
205023544
Unavailable
28
Rear Lower Axle | MXZ X 440 LC.
503189149
Unavailable
31
Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership
250400005
Unavailable
32
LH Block
503189152
Unavailable
33
RH Block
503189170
Unavailable
34
Hex. Flange Screw M12 x 40 | MXZ X 440 LC.
207624086
Unavailable
35
Pivot Arm | MXZ X 440 LC.
503189153
Unavailable
40
Block Stopper | MXZ X 440 LC.
503189158
Unavailable
41
SCREW-HEX.CAP DIN.933 - Call your local BRP dealership
222052565
Unavailable
42
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
45
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
