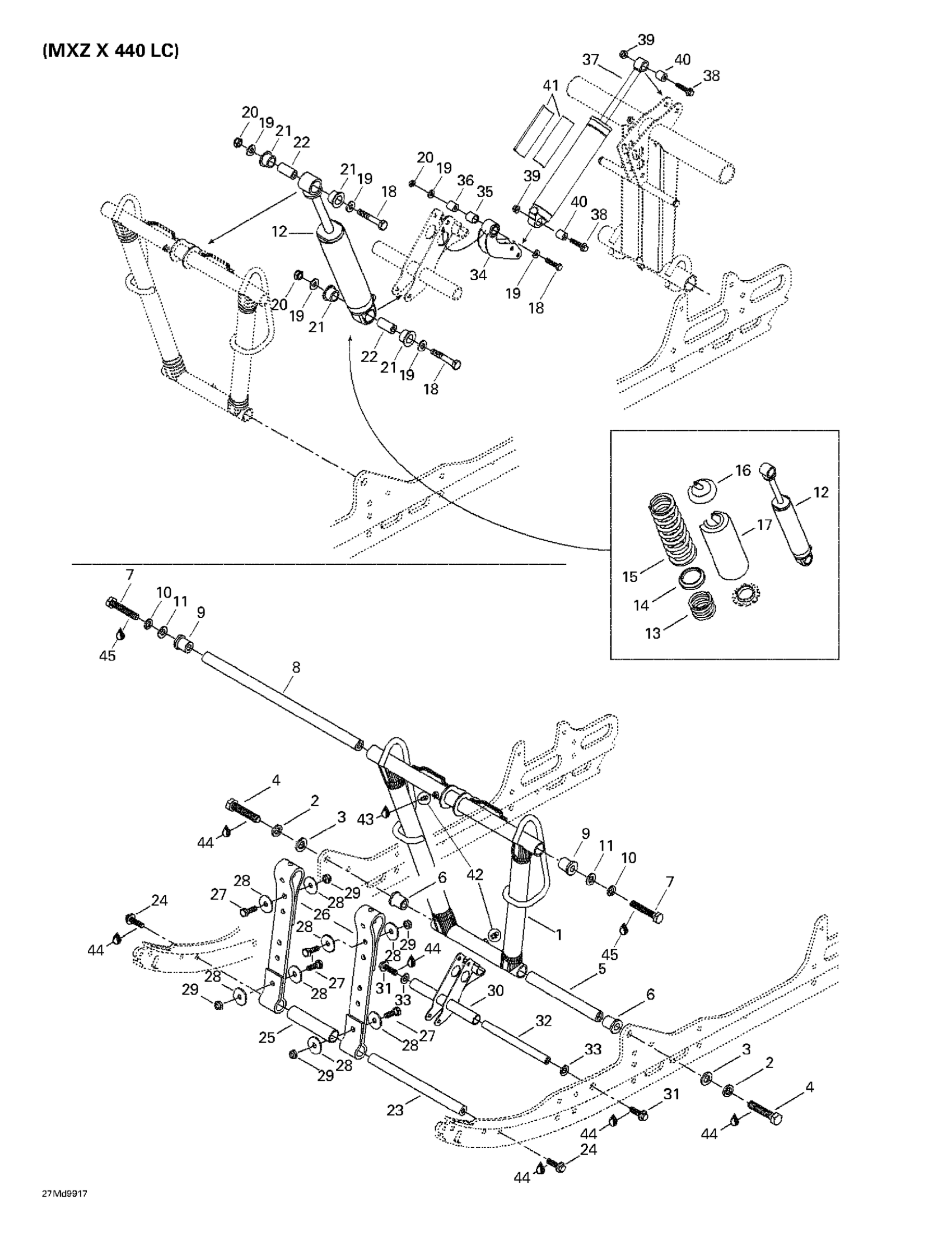

Ski-Doo MX Z 600, 1999 08- Front Arm, Rear Suspension (MX Z X 440 LC) Diagram
#
Description
Price
1
Front Arm | MXZ X 440 LC.
503189245
Unavailable
2
Lock Washer 12 mm
224721218
Unavailable
4
HEX. SCREW M12 X 60 - Call your local BRP dealership
207026044
Unavailable
5
Shaft
503182000
Unavailable
6
Cushion
503188940
Unavailable
7
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
8
SHAFT - Call your local BRP dealership
503190387
Unavailable
12
Take Apart Shock | MXZ 600. (Rear Suspension - Central Shock)
503189078
Unavailable
13
Spring
415090500
Unavailable
14
Spring Spacer
503182200
Unavailable
15
Spring (EUROPE)
503189090
Unavailable
18
Hex. Screw M8 x 50 | MXZ X 440 LC.
207085086
Unavailable
20
Elastic Stop Nut M8 | MXZ X 440 LC.
232581416
Unavailable
22
Bushing | MXZ X 440 LC.
503189118
Unavailable
26
Stopper Strap
570069300
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
30
Shock Support | MXZ X 440 LC.
503189119
Unavailable
31
Hex. Flange Screw M12 x 40 | MXZ X 440 LC.
207624086
Unavailable
32
Lower Axle
503174800
Unavailable
33
Hardened Washer
503175400
Unavailable
34
Rocker | MXZ X 440 LC.
503189123
Unavailable
35
Bushing | MXZ X 440 LC.
503189118
Unavailable
36
Cushion | MXZ X 440 LC.
503189128
Unavailable
37
Rear Shock | MXZ X 440 LC.
503189079
Unavailable
41
Shock Decal
516000183
Unavailable
43
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
