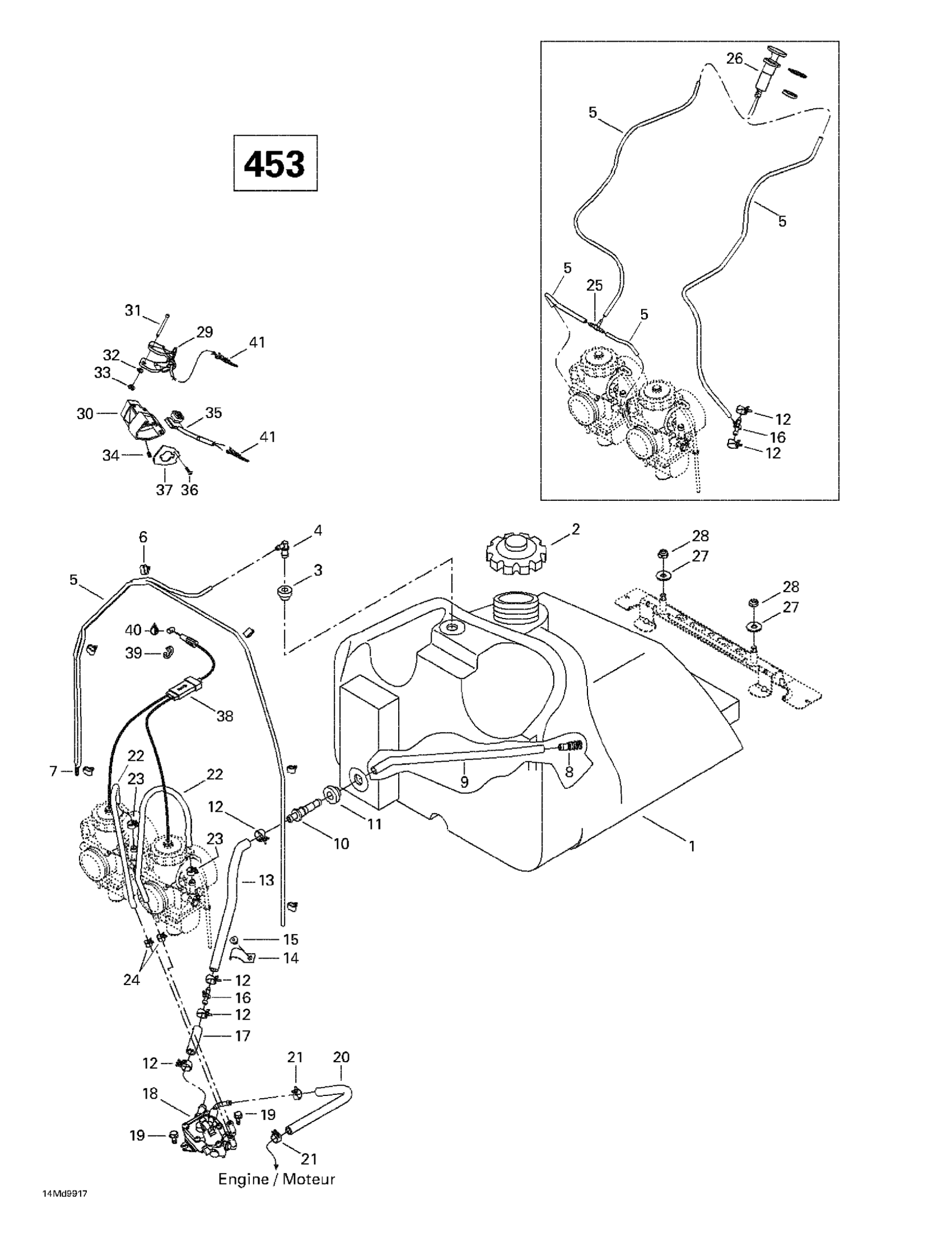

Ski-Doo MX Z 600, 1999 02- Fuel System (453) Diagram

#

Description
Price

1

Fuel Tank | MXZ X 440 LC.

513032958

Unavailable

2

Fuel Tank Cap | MXZ X 440 LC.

415065800

Unavailable

3

Grommet

513032908

$10.49

4

Male Connector

414814100

$2.22

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

6

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

7

SPRING - Call your local BRP dealership

414818200

Unavailable

8

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

9

Hose

415005700

$11.58

10

Male Connector

414872700

$1.90

11

Grommet | Europe

707800347

$10.49

12

Spring Clamp

414655700

$0.72

13

Formed Hose

513032956

Unavailable

14

CLIP - Call your local BRP dealership

415018200

Unavailable

15

Pop Rivet 3/16"

390406500

$0.88

16

T-Fitting

415119300

$3.17

17

Formed Hose

513032957

Unavailable

18

Fuel Pump | MX-Z 500.

403901800

Unavailable

19

Hex. Screw M6 x 12

732601120

Unavailable

20

Hose

219704549

$50.99

21

Spring Clamp

414415200

$0.88

22

Polyurethane Hose 10000Mm Long

219704410

$56.99

23

Spring Clamp

414554800

$0.88

24

Spring Clamp

414420700

$0.72

25

T-Fitting

414222400

$1.69

26

Primer

415060500

$34.99

27

Flat Washer 8 mm

234082410

$1.47

28

Hex. Elastic Stop Nut M8

232581414

$0.56

29

Handle Ass'y

512060214

$124.99

30

Throttle Housing

512060603

$12.49

31

Lever Pin

414438700

$11.64

32

Flat Washer M5, Stainless

234051600

$0.77

33

Circlip | Model-RS

414439000

$4.23

34

Socket Set Screw M8 X 10

414440800

$4.12

35

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

36

Screw

414473200

Unavailable

37

Plate

512060390

$10.33

38

Throttle Cable

512058901

Unavailable

39

Circlip

414274500

$0.90

40

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

41

Male Terminal

515175232

$1.58
