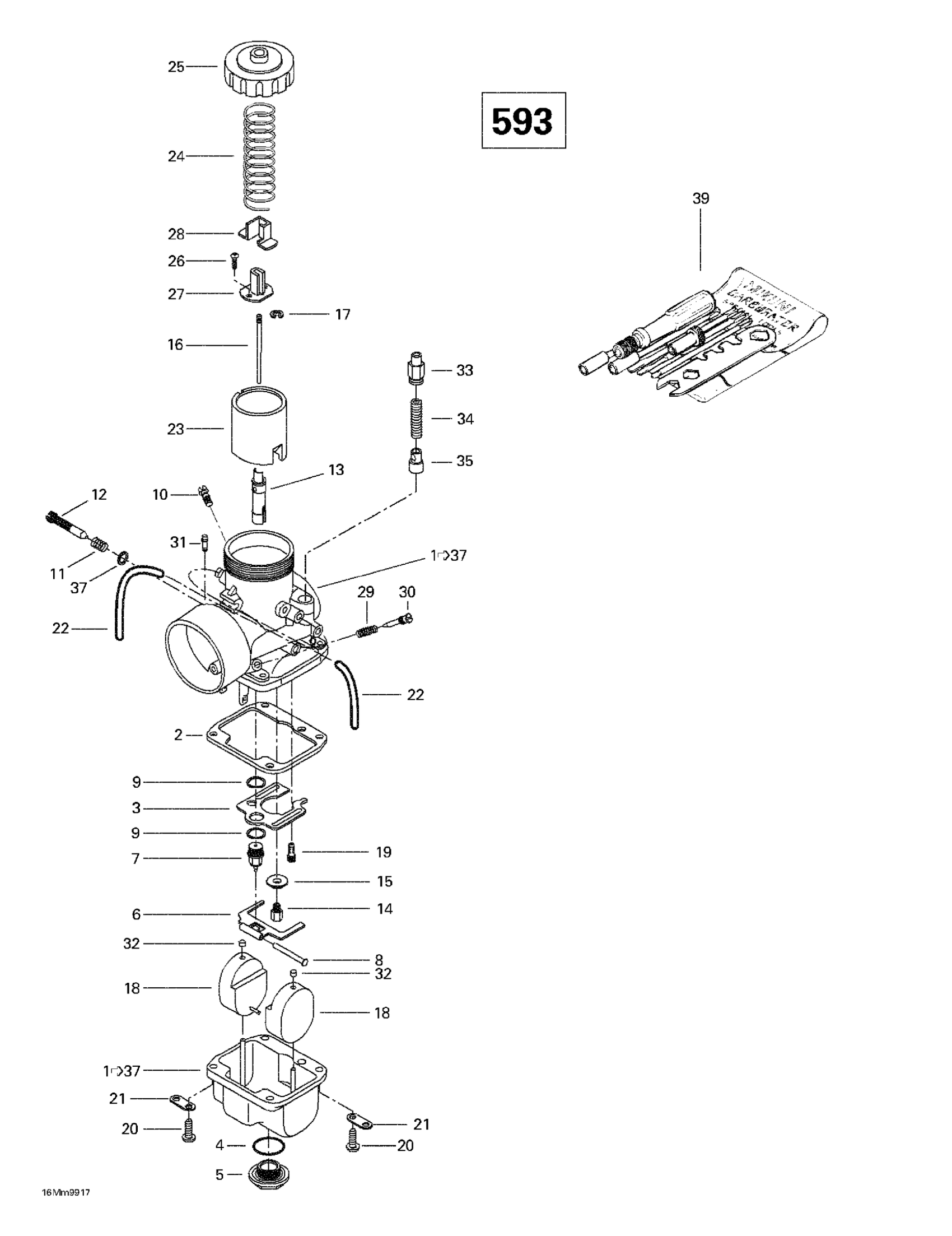

Ski-Doo MX Z 600, 1999 02- Carburetors (593) Diagram
#
Description
Price
1
Carburetor VM40 107 | MXZ 600.
403138200
Unavailable
2
GASKET - Call your local BRP dealership
404104700
Unavailable
3
Baffle
404112700
Unavailable
4
Washer | Formula Deluxe 500.
404112800
Unavailable
5
Drain Plug Screw | Formula Deluxe 500.
404112900
Unavailable
6
Float Lever | Formula Deluxe 500.
404161823
Unavailable
12
THROTTLE SCREW - Call your local BRP dealership
404125200
Unavailable
13
Needle Jet 224-Z-9 | Formula Deluxe 600.
404153800
Unavailable
15
Washer
404116700
Unavailable
16
Needle J8-7DFY01 | Formula Deluxe 600.
404161847
Unavailable
18
FLOAT - Call your local BRP dealership
404105400
Unavailable
19
Pilot Jet PJ 37.5 | Formula Deluxe 600.
404161846
Unavailable
21
PLATE - Call your local BRP dealership
404103000
Unavailable
22
Air Vent Tube
404161802
Unavailable
23
Piston Valve CA 2.5
404132300
Unavailable
24
Spring
404156500
Unavailable
25
Cover
404126800
Unavailable
27
CONNECTOR - Call your local BRP dealership
404160800
Unavailable
28
Cover
404128100
Unavailable
29
SPRING - Call your local BRP dealership
404139800
Unavailable
30
AIR SCREW - Call your local BRP dealership
404149000
Unavailable
31
Filter | Formula Deluxe 380.
404158900
Unavailable
33
GUIDE HOLDER - Call your local BRP dealership | MAG Side
404161100
Unavailable
34
Spring | Formula Deluxe 500.
404161844
Unavailable
36
CAP - Call your local BRP dealership
404154900
Unavailable
37
Washer
270500018
Unavailable
38
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
