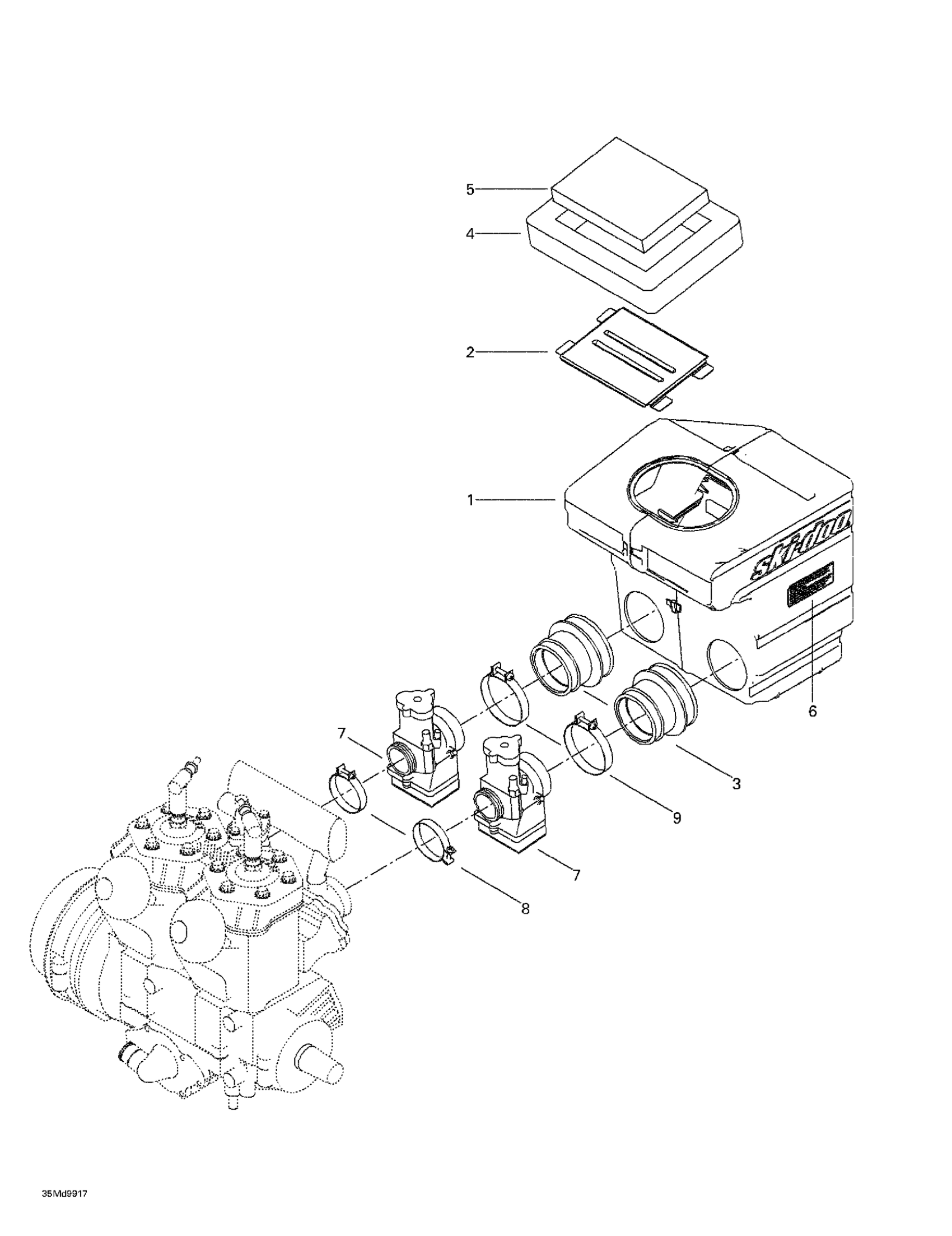

Ski-Doo MX Z 600, 1999 Air Intake System Diagram

#

Description
Price

1

Air Intake Ass'y | Includes 1 - 6. MXZ X 440 LC.

508000000

Unavailable

Air Intake Ass'y | MXZ 600.

508000001

Unavailable

2

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

3

Air Intake Adaptor (34 mm)

508000006

Unavailable

Air Intake Adaptor (40 mm)

570068900

Unavailable

4

Lower Foam

415103100

Unavailable

5

Air Filter

508000154

$23.49

6

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

7

Carburetor TMX 34-1 | MXZ X 440 LC.

403138000

Unavailable

Carburetor VM40 107 | MXZ 600.

403138200

Unavailable

8

GEMI CLAMP - Call your local BRP dealership

512059005

Unavailable

Gemi Clamp

293650158

$8.57

9

GEMI CLAMP - Call your local BRP dealership | 800RE

508000007

Unavailable

Clamp

508000009

Unavailable
