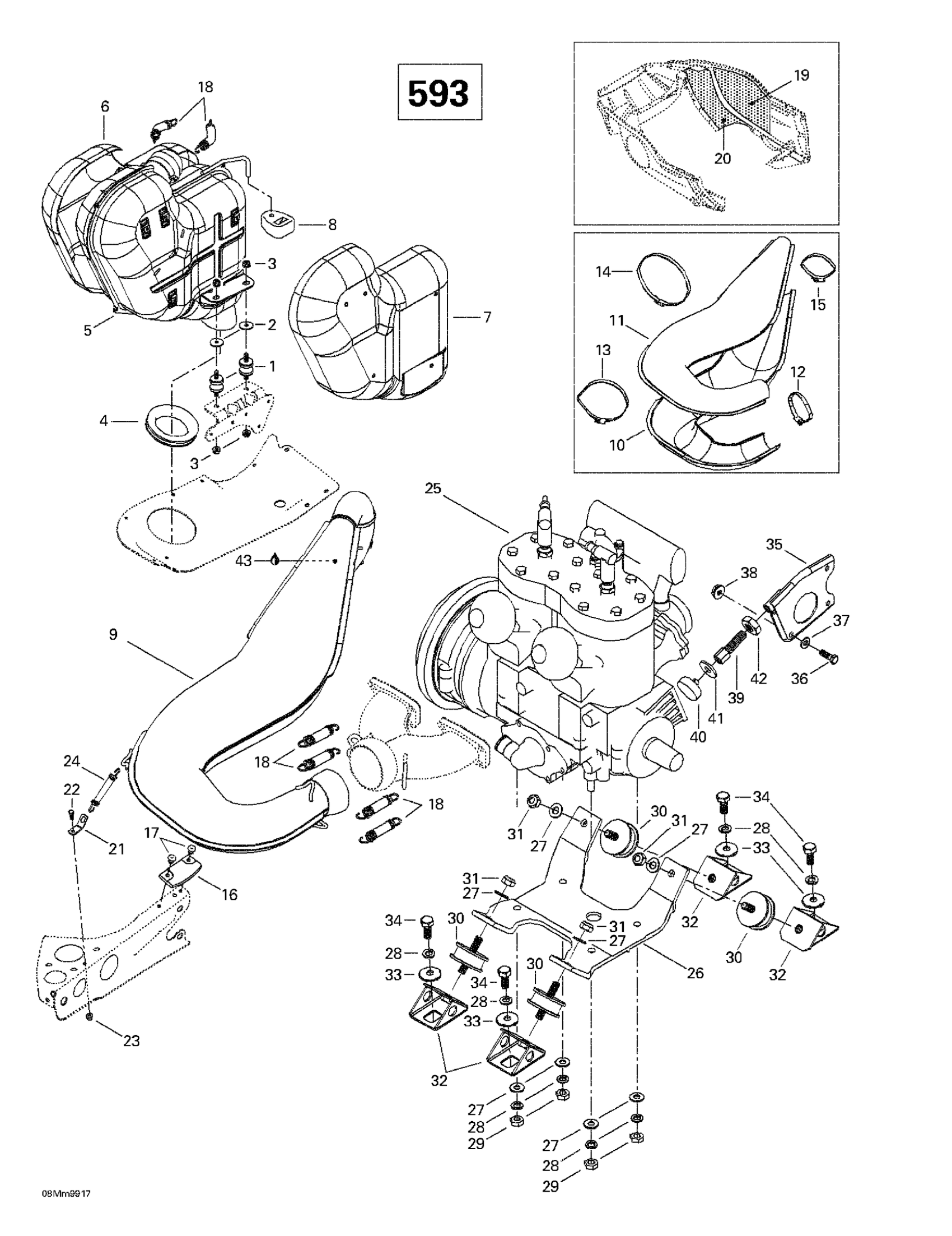

Ski-Doo MX Z 600, 1999 01- Engine Support And Muffler (593) Diagram

#

Description
Price

1

RUBBER MOUNT - Call your local BRP dealership | MXZ X 440 LC.

514052889

Unavailable

2

Insulated Washer

514052891

Unavailable

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

5

Muffler Ass'y | Includes 5 - 8. Formula Deluxe 600.

514052724

Unavailable

6

RH Heat Shield

514052732

Unavailable

7

LH Heat Shield | 600

514052733

Unavailable

8

RUBBER BUMPER - Call your local BRP dealership

514052704

Unavailable

9

Tuned Pipe Ass'y | Includes 9 - 15. MXZ 600.

514052706

Unavailable

10

Lower Enveloppe

514052984

Unavailable

11

Upper Enveloppe

514052714

Unavailable

12

Norma Clamp

514052860

Unavailable

13

Norma Gear Clamp | Grand Touring 500.

514052962

Unavailable

14

Norma Gear Clamp

514052735

Unavailable

15

Norma Gear Clamp

293650118

$13.16

16

Rubber Pad

570044100

Unavailable

17

Pop Rivet 3/16"

390406500

$0.88

18

Spring

415107100

$6.35

19

Reflective Sheet

514052718

Unavailable

20

Reflective Sheet

514052719

Unavailable

21

Spring Bracket

514054522

$8.45

22

Hex. Screw M5 X 12

207151244

$0.90

23

Hex. Flange Elastic Nut M5

233251414

$1.04

24

SPRING - Call your local BRP dealership

517182100

Unavailable

25

<<593>> Engine | MXZ 600.

400509700

Unavailable

26

Engine Support

512058000

Unavailable

27

Flat Washer 10 mm

234001410

$1.26

28

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

29

Hex. Nut M10 X 1.5

232006414

$1.37

30

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

31

Elastic Locking Nut M10 X 1.5

233601416

$1.69

32

Engine Support

512050900

Unavailable

33

Lock Washer

512056700

$3.17

34

Hex. Screw M10 X 25

207102544

$1.37

35

Support Plate

512058500

Unavailable

36

Hex. Screw M8 X 20

207182044

$0.74

37

Flat Washer 8 mm

234081410

$0.83

38

Hex. Elastic Stop Nut M8

232581414

$0.56

39

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

40

Stopper

512059056

Unavailable

41

WASHER - Call your local BRP dealership

512059057

Unavailable

42

Nut Hexagonal RH.

232026414

$1.48

43

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99
