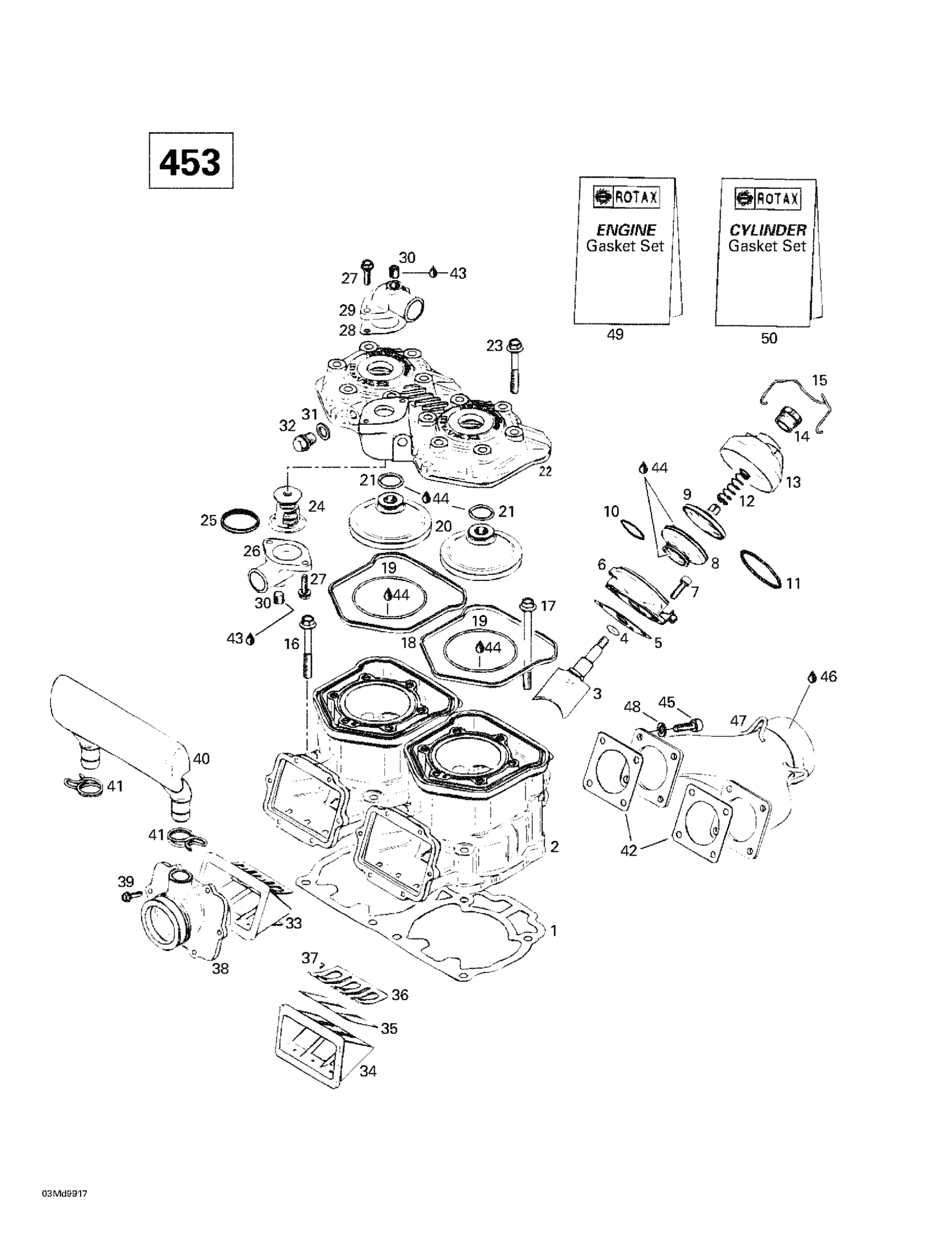

Ski-Doo MX Z 600, 1999 01- Cylinder, Exhaust Manifold (453) Diagram

#

Description
Price

1

Gasket 0.8 mm

420431423

$25.99

Gasket 0.5 mm

420431420

$23.99

Gasket 0.6 mm

420431421

$20.49

GASKET 0.4 MM - Call your local BRP dealership

420931581

Unavailable

DOUBLE GASKET 0.3 MM - Call your local BRP dealership

420931580

Unavailable

2

NICASIL CYLINDER - Call your local BRP dealership

420923720

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854480

Unavailable

4

O-Ring

420430110

$4.44

5

Gasket

420250239

$7.37

6

Valve Housing | Grand Touring 600.

420854265

Unavailable

7

Socket Head Screw M6 X 20

205062044

$1.26

8

Exhaust Bellows

420260723

$42.49

9

Exhaust Valve This part replaces 290253257.

420854449

$35.99

10

Hose Spring This part replaces 420838253.

420838255

$7.41

11

Hose Spring This part replaces 420239048.

420939281

$7.41

12

Spring

420239945

Unavailable

13

Valve Cover

420911552

$38.99

14

Adjuster Screw

420241221

$14.22

15

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

16

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$7.65

17

Hex. Screw M8 x 100 | Formula Deluxe 670.

420940126

Unavailable

18

SQUARE RING - Call your local BRP dealership

420931595

Unavailable

19

O-Ring

420950490

$14.28

20

Combustion Chamber Insert | MXZ X 440 LC.

420923870

Unavailable

COMBUSTION CHAMBER - Call your local BRP dealership

420923875

Unavailable

21

O-Ring

420430373

$3.17

22

Cylinder Head Cover (Yellow) | MXZ X 440 LC.

420923730

Unavailable

23

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

24

Thermostat This part replaces 414834100.

420922519

$63.99

25

SEALING RING - Call your local BRP dealership

420931270

Unavailable

26

BENT OUTLET SOCKET - Call your local BRP dealership

420922061

Unavailable

27

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

28

Gasket

420850338

$11.60

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

30

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

31

Aluminum Sealing Ring

420250016

$5.39

32

Plug screw

420841924

$14.28

33

Reed Valve Ass'y | Includes 33 - 37.

420924640

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Reed Pedal

420924630

Unavailable

36

Reed Pedal Stop

420924635

Unavailable

37

Phillips Screw M3 X 5

420941215

$1.69

38

Carburetor Socket

420867865

Unavailable

39

Taptite Screw M5 X 16

420941928

Unavailable

40

Intake Resonator

420867815

Unavailable

41

CLAMP - Call your local BRP dealership

420851440

Unavailable

42

Gasket

420850552

$8.85

43

Loctite 243, 10 ml

293800060

$21.49

44

Dow Corning 111, 150 g

413707000

$59.99

45

Socket Head Screw M6 X 20

205062044

$1.26

46

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

47

Exhaust Manifold

420973550

Unavailable

48

Lock Washer M6, Black

234161471

$0.53

49

Engine Gasket Set | MXZ X 440 LC.

420888630

Unavailable

50

Cylinder Gasket Set

420888635

Unavailable
