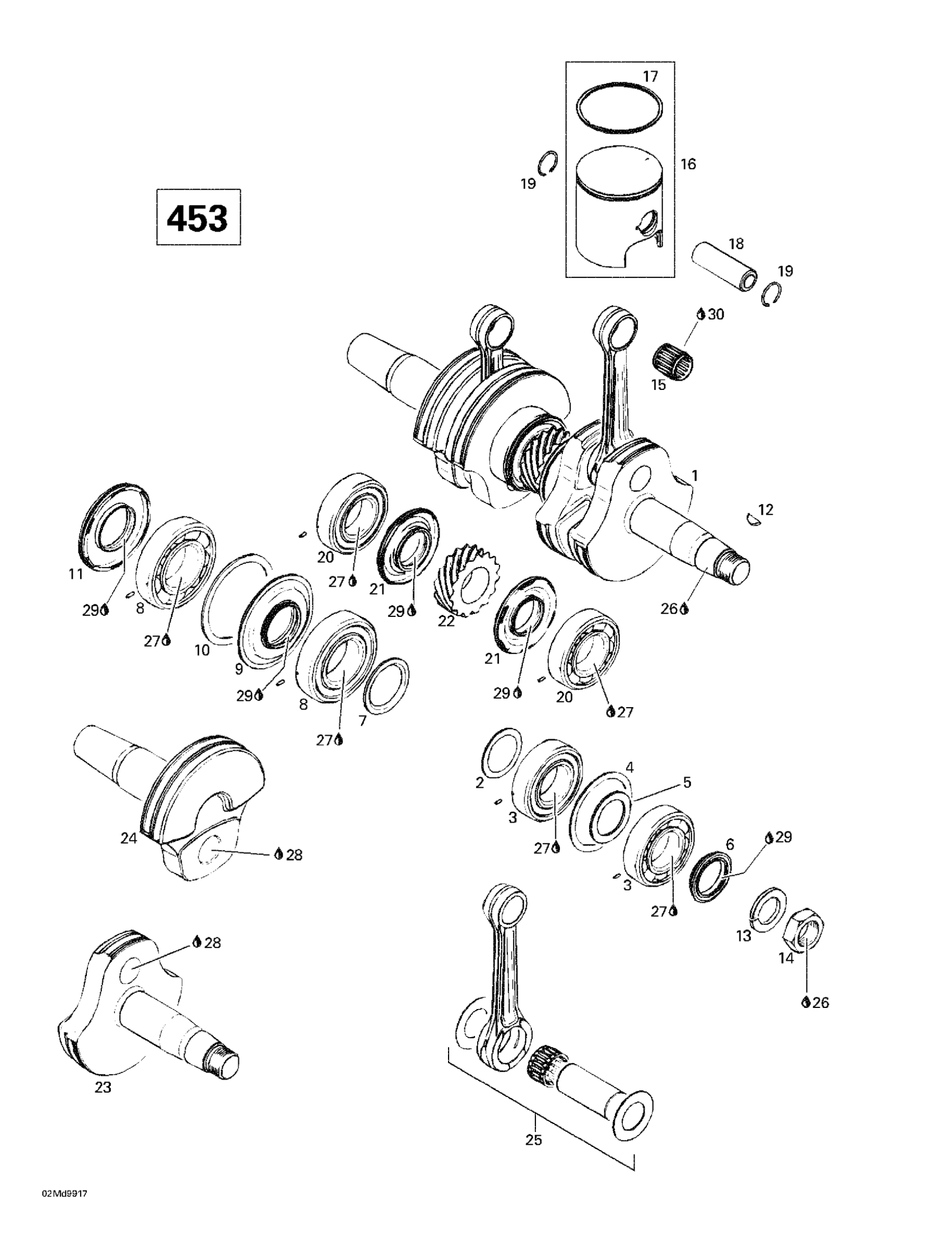

Ski-Doo MX Z 600, 1999 01- Crankshaft And Pistons (453) Diagram

Crankshaft Ass'y | Includes 1 - 12. MXZ X 440 LC.

420888255

Unavailable

DISTANCE RING - Call your local BRP dealership

420827445

Unavailable

Ball Bearing 6206

420832590

$48.49

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

ADJUSTMENT WASHER - Call your local BRP dealership

420427684

Unavailable

Oil Seal

420931795

$17.63

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

Ball Bearing 6207 | With drive pin

420832575

$52.99

OIL SEAL - Call your local BRP dealership | Summit 700 (CDN).

420931450

Unavailable

Retaining Disk

420927710

$7.41

Oil Seal This part replaces 290831952.

420831952

$18.01

Woodruff Key

420246015

$3.17

Lock Washer, 22 mm

420945759

$1.90

Hex. Nut, M22 X 1.5

420842239

$17.53

Needle Bearing

420832439

Unavailable

Piston Ass'y (1 Ring 64,88 mm) | Includes 16 - 17.

420888331

Unavailable

SEMI-TRAPEZ RING - Call your local BRP dealership

420815145

Unavailable

PISTON PIN - Call your local BRP dealership

420916136

Unavailable

Piston Circlip

420945735

$4.46

Ball Bearing 6206

420832590

$48.49

Oil Seal

420831990

$20.49

Central Gear, 15 Teeth

420834350

$104.99

CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.

420818665

Unavailable

CRANKSHAFT, MAG - Call your local BRP dealership

420818694

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Loctite 243, 10 ml

293800060

$21.49

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

Sealant Loctite 648

219703000

$45.99

Petamo Grease, GHY133N, 400 g

420899271

$67.99

Dow Corning 111, 150 g

413707000

$59.99
