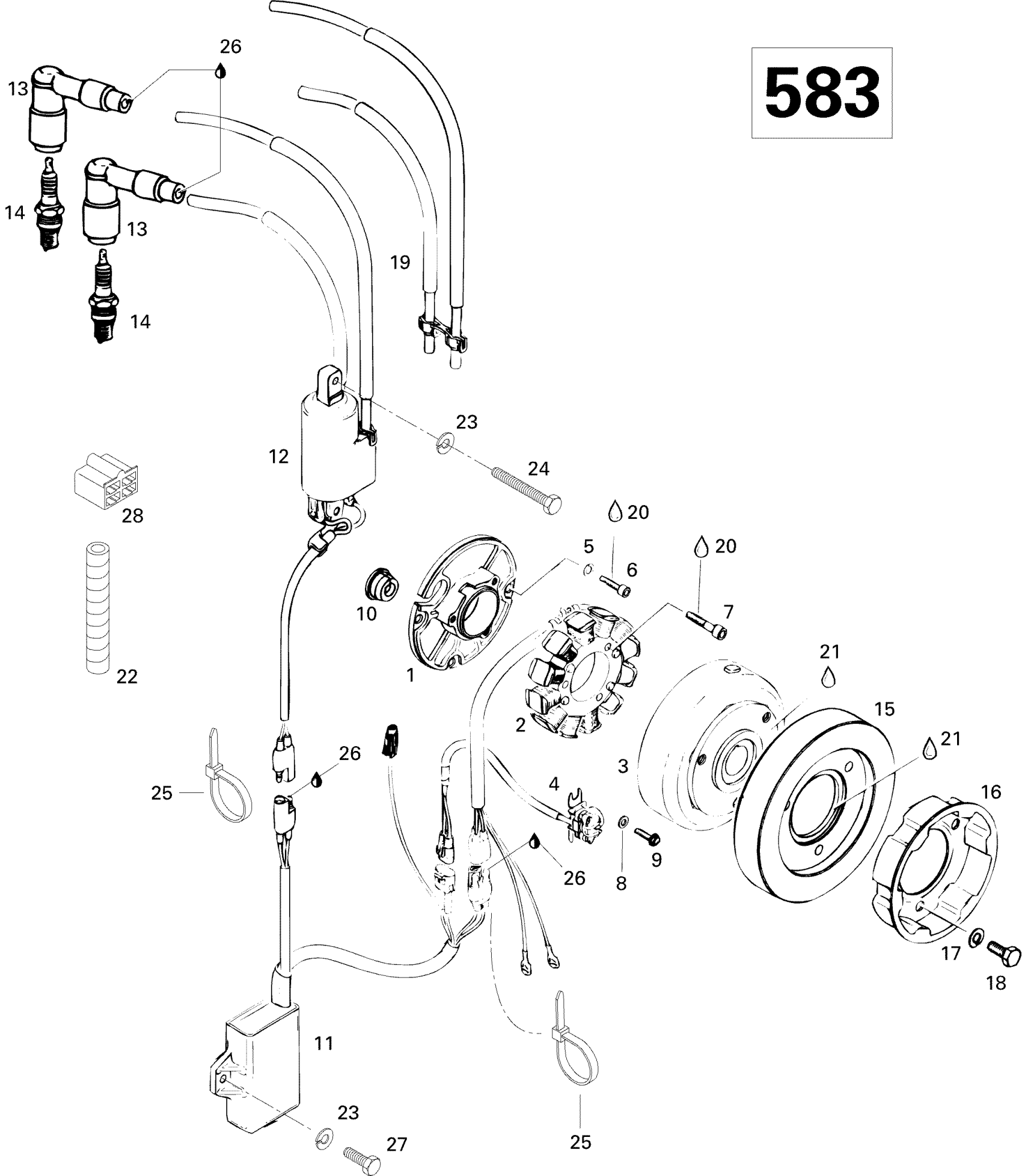

Ski-Doo MX Z 583, 1996 03- Magneto 583 Diagram

#

Description
Price

1

Armature Plate | Formula Deluxe 583.

420810262

Unavailable

2

Magneto Ass'y 12V 220W | Includes 2 - 4. Formula Z. Formula 583.

410918600

Unavailable

2

Stator Ass'y | Formula 500. Formula 500 Deluxe.

410919000

Unavailable

3

Magneto Flywheel | Formula Z. Formula 583.

410919100

Unavailable

4

Pick Up Ass'y | Formula 500. Formula 500 Deluxe.

410916700

Unavailable

5

Lock Washer

420945750

Unavailable

6

SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership

420941540

Unavailable

7

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

8

WASHER - Call your local BRP dealership

420827800

Unavailable

9

Taptite Screw M5 X 16

420941928

Unavailable

10

Cable Crommet | Touring E. Touring E LT (2). Touring LE.

420960288

Unavailable

11

Amplifier-Box | Skandic Wide Track LC.

410918900

Unavailable

12

Ignition Coil | Skandic Wide Track LC.

410920500

Unavailable

13

SPARK PLUG PROTECTOR - Call your local BRP dealership | Skandic Wide Track LC.

414569200

Unavailable

14

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

15

Flywheel | Formula Deluxe 583.

420866759

Unavailable

16

Starting Pulley | Formula Deluxe 700.

420852411

Unavailable

17

Washer-Lock Din.128

420945832

$1.15

18

Hex. Screw M8 X 20

207182044

$0.74

19

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

20

Loctite 243, 10 ml

293800060

$21.49

21

Sealant Loctite 648

219703000

$45.99

22

Tubing Helical | Formula 500. Formula 500 Deluxe.

410904000

Unavailable

23

Lock Washer M6, Black

234161471

$0.53

24

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

25

Tie-Rap 180 mm

414115200

$0.11

26

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

27

Hex. Screw M6 X 16

207161644

$0.74

28

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable
