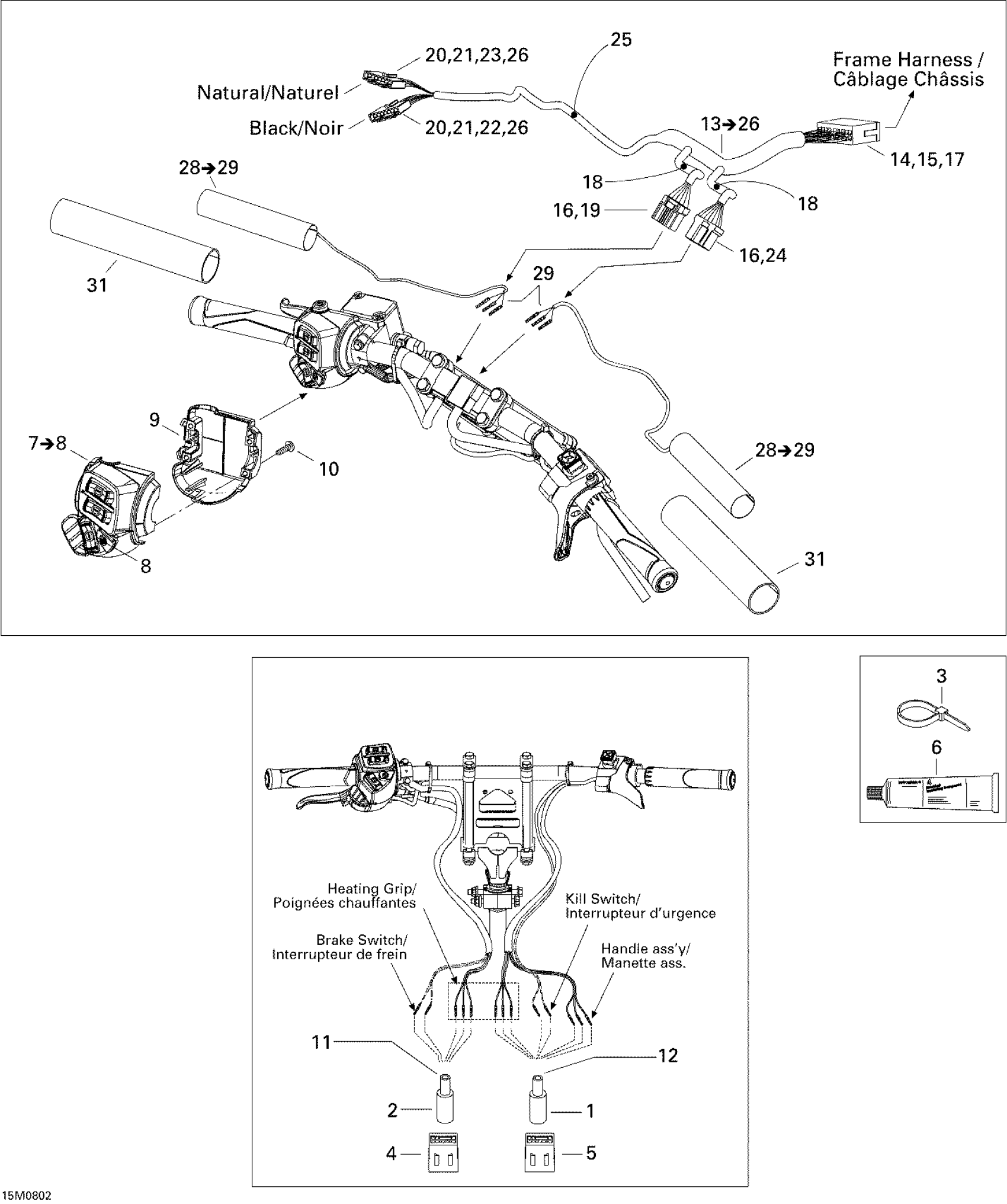

Ski-Doo MX Z 550X , 2009 10- Steering Wiring Harness Diagram

#

Description
Price

1

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

2

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

3

Tie-Rap 180 mm

414115200

$0.11

3

Tie Wrap 142 mm

293750002

$1.25

3

Tie-Rap 173 mm

293750009

$1.04

3

Tie Wrap 368 mm

293750008

$1.04

4

Male Terminal Housing, 6 Circuits

515175662

$8.79

5

Male Terminal Housing, 8 Circuits

515175817

$8.79

6

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

7

LH Housing

515177021

$229.99

8

Start/RER Button

515176088

$20.99

9

Switch Housing Plate

515175926

$20.99

10

Torx Screw #8-18

250000263

$1.04

11

Tubing 12 mm

409902000

Unavailable

12

Tubing 12 mm

409902000

Unavailable

13

STEERING WIRING HARNESS - Call your local BRP dealership | Includes 13 to 26

515176310

Unavailable

14

Male Terminal

515175232

$1.58

15

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

16

Female Terminal

515175231

$4.39

17

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

18

Tubing 10 MM 1000MM Long

219704407

$2.79

19

Female Terminal Housing, 6 Circuits

515175543

$9.49

20

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

21

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

22

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

23

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

24

Female Terminal Housing, 8 Circuits

515175819

$7.62

25

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

26

Female Terminal

515175941

$2.69

28

Heating Element

506152422

$99.99

29

Male Terminal

515175232

$1.58

31

Insulant

506153178

$12.99
