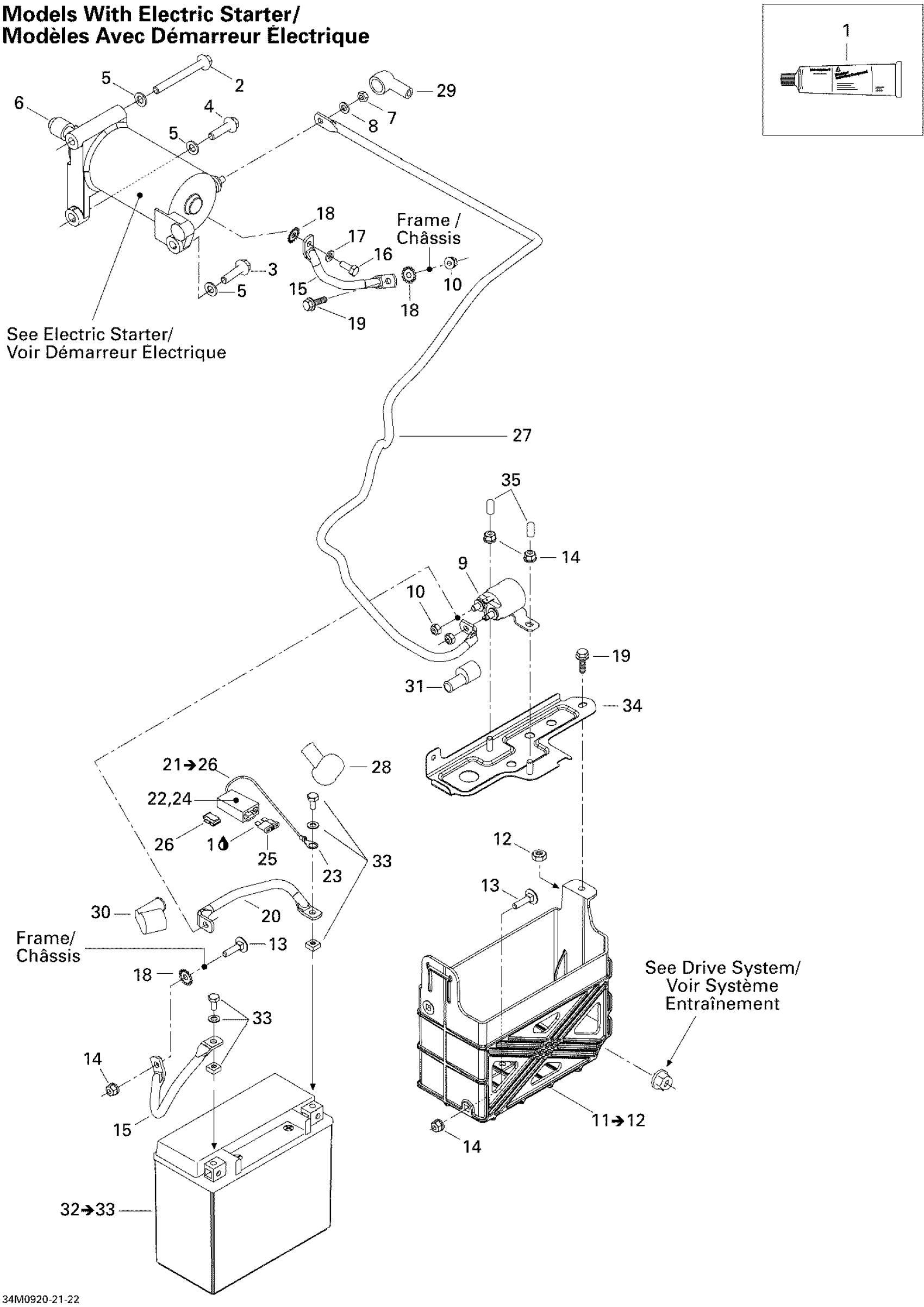

Ski-Doo MX Z 550X , 2009 Battery And Starter Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

2

Hex. Flange Screw M8 X 85, Scotch Grip

207588544

$3.19

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

4

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

5

Flat Washer With Teflon 8 mm

250200008

$3.58

6

Starter | Includes 1 to 5

515176585

$319.49

7

Elastic Stop Nut M6

232561414

$1.78

8

Flat Washer 6 mm

234061410

$1.19

9

Starter Relay

515176011

$59.67

10

Elastic Stop Nut M6

232561414

$1.78

11

BATTERY SUPPORT - Call your local BRP dealership | Includes 11 to 12

515176423

Unavailable

12

Elastic Stop Nut M6

232561414

$1.78

13

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

15

Ground Wire

515175749

$18.63

16

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.79

17

Flat Washer 6 mm

234061410

$1.19

18

Lock Washer Serrated M6

250200041

$1.06

19

Hex. Flange Screw M6 X 16

207661644

$0.70

20

Battery Wire

515175904

$17.88

21

Battery Fuse Wire | Includes 21 to 22

515175489

$14.58

22

Female Terminal

409004200

$4.28

23

Open Barrel

278000992

$2.06

24

Fuse Holder

409004000

$6.79

25

Fuse, 30 Amperes

410917200

$3.12

26

CLIP - Call your local BRP dealership

409014200

Unavailable

27

BATTERY WIRE - Call your local BRP dealership | DELE

515175905

Unavailable

28

Protection Cap

570151000

$17.88

29

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

30

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

31

Protector Cap | XT

515175919

$16.39

32

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

33

Battery Bolt Kit

250000282

$3.39

34

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

35

Cap

515176141

$2.82
