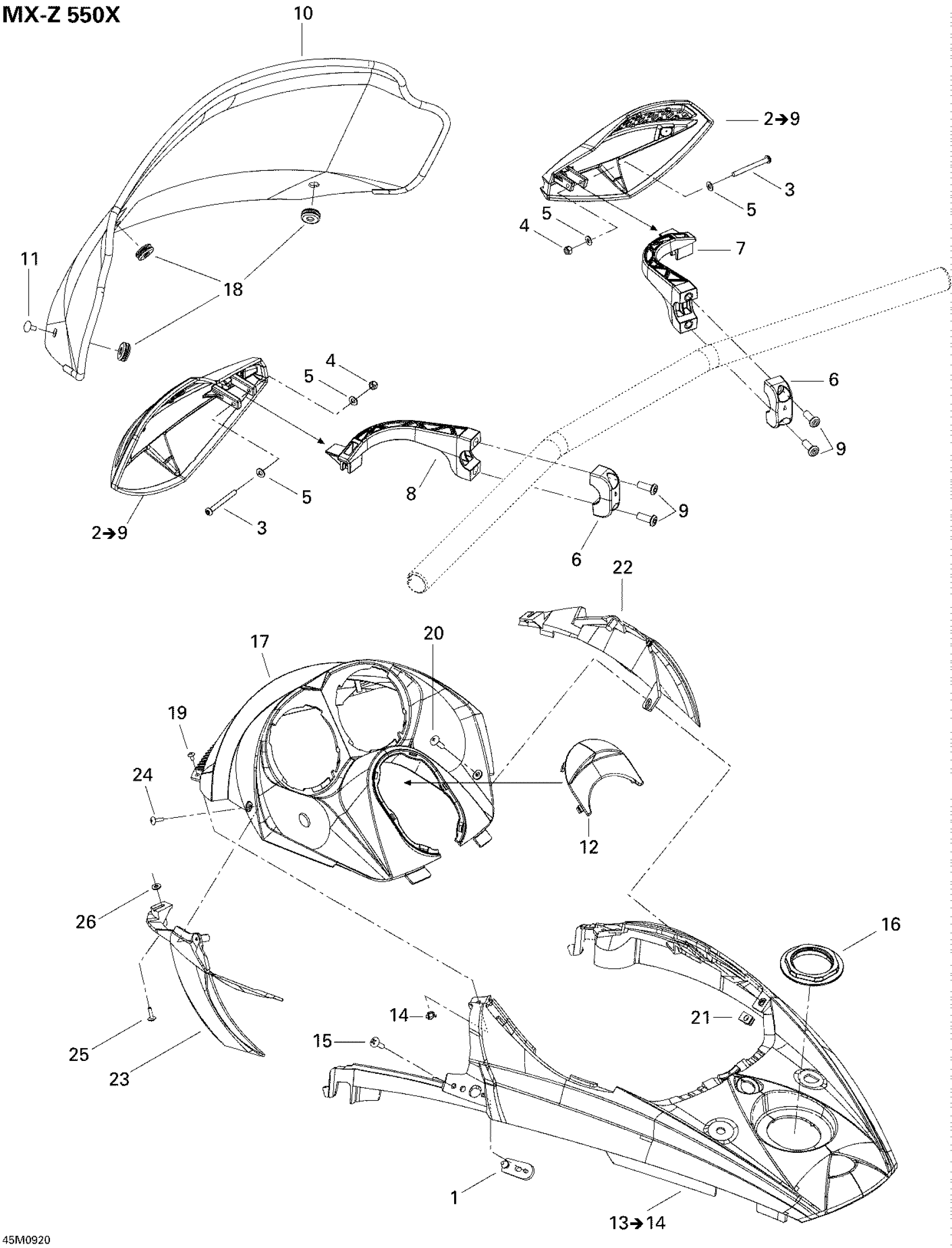

Ski-Doo MX Z 550X , 2009 09- Windshield And Console Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Yellow Wind Deflector Kit

860200710

$95.99

3

Socket Head Screw M4 X 40 | X

205444086

$1.69

4

Elastic Stop Nut M4

232541484

$0.74

5

Flat Washer 4 mm

234041480

$0.74

6

U-Clamp | XT

517303264

$11.99

7

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

Unavailable

8

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

Unavailable

9

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

10

LOW WINDSHIELD - Call your local BRP dealership

517303045

Unavailable

11

Tuflok Plastic Rivet

293150230

$1.47

12

CONSOLE CAP - Call your local BRP dealership

517302592

Unavailable

13

CENTER CONSOLE, YELLOW - Call your local BRP dealership

517303353

Unavailable

14

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

15

Torx Screw M6 X 20

250000722

$1.68

16

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

17

INDICATOR SUPPORT - Call your local BRP dealership

517303539

Unavailable

18

Grommet

517302841

$7.89

19

Torx Screw M4 X 8

250000127

$1.15

20

Torx Screw M5 X 20

250000724

$1.69

21

Panel Nut M5 X 0.8

250000958

$4.23

22

RH Air Deflector

517302798

Unavailable

23

LH AIR DEFLECTOR - Call your local BRP dealership

517302799

Unavailable

24

Torx-Truss Pt K40 X 16

250000759

$2.11

25

Screw M4 X 16

250000725

$3.49

26

Flat Washer 4 mm, Stainless

234042600

$1.15
