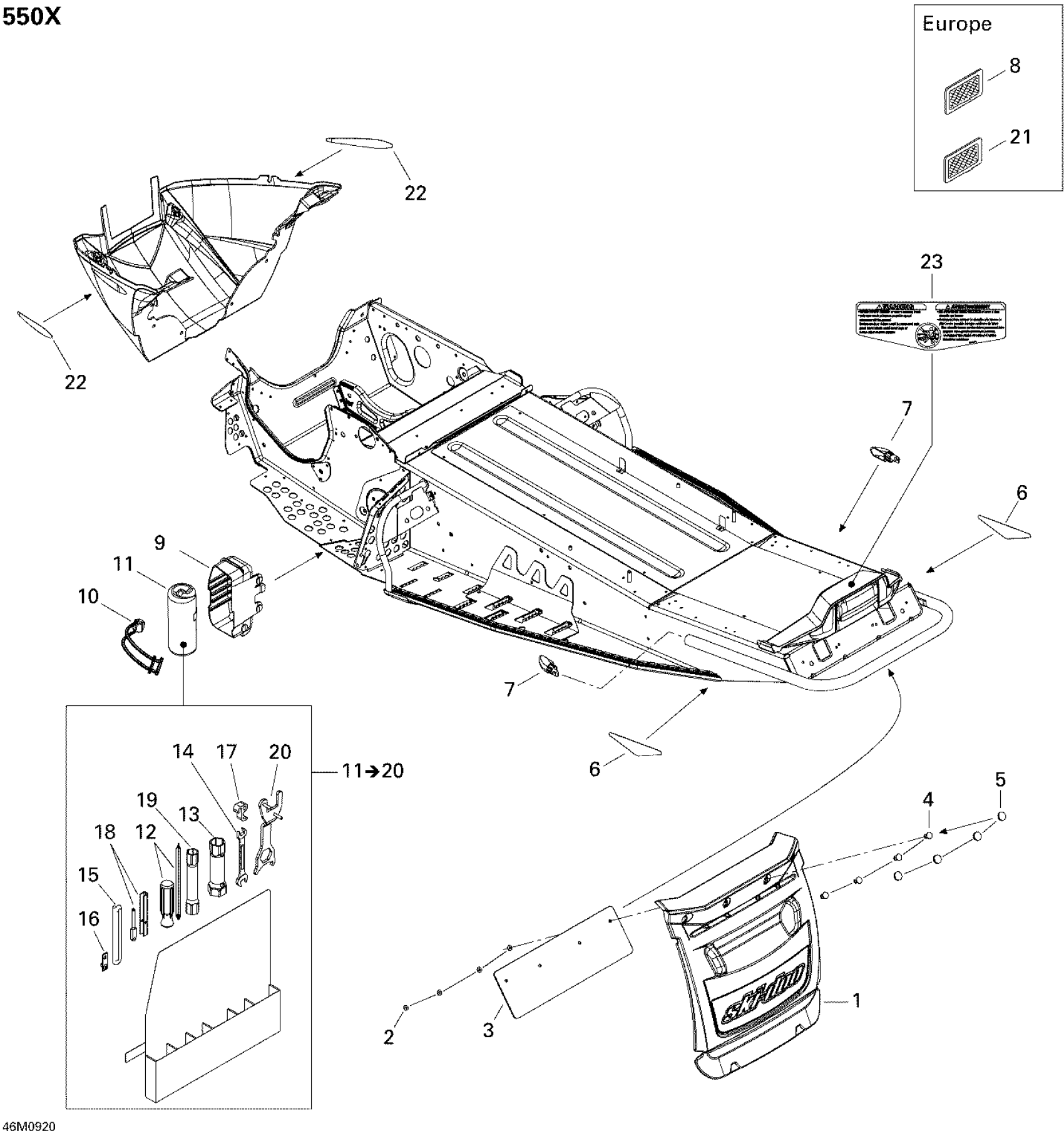

Ski-Doo MX Z 550X , 2009 09- Utilities Diagram

#

Description
Price

1

SNOW GUARD - Call your local BRP dealership

520000596

Unavailable

2

Flat Washer

517225900

$0.18

3

SNOW GUARD REINFORCEMENT - Call your local BRP dealership

520000423

Unavailable

4

Pop Rivet 3/16”

293150087

$0.93

5

Black, Cap

277000203

$9.39

6

REAR REFLECTOR, RED - Call your local BRP dealership

520000237

Unavailable

6

Rear Reflector, Amber | Europe

520000311

Unavailable

7

CAP - Call your local BRP dealership

520000272

Unavailable

8

Amber, Reflector

520000271

$19.99

9

TRUNK - Call your local BRP dealership

520000322

Unavailable

10

Latch

520000528

$7.69

11

TOOL KIT - Call your local BRP dealership | Includes 8 to 18

529000041

Unavailable

12

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

13

Socket Wrench 21/26 mm

529014800

Unavailable

14

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

15

Was 412500100 Rope-Starter

219704403

$158.99

16

ROPE ADAPTOR - Call your local BRP dealership | Includes 13 to 14

529024400

Unavailable

17

Pop Rivet 3/16"

390402200

$0.35

18

Starter Grip

529000060

$14.15

19

Spacing Tool

529035501

$4.72

20

WRENCH - Call your local BRP dealership

520000721

Unavailable

21

White, Reflector

415037900

$22.99

22

FRONT REFLECTOR - Call your local BRP dealership

516001336

Unavailable

23

WARNING LABEL, TRACK SECURITY - Call your local BRP dealership

516003034

Unavailable
