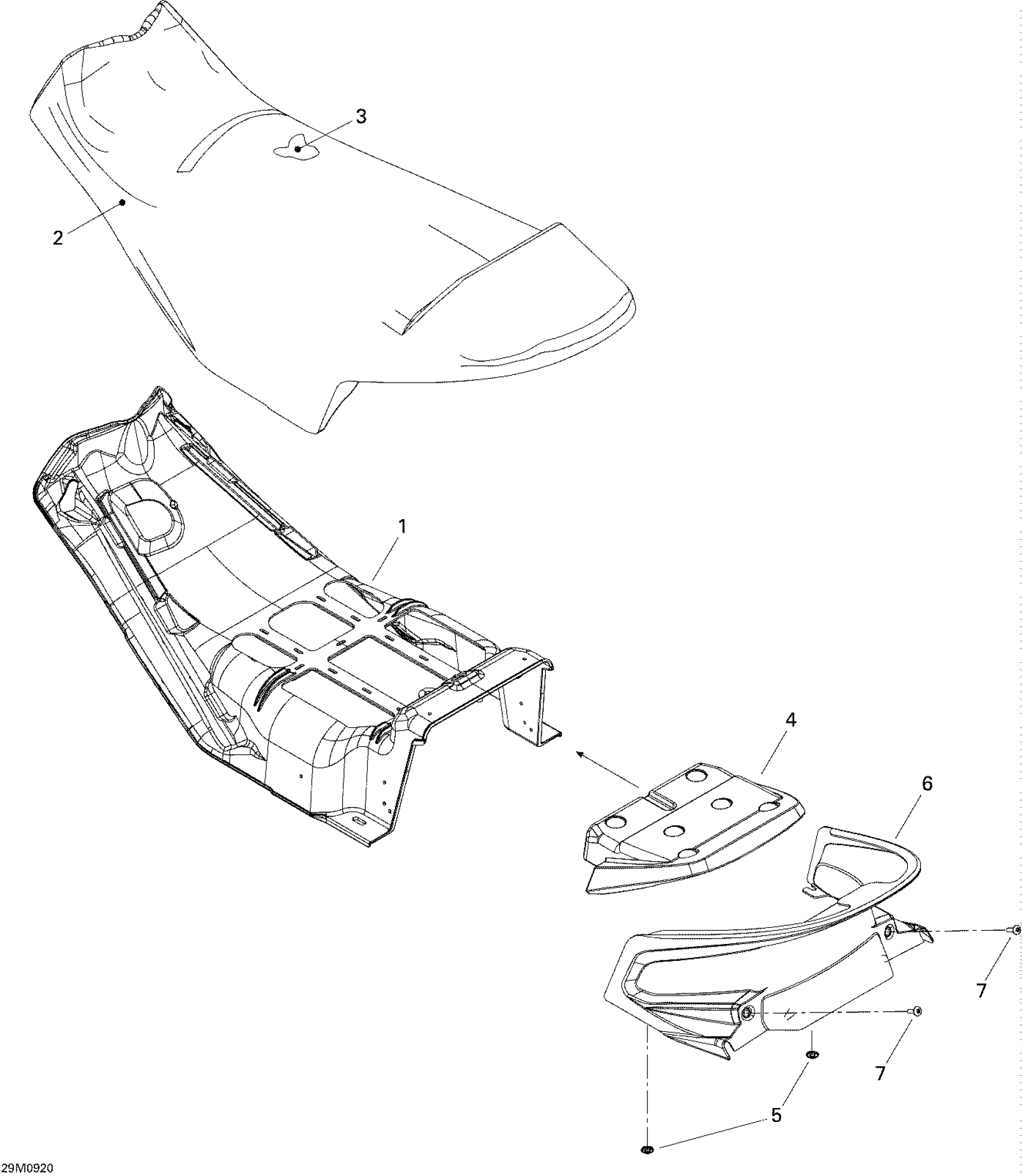

Ski-Doo MX Z 550X , 2009 09- Seat Diagram
#
Description
Price
1
SEAT BASE - Call your local BRP dealership
510004658
Unavailable
2
SEAT COVER - Call your local BRP dealership
510004724
Unavailable
3
SEAT FOAM - Call your local BRP dealership
510004918
Unavailable
4
SUPPORT BLOC - Call your local BRP dealership
510004714
Unavailable
5
PUSH NUT - Call your local BRP dealership
510004715
Unavailable
6
SEAT CAP - Call your local BRP dealership
510004736
Unavailable
7
TORX SCREW M6 X 25 - Call your local BRP dealership
250000324
Unavailable
