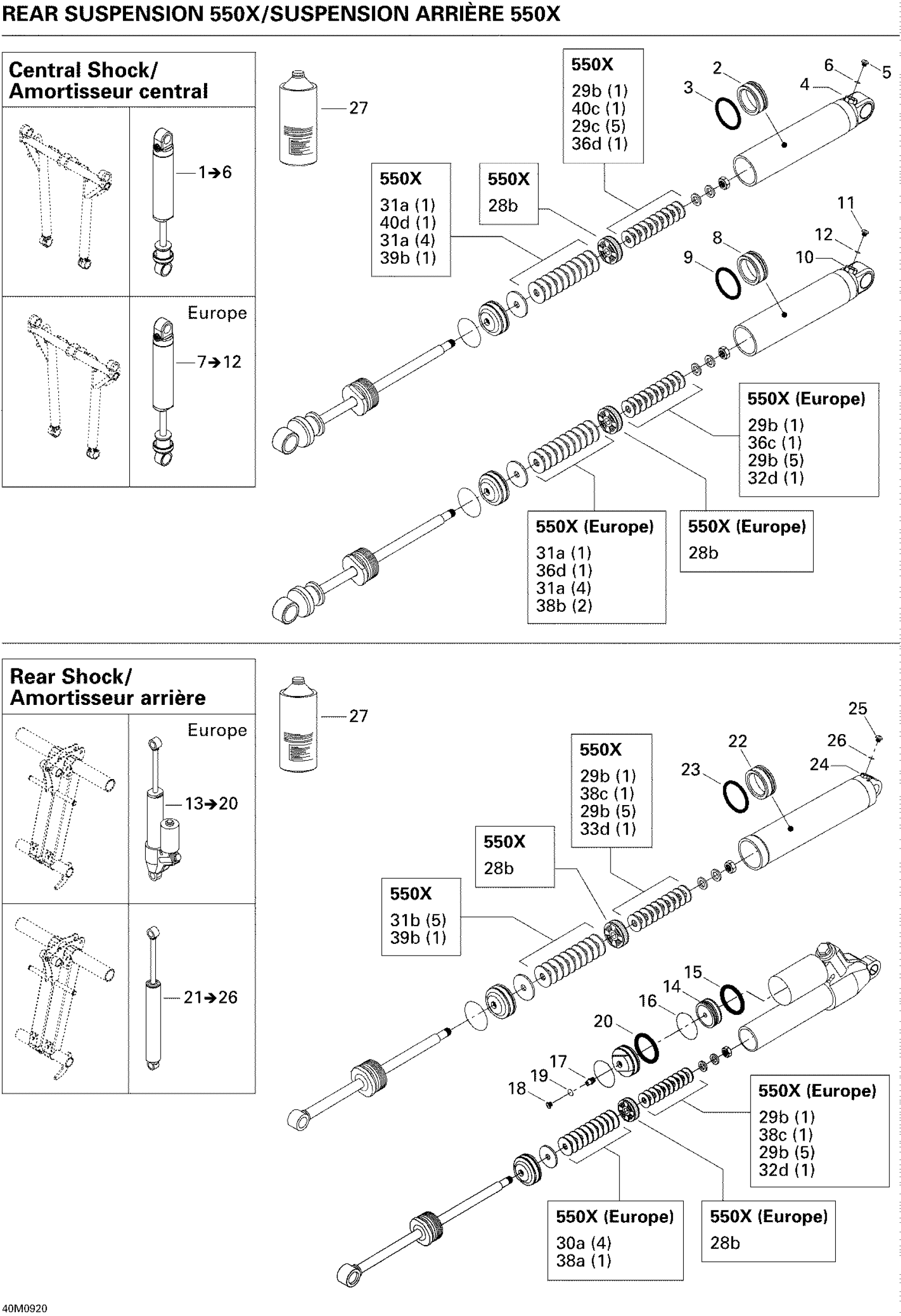

Ski-Doo MX Z 550X , 2009 08- Take Apart Shock, Rear Diagram
#
1
CENTER SHOCK - Call your local BRP dealership
503190992
Unavailable
2
WASHER - Call your local BRP dealership
505070401
Unavailable
3
SPRING - Call your local BRP dealership
415070100
Unavailable
10
Not Available As Spare Parts
XXX
Unavailable
11
Not Available As Spare Parts
XXX
Unavailable
12
Not Available As Spare Parts
XXX
Unavailable
13
Not Available As Spare Parts
XXX
Unavailable
14
Not Available As Spare Parts
XXX
Unavailable
15
Not Available As Spare Parts
XXX
Unavailable
16
Not Available As Spare Parts
XXX
Unavailable
17
Not Available As Spare Parts
XXX
Unavailable
18
Not Available As Spare Parts
XXX
Unavailable
19
Not Available As Spare Parts
XXX
Unavailable
20
Not Available As Spare Parts
XXX
Unavailable
21
Not Available As Spare Parts
XXX
Unavailable
22
Not Available As Spare Parts
XXX
Unavailable
23
Not Available As Spare Parts
XXX
Unavailable
24
Not Available As Spare Parts
XXX
Unavailable
25
Not Available As Spare Parts
XXX
Unavailable
26
REAR SHOCK - Call your local BRP dealership
503190991
Unavailable
27
Not Available As Spare Parts
XXX
Unavailable
28a
Piston (C36)
414888304
Unavailable
28b
Not Available As Spare Part - Friction Washer
Unavailable
28c
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
28d
Not Available As Spare Part - Friction Washer
Unavailable
28e
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
28f
Not Available As Spare Part - Friction Washer
Unavailable
28g
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
29a
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
29b
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
29c
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
29d
Not Available As Spare Part - Friction Washer
Unavailable
30a
Not Available As Spare Part - Friction Washer
Unavailable
30b
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
30c
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
30d
Not Available As Spare Part - Friction Washer
Unavailable
31a
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
31b
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
31c
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
31d
Not Available As Spare Part - Friction Washer
Unavailable
32a
Not Available As Spare Part - Friction Washer
Unavailable
32b
Not Available As Spare Part - Friction Washer
Unavailable
32c
Not Available As Spare Part - Friction Washer
Unavailable
32d
Not Available As Spare Part - Friction Washer
Unavailable
33a
Not Available As Spare Part - Friction Washer
Unavailable
33b
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
33c
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
33d
Not Available As Spare Part - Friction Washer
Unavailable
34a
Not Available As Spare Part - Friction Washer
Unavailable
34b
Not Available As Spare Part - Friction Washer
Unavailable
34c
Not Available As Spare Part - Friction Washer
Unavailable
34d
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
35a
Not Available As Spare Part - Friction Washer
Unavailable
35b
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
35c
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
35d
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
36a
Not Available As Spare Part - Friction Washer
Unavailable
36b
Not Available As Spare Part - Friction Washer
Unavailable
36c
Not Available As Spare Part - Friction Washer
Unavailable
36d
Not Available As Spare Part - Friction Washer
Unavailable
37a
Not Available As Spare Part - Friction Washer
Unavailable
37b
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
37c
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
37d
Not Available As Spare Part - Friction Washer
Unavailable
38a
Not Available As Spare Part - Friction Washer
Unavailable
38b
Not Available As Spare Part - Friction Washer
Unavailable
38c
Not Available As Spare Part - Friction Washer
Unavailable
38d
Not Available As Spare Part - Friction Washer
Unavailable
39a
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
39b
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
39c
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
39d
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
40a
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
40b
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
40c
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
40d
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
41a
Not Available As Spare Part - Friction Washer
Unavailable
41b
Not Available As Spare Part - Friction Washer
Unavailable
41c
Not Available As Spare Part - Friction Washer
Unavailable
41d
Not Available As Spare Part - Friction Washer
Unavailable
42a
Not Available As Spare Part - Friction Washer
Unavailable
42b
Not Available As Spare Part - Friction Washer
Unavailable
42c
Not Available As Spare Part - Friction Washer
Unavailable
42d
Not Available As Spare Part - Friction Washer
Unavailable
43a
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
43b
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
43c
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
43d
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
