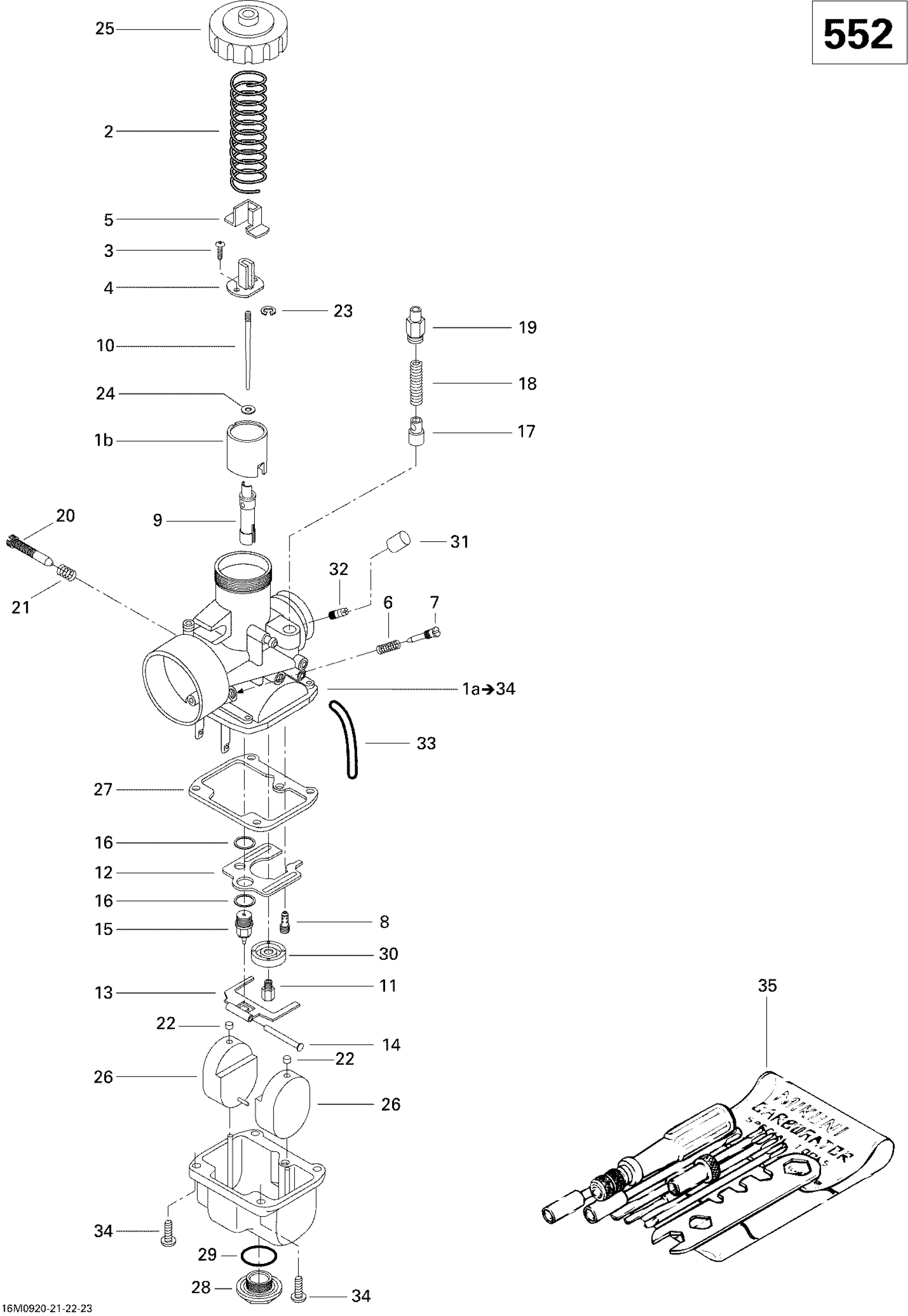

Ski-Doo MX Z 550X , 2009 Carburetor Diagram

#

Description
Price

1a

CARBURETOR VM34-617 - Call your local BRP dealership

403138772

Unavailable

1b

Piston Valve 2.5

404128400

$129.97

2

Spring

404154800

$24.99

3

Screw With Washer

404121300

$4.29

4

Packing

404161987

$14.91

5

Cover

404122100

$18.43

6

SPRING - Call your local BRP dealership

404139800

Unavailable

7

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

8

Pilot Jet 45

404109400

$5.29

9

Needle Jet 159-P-7

404162072

Unavailable

10

NEEDLE J8-6BCY40 - Call your local BRP dealership

404162032

Unavailable

11

Main Jet 260

404100600

$8.14

12

BAFFLE - Call your local BRP dealership

404109600

Unavailable

13

Float Lever

404107600

$23.99

14

Lever Pin

404103300

$6.39

15

Needle Valve 1.2

404147500

$43.99

16

Seat Washer

404101600

$3.31

17

Plunger Ass'y | MAG Side

404161986

$18.43

18

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

19

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

20

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

21

Spring

404101700

$4.29

22

Cap

404105800

$6.49

23

E-Ring

404152400

$6.55

24

Packing

404117000

$3.39

25

Cover

404103700

$32.99

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Gasket | Includes 1900a to 1900am

404104200

$6.49

28

Drain Plug Screw

404107400

$23.99

29

O-Ring

404107300

$8.14

30

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

31

Cap

404156600

$16.12

32

Nipple

404153400

$11.51

33

HOSE - Call your local BRP dealership

404161888

Unavailable

34

Screw With Lock Washer

404102000

$3.29

35

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
