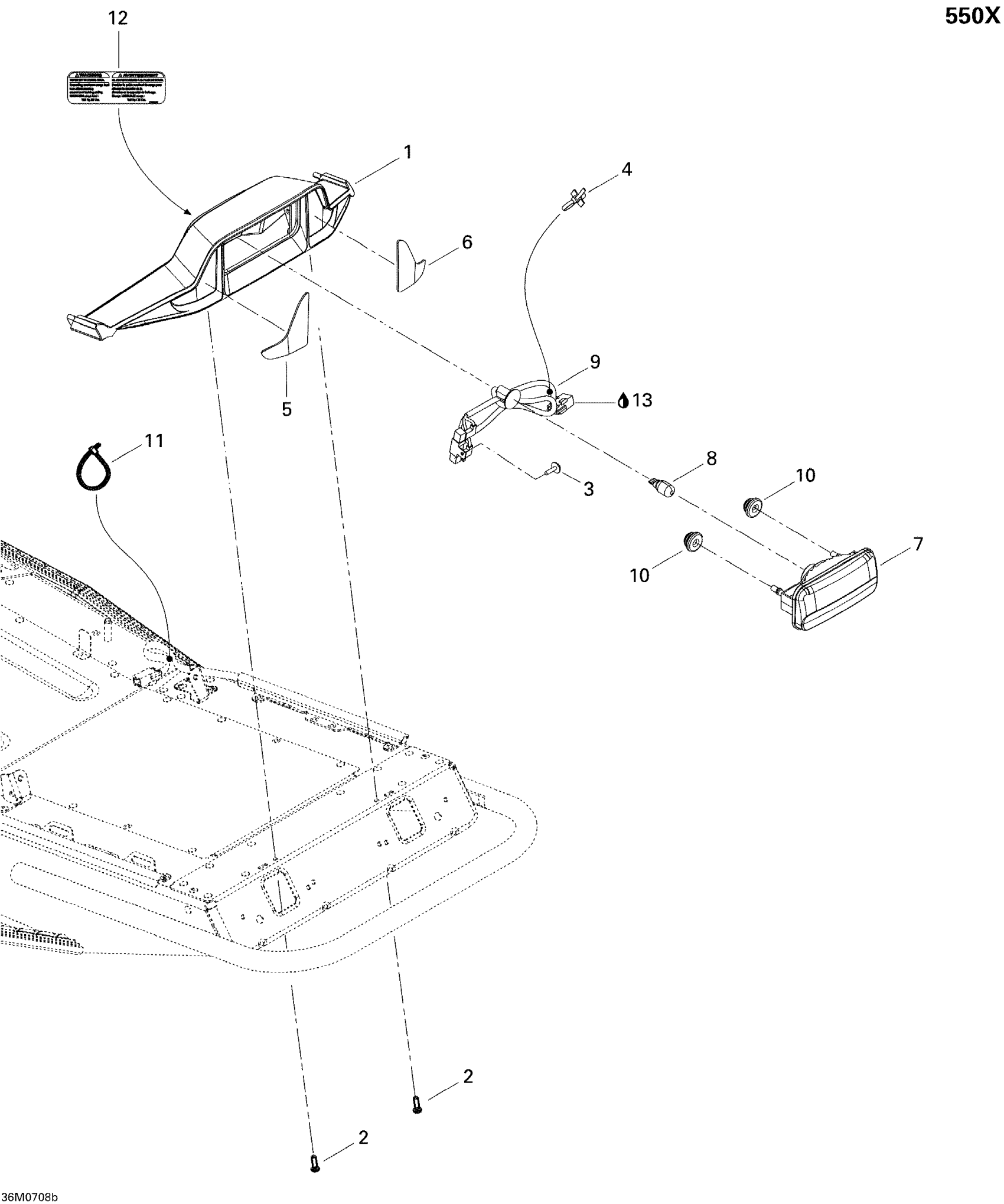

Ski-Doo MX Z 550X, 2007 Luggage Rack 550X Diagram

#

Description
Price

1

LIGHT SUPPORT - Call your local BRP dealership

511000511

Unavailable

2

Torx Screw K50 X 16

250000720

$1.60

3

Screw M4 X 16

250000725

$3.30

4

Tie-Rap 173 mm

293750009

$0.97

5

REAR REFLECTOR - Call your local BRP dealership

511000459

Unavailable

6

REAR REFLECTOR - Call your local BRP dealership

511000460

Unavailable

7

Rear Lens Box | MX Z X 600RS

710000652

Unavailable

8

BULB - Call your local BRP dealership | MX Z X 600RS

710000653

Unavailable

9

WIRING HARNESS - Call your local BRP dealership | MX Z X 600RS

511000508

Unavailable

10

Stopper Rubber

705014429

$6.09

11

Tie Wrap 142 mm

293750002

$1.01

12

WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership

516002960

Unavailable

13

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54
