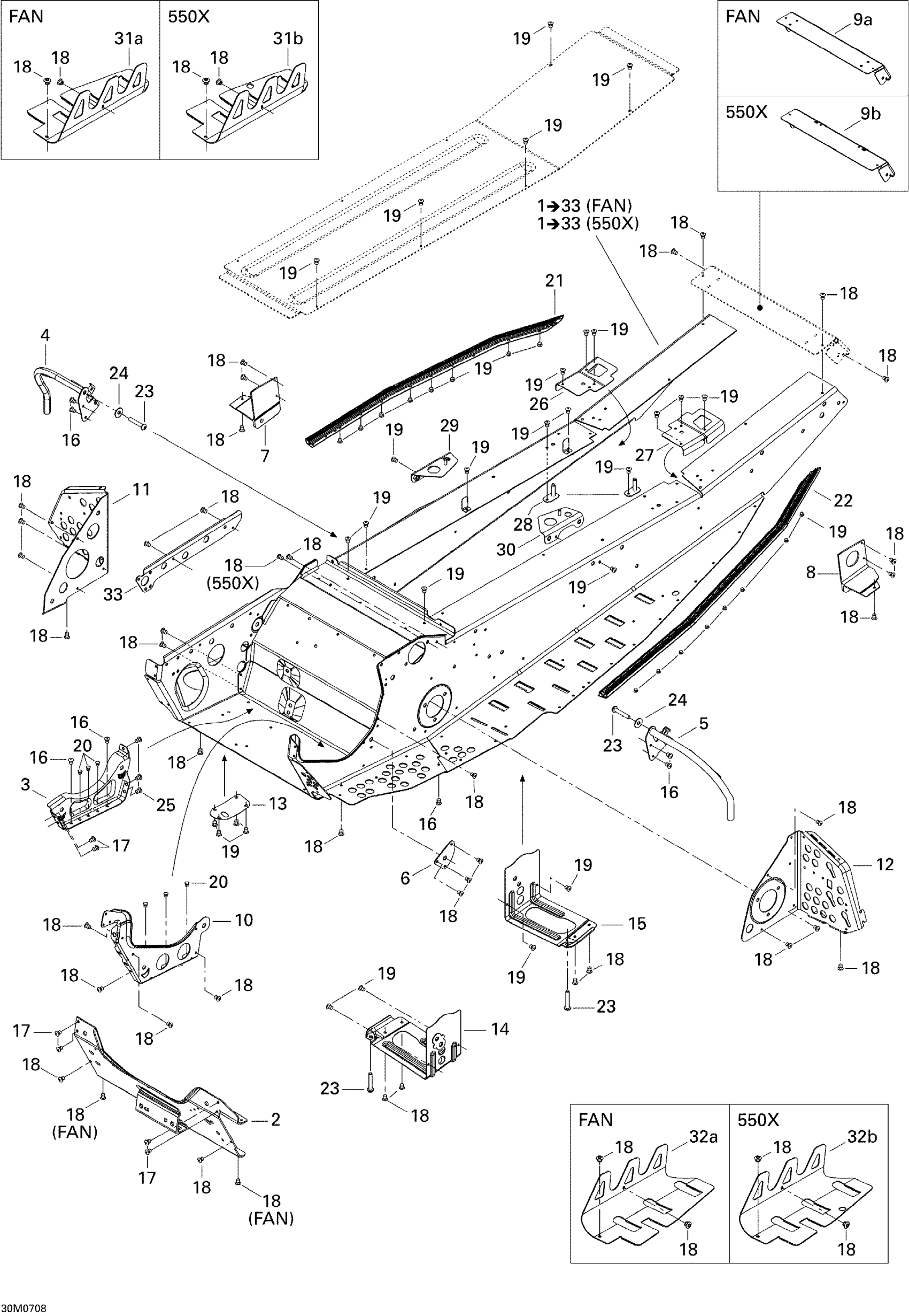

Ski-Doo MX Z 550X, 2007 09- Frame X Diagram

#

Description
Price

1

Frame | Includes 1 to 33, 550X

415129230

Unavailable

2

FRONT PAN WELD - Call your local BRP dealership

518324114

Unavailable

3

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

Unavailable

4

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

Unavailable

5

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

6

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

Unavailable

7

RH SLIDE BRACKET - Call your local BRP dealership

518324488

Unavailable

8

LH SLIDE BRACKET - Call your local BRP dealership

518324489

Unavailable

9a

Not Available As Spare Parts

XXX

Unavailable

9b

REAR CAP - Call your local BRP dealership

518325169

Unavailable

10

INNER REINFORCEMENT, BLACK - Call your local BRP dealership

518323241

Unavailable

11

RH Footrest Reinforcement

518323805

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

Unavailable

13

PLATE - Call your local BRP dealership

518324169

Unavailable

14

RH Reinforcement, Black

518324634

Unavailable

15

LH REINFORCEMENT, BLACK - Call your local BRP dealership

518324635

Unavailable

16

Avex Rivet

390909200

$0.30

17

Avex Rivet

390909100

$0.30

18

Pop Rivet 3/16"

390402200

$0.35

19

Pop Rivet 3/16"

390402400

$0.35

20

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

21

RH Roller

518324953

Unavailable

22

LH ROLLER - Call your local BRP dealership

518324954

Unavailable

23

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

24

Flat Washer 8 mm

234082410

$1.47

25

Hemlock Rivet, 6.5 mm

293150096

$3.27

26

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

Unavailable

27

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

Unavailable

28

Tank Bracket

518322791

Unavailable

29

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

Unavailable

30

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

Unavailable

31a

Not Available As Spare Parts

XXX

Unavailable

31b

RH TUNNEL LINER - Call your local BRP dealership

518325268

Unavailable

32a

Not Available As Spare Parts

XXX

Unavailable

32b

LH Tunnel Liner

518325269

$48.99

33

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

Unavailable
