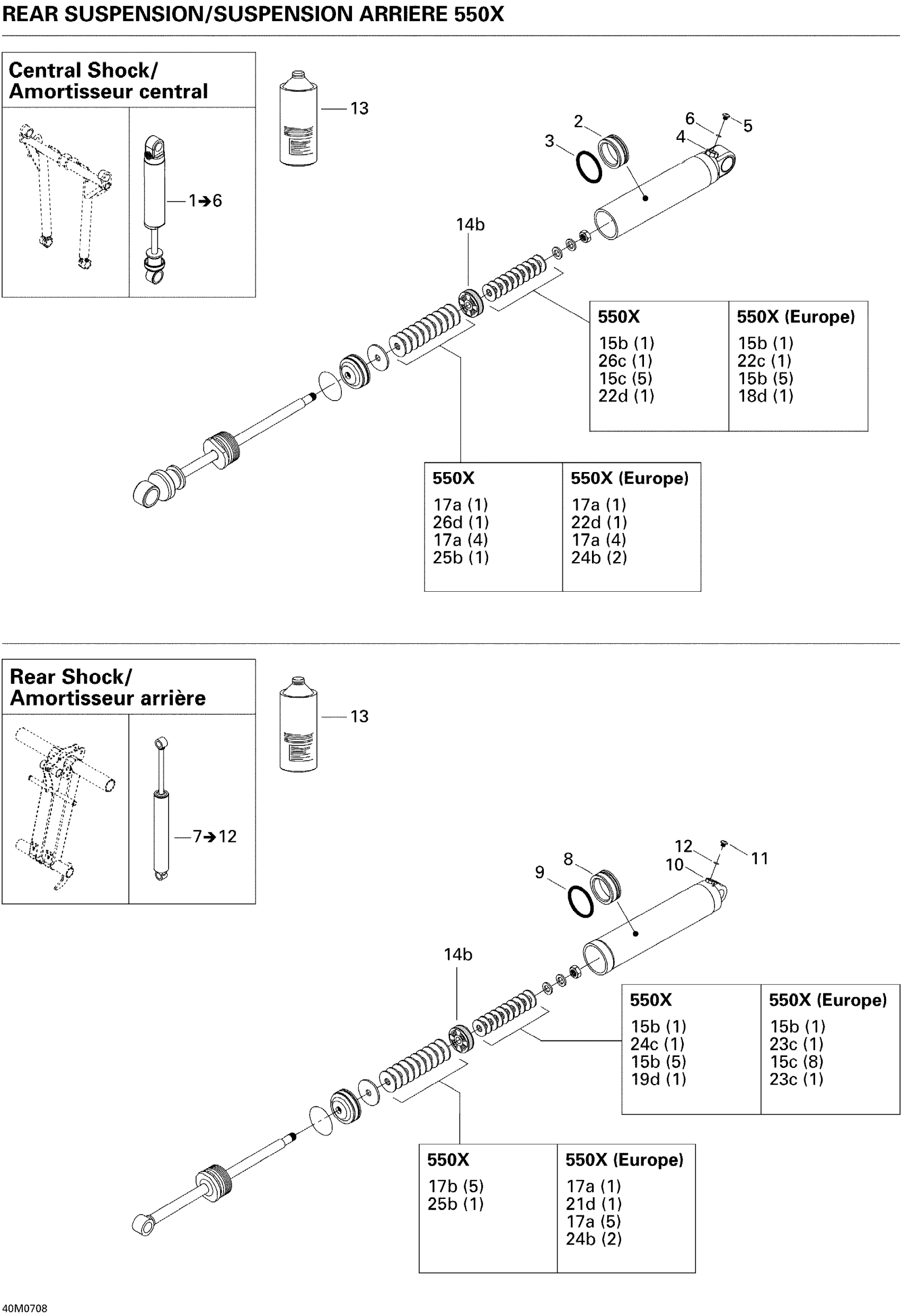

Ski-Doo MX Z 550X, 2007 08- Take Apart Shock, Rear 550X Diagram
#
1
Center Shock | Except Europe
503191294
Unavailable
1
CENTER SHOCK - Call your local BRP dealership | Europe
503191463
Unavailable
2
Free Piston
415097900
Unavailable
7
REAR SHOCK - Call your local BRP dealership | Except Europe
503191297
Unavailable
7
Rear Shock | 550X Europe
503191465
Unavailable
8
Free Piston
415097900
Unavailable
14a
Piston (C36)
414888304
Unavailable
14b
Not Available As Spare Part - Friction Washer
Unavailable
14c
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
14d
Not Available As Spare Part - Friction Washer
Unavailable
14e
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
14f
Not Available As Spare Part - Friction Washer
Unavailable
14g
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
15a
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
15b
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
15c
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
15d
Not Available As Spare Part - Friction Washer
Unavailable
16a
Not Available As Spare Part - Friction Washer
Unavailable
16b
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
16c
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
16d
Not Available As Spare Part - Friction Washer
Unavailable
17a
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
17b
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
17c
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
17d
Not Available As Spare Part - Friction Washer
Unavailable
18a
Not Available As Spare Part - Friction Washer
Unavailable
18b
Not Available As Spare Part - Friction Washer
Unavailable
18c
Not Available As Spare Part - Friction Washer
Unavailable
18d
Not Available As Spare Part - Friction Washer
Unavailable
19a
Not Available As Spare Part - Friction Washer
Unavailable
19b
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
19c
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
19d
Not Available As Spare Part - Friction Washer
Unavailable
20a
Not Available As Spare Part - Friction Washer
Unavailable
20b
Not Available As Spare Part - Friction Washer
Unavailable
20c
Not Available As Spare Part - Friction Washer
Unavailable
20d
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
21a
Not Available As Spare Part - Friction Washer
Unavailable
21b
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
21c
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
21d
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
22a
Not Available As Spare Part - Friction Washer
Unavailable
22b
Not Available As Spare Part - Friction Washer
Unavailable
22c
Not Available As Spare Part - Friction Washer
Unavailable
22d
Not Available As Spare Part - Friction Washer
Unavailable
23a
Not Available As Spare Part - Friction Washer
Unavailable
23b
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
23c
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
23d
Not Available As Spare Part - Friction Washer
Unavailable
24a
Not Available As Spare Part - Friction Washer
Unavailable
24b
Not Available As Spare Part - Friction Washer
Unavailable
24c
Not Available As Spare Part - Friction Washer
Unavailable
24d
Not Available As Spare Part - Friction Washer
Unavailable
25a
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
25b
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
25c
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
25d
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
26a
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
26b
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
26c
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
26d
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
27a
Not Available As Spare Part - Friction Washer
Unavailable
27b
Not Available As Spare Part - Friction Washer
Unavailable
27c
Not Available As Spare Part - Friction Washer
Unavailable
27d
Not Available As Spare Part - Friction Washer
Unavailable
28a
Not Available As Spare Part - Friction Washer
Unavailable
28b
Not Available As Spare Part - Friction Washer
Unavailable
28c
Not Available As Spare Part - Friction Washer
Unavailable
28d
Not Available As Spare Part - Friction Washer
Unavailable
29a
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
29b
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
29c
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
29d
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
