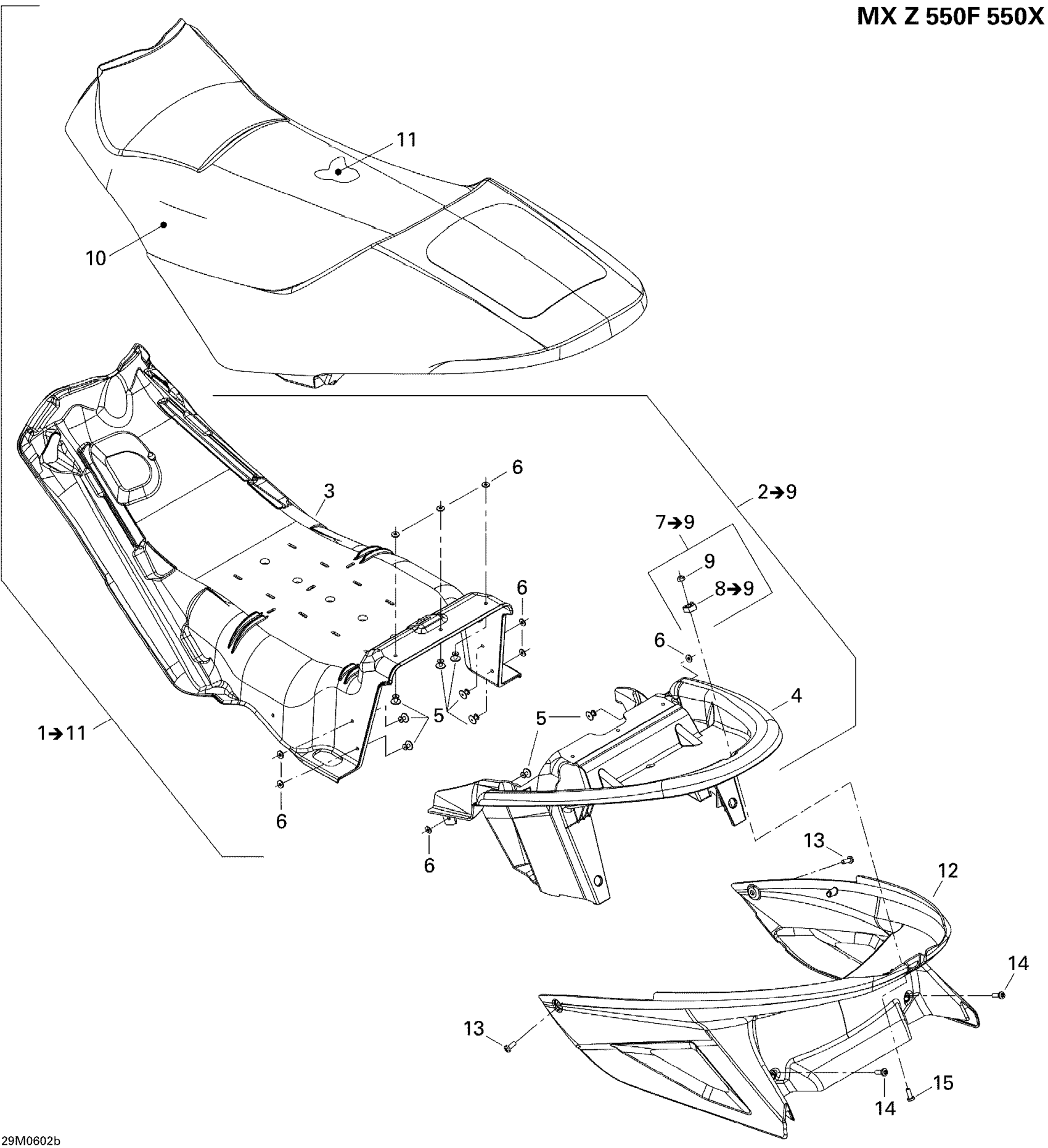

Ski-Doo MX Z 550X, 2006 09- Seat MX Z 550X Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

SEAT BASE ASS'Y - Call your local BRP dealership

510004582

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

6

Flat Washer

517225900

$0.18

7

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

8

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

9

Hex. Nut M6

232061600

$1.15

10

SEAT COVER - Call your local BRP dealership | Jaune, B-190

510004653

Unavailable

11

Seat Foam

510004216

Unavailable

12

2000 Yellow, Trunk | Black Yellow

510004629

Unavailable

13

Torx Truss Screw M6 X 16

250000721

$1.69

14

Torx Screw M6 X 20

250000722

$1.68

15

Torx Truss Screw M6 X 16

250000721

$1.69
