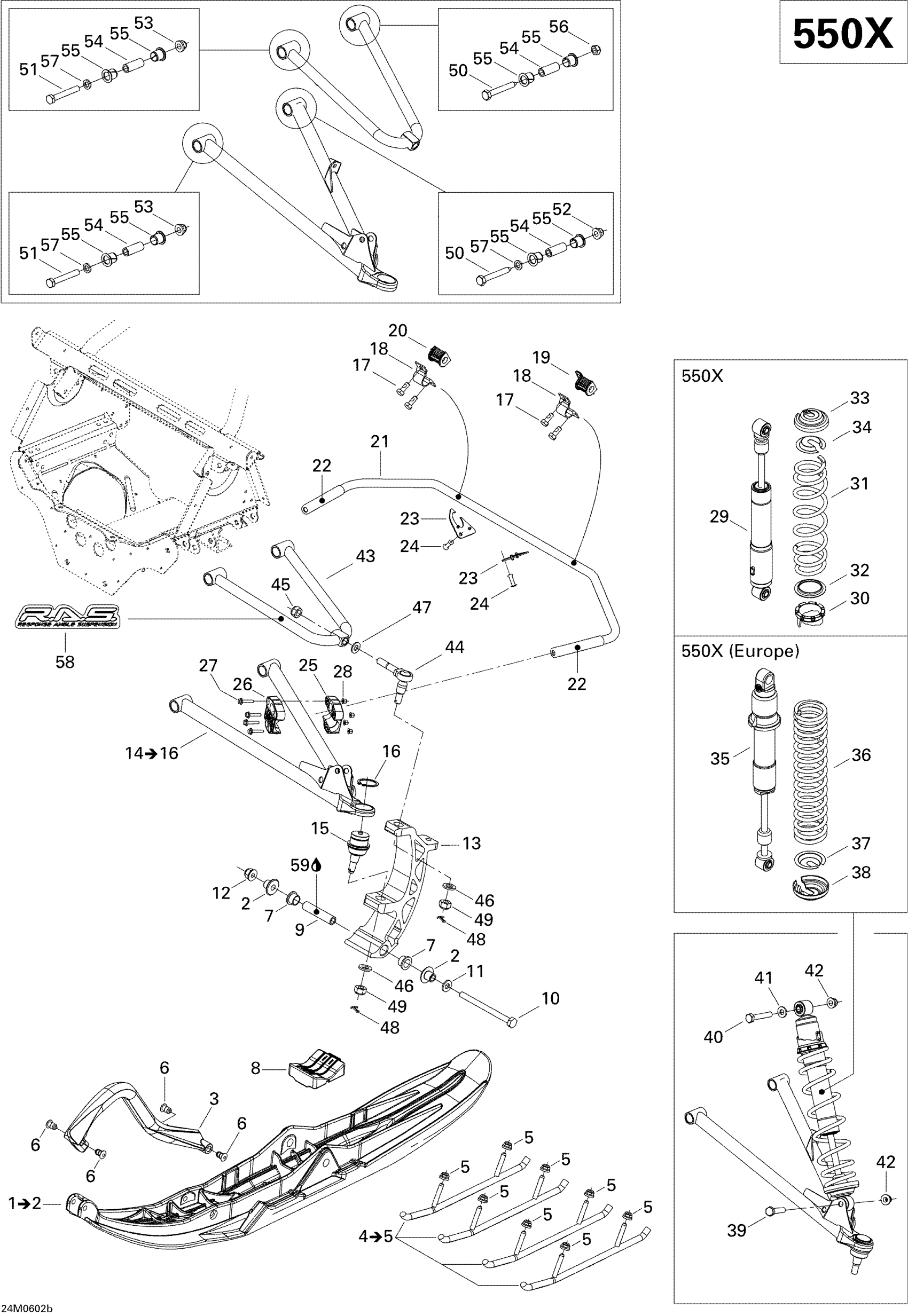

Ski-Doo MX Z 550X, 2006 Front Suspension And Ski 550X Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$160.74

1

Deep Black, LH Pilot 5.7 Ski

505072854

$175.35

2

Ski Bushing

505071781

$15.35

3

Yellow Handle | Model-MX-Z TNT

505070917

$41.51

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$134.58

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Retainer 17mm long

505071812

$4.43

7

Leg Bushing

505072690

Unavailable

8

Ski Stopper

505071779

$16.12

9

Spacer

506133300

$19.97

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

11

Washer

732900049

$0.57

12

Flange Nut M10

732610084

$5.49

13

SKI LEG - Call your local BRP dealership

505071232

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership

860512500

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512400

Unavailable

15

Ball Joint

505073636

$49.97

16

Circlip

293370035

$2.55

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

19

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

20

RH BUSHING - Call your local BRP dealership

505070912

Unavailable

21

STABILISATOR - Call your local BRP dealership

505070948

Unavailable

22

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

$0.54

25

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

26

LH SLIDER HALF - Call your local BRP dealership

505071269

Unavailable

27

Hex. Flange Screw M5 X 25

207652544

$0.42

28

Hex. Flange Elastic Nut M5

233251414

$1.66

29

FRONT SHOCK - Call your local BRP dealership

505071490

Unavailable

30

Adjustment Cam

505073625

$12.18

31

SPRING - Call your local BRP dealership | Europe

505071833

Unavailable

32

Spring Guide

503191872

$2.18

33

Spring Stopper

706200881

$10.30

34

Cap

706200785

$4.42

35

Front Shock | (Europe)

505071951

Unavailable

36

SPRING - Call your local BRP dealership | (Europe)

505071834

Unavailable

37

Spring Stopper

706200881

$10.30

38

Cap

706200785

$4.42

39

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

40

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

41

Washer

503189564

$0.72

42

Hex. Flange Elastic Nut M10

233201414

$1.26

43

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

44

Upper Ball Joint

505072257

$16.89

45

Hex. Flange Elastic Nut M12

250000047

$1.56

46

Flat Washer 12 mm

234021410

$0.68

47

Washer

503189276

$3.20

48

Cotter Pin

211400017

$0.25

49

Hex. Flange Elastic Nut M12

250000047

$1.56

50

Hex. Screw M10 X 75

250001063

$9.74

51

Hex. Screw M10 X 75

250001063

$9.74

52

Hex. Flange Elastic Nut M10

250100165

$0.70

53

Hex. Flange Elastic Nut M10

250100165

$0.70

54

Bushing

505070567

$19.97

55

Arm Bushing

505070566

$3.14

56

Elastic Flange Nut M10

232501416

$1.25

57

Washer

503189564

$0.72

58

R.a.s. Suspension Decal

516002747

Unavailable

59

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
