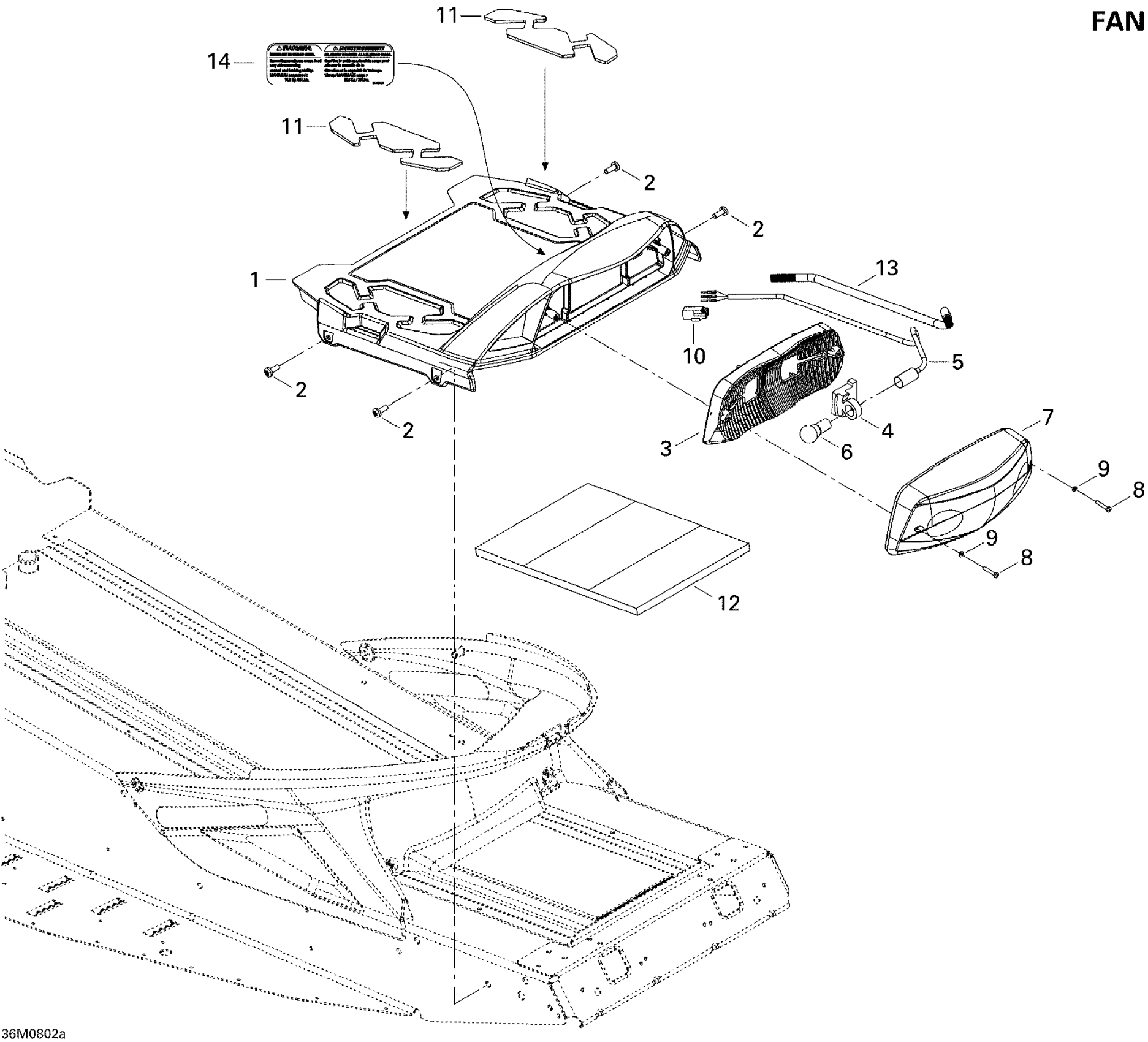

Ski-Doo MX Z 550F, 2008 09- Luggage Rack FAN Diagram

#

Description
Price

1

LUGGAGE RACK - Call your local BRP dealership

511000434

Unavailable

2

Torx Truss Screw M6 X 16

250000721

$1.69

3

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

4

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

5

Bulb Socket

511000465

Unavailable

6

Bulb

520000758

$9.10

7

Lens

511000315

$36.99

8

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

9

Washer - Call your local BRP dealership

414516400

Unavailable

10

Male Housing, 3 Circuits

515175494

$16.18

11

REAR CARPET - Call your local BRP dealership

520000481

Unavailable

12

RADIATOR COVER SHIM 121 - Call your local BRP dealership

511000359

Unavailable

13

Tubing 6 Mm 3000Mm Long

219704425

$13.75

14

WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership

516002960

Unavailable
