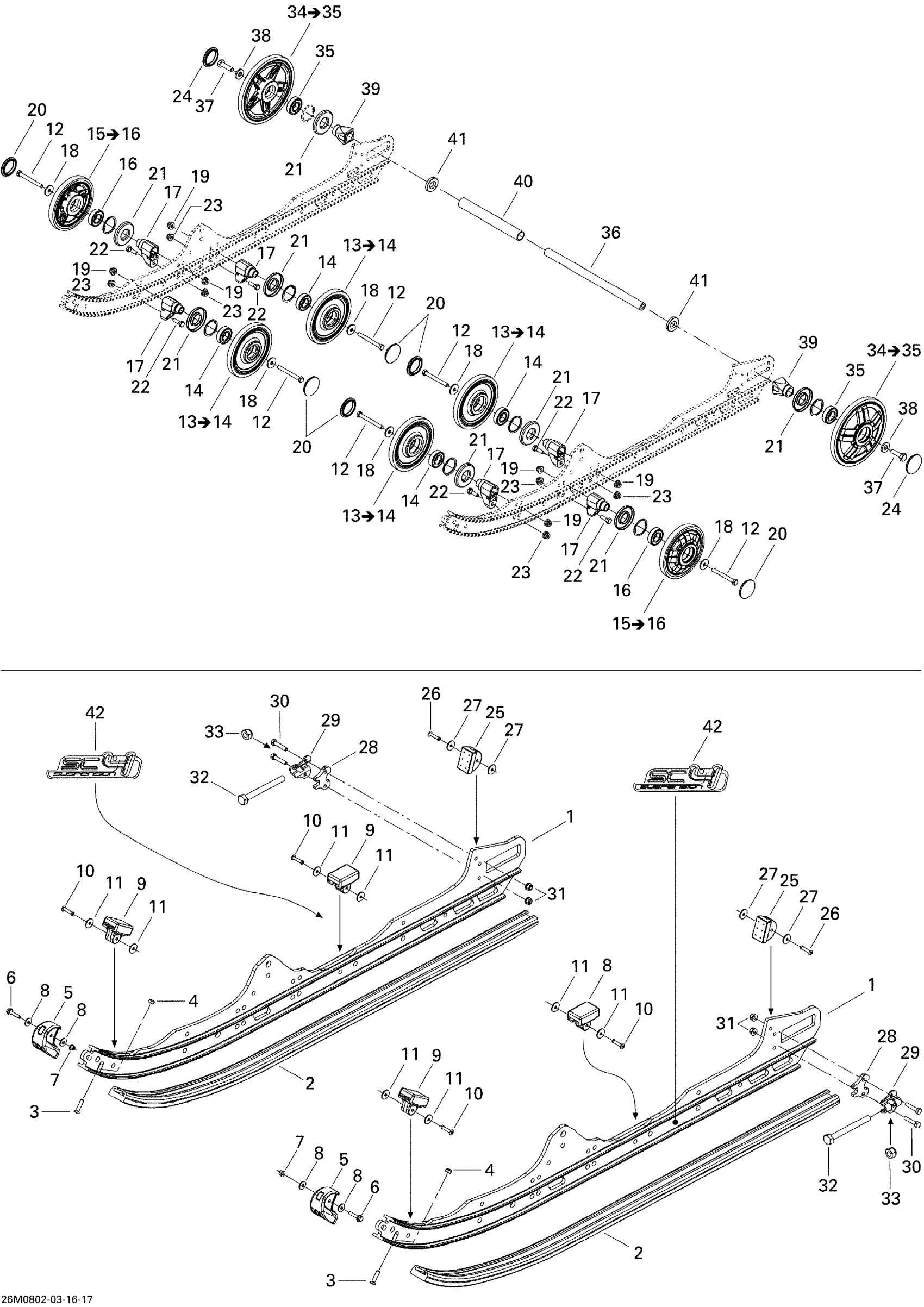

Ski-Doo MX Z 550F, 2008 08- Rear Suspension Diagram

#

Description
Price

1

RUNNER 121 - Call your local BRP dealership

503191224

Unavailable

2

Slider Shoe

503190573

$29.49

3

Phillips Screw M6 X 25

208562531

$2.11

4

Elastic Stop Nut M6

232561414

$0.55

5

Runner Protector

503191137

$11.99

6

Hex. Flange Screw M5 X 25

207652544

$0.50

7

Hex. Flange Elastic Nut M5

233251414

$1.04

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$12.99

10

Pop Rivet 3/16"

293150142

$2.29

11

Washer

503191273

$1.35

12

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

13

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

14

Ball Bearing | Package-STD

503190396

$14.30

15

Wheel 141 With Pattern Ass'y, Yellow

503191312

$37.99

16

Ball Bearing | Package-STD

503190396

$14.30

17

Support

503190580

Unavailable

18

Washer

211200041

$3.17

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Wheel Cap

570063600

$3.49

21

Labyrinth Seal

503190434

$6.09

22

Hex. Screw M8 X 25

207182544

$0.90

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Wheel Cap

570063600

$3.49

25

Rubber Stopper

503191291

$19.99

26

Pop Rivet 3/16"

293150142

$2.29

27

Washer

503191273

$1.35

28

Spacer

503193250

$16.49

29

Tensioner

503192583

$8.29

30

Hex. Screw M6 X 30

207063044

$1.26

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

33

Elastic Locking Nut M10 X 1.5

233601416

$1.69

34

Wheel 180 With Pattern Ass'y, Yellow | Includes 34 to 35

503190342

$51.99

34a

Retaining Ring

415129371

$12.01

35

Ball Bearing | Package-STD

503190396

$14.30

36

Rear Axle

503190429

$59.99

37

Hex. Screw With Nylon

250000019

$1.69

38

Washer

503190439

$5.93

39

Rear Wheel Spacer

503190428

$8.14

40

Spacer

503191108

$19.99

41

Washer

503190432

$14.22

42

SC4 Decal

516002615

Unavailable
