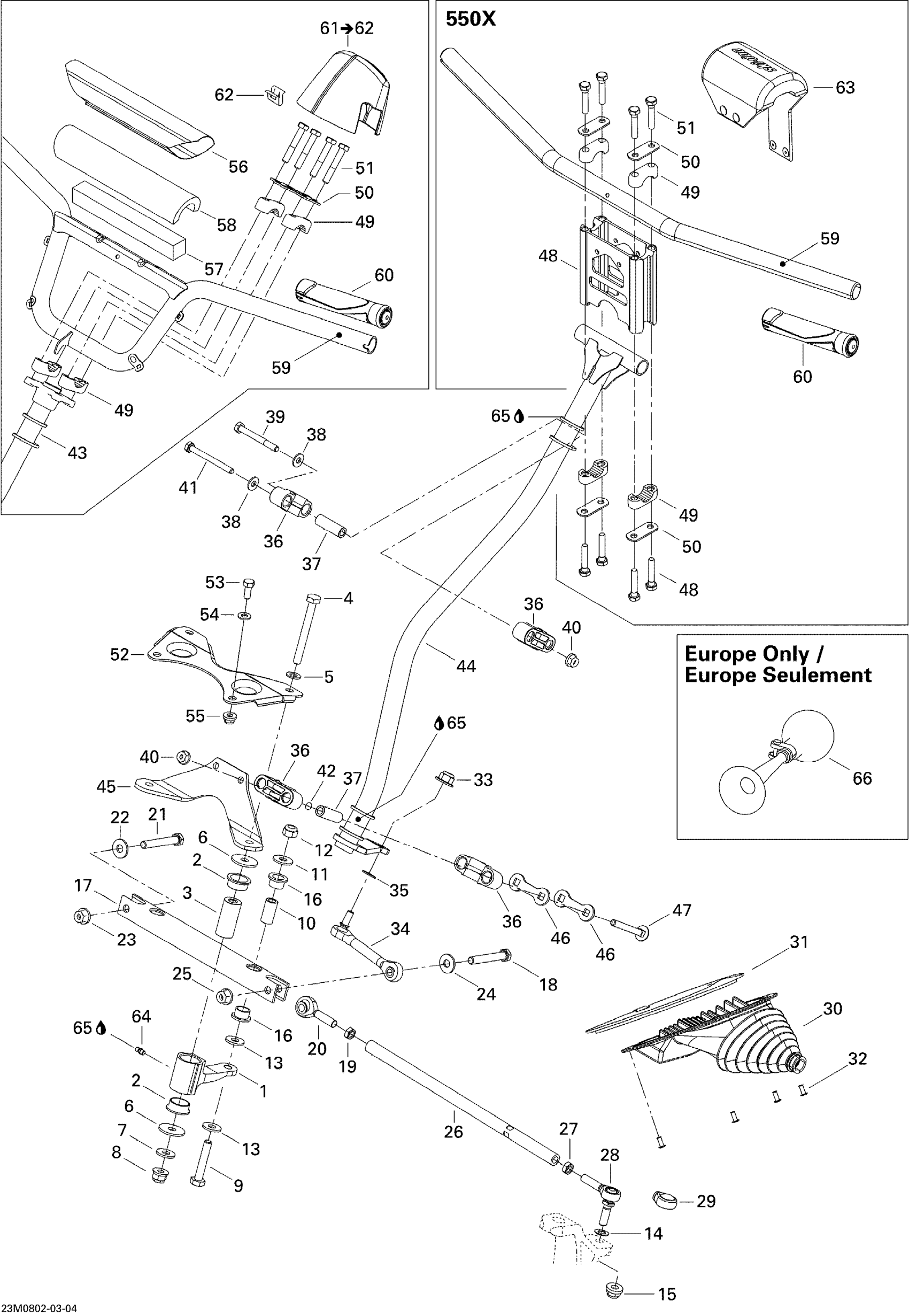

Ski-Doo MX Z 550F, 2008 07- Steering Diagram

#

Description
Price

1

RH SWIVEL ARM - Call your local BRP dealership

506152124

Unavailable

1

LH SWIVEL ARM - Call your local BRP dealership

506152123

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

Unavailable

3

SWIVEL PIVOT - Call your local BRP dealership

506151272

Unavailable

4

HEX. SCREW M10 X 90 - Call your local BRP dealership

207009086

Unavailable

5

Washer

503183800

$3.28

6

Washer 10 mm

506150000

$2.74

7

Flat Washer M10 | 4X4

250200014

$1.49

8

Flange Nut M10

732610084

$6.79

9

Hex. Screw M10 X 55

207005544

$2.22

10

Pivot Bar

506151273

$15.99

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.69

13

Washer

250200032

$5.08

14

Washer

503175800

$3.28

15

Hex. Flange Elastic Nut M10

250100165

$0.85

16

Swivel Bushing

503191555

$7.83

17

SWIVEL BAR - Call your local BRP dealership

506151328

Unavailable

18

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

19

LH Threaded Hex. Jam Nut M10

250100016

$0.74

20

LH Ball Joint

506151810

Unavailable

21

Hex. Screw M10 X 45

207004544

$1.69

22

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

23

Hex. Flange Elastic Nut M10

233201414

$1.58

24

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

25

Hex. Flange Elastic Nut M10

233201414

$1.58

26

TIE-ROD - Call your local BRP dealership

506151340

Unavailable

27

RH Threaded Hex. Jam Nut M10

732610010

$0.74

28

BALL JOINT - Call your local BRP dealership

506152212

Unavailable

29

PROTECTION CAP - Call your local BRP dealership

506151650

Unavailable

30

RH Tie-Rod Cap

506151725

$43.99

30

LH Tie-Rod Cap

506151726

$43.99

31

RH RETAINER RING - Call your local BRP dealership

506151356

Unavailable

31

LH RETAINER RING - Call your local BRP dealership

506151357

Unavailable

32

Avex Rivet

390909100

$0.30

33

Hex. Flange Elastic Nut M10

250100165

$0.85

34

BALL JOINT, DOUBLE - Call your local BRP dealership

506151621

Unavailable

35

Washer

503175800

$3.28

36

Housing Half

506150400

$7.62

37

Housing Bushing

506150500

$7.99

38

Washer

503189157

$3.28

39

Hex. Screw M8 X 70

207087044

$2.19

40

Hex. Flange Elastic Nut M8

233281414

$1.47

41

Hex. Screw M8 X 80

207088044

$1.68

42

O-RING - Call your local BRP dealership

506151140

Unavailable

43

MAIN TUBE - Call your local BRP dealership

506152131

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

45

STEERING SHAFT SUPPORT - Call your local BRP dealership

506151330

Unavailable

46

Stopper Plate

506150600

$4.39

47

Carriage Bolt M8 X 70

207787044

$1.37

48

Not Available As Spare Parts

XXX

Unavailable

49

Steering Support

709400919

$22.49

50

Not Available As Spare Parts

XXX

Unavailable

50

REINFORCEMENT - Call your local BRP dealership

506151547

Unavailable

51

Not Available As Spare Parts

XXX

Unavailable

51

HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership

250000082

Unavailable

52

PIVOT SUPPORT - Call your local BRP dealership

506151536

Unavailable

53

Hex. Screw M8 X 25

207182544

$0.90

54

Flat Washer 8 mm

234081410

$0.83

55

Hex. Flange Elastic Nut M8

233281414

$1.47

56

STEERING COVER - Call your local BRP dealership

506152140

Unavailable

57

STEERING COVER FOAM INSERT - Call your local BRP dealership

506152141

Unavailable

58

STEERING COVER FOAM - Call your local BRP dealership

506152143

Unavailable

59

Not Available As Spare Parts

XXX

Unavailable

59

HANDLE BAR - Call your local BRP dealership | FAN

506151993

Unavailable

60

Not Available As Spare Parts

XXX

Unavailable

60

Handle Grip

506152238

$78.49

61

CAP - Call your local BRP dealership | Includes 29 to 30

506151660

Unavailable

62

Edge Clip

517302785

$0.88

63

Not Available As Spare Parts

XXX

Unavailable

64

Grease Fitting

408200700

$3.49

65

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

66

Horn

549011291

$35.99
