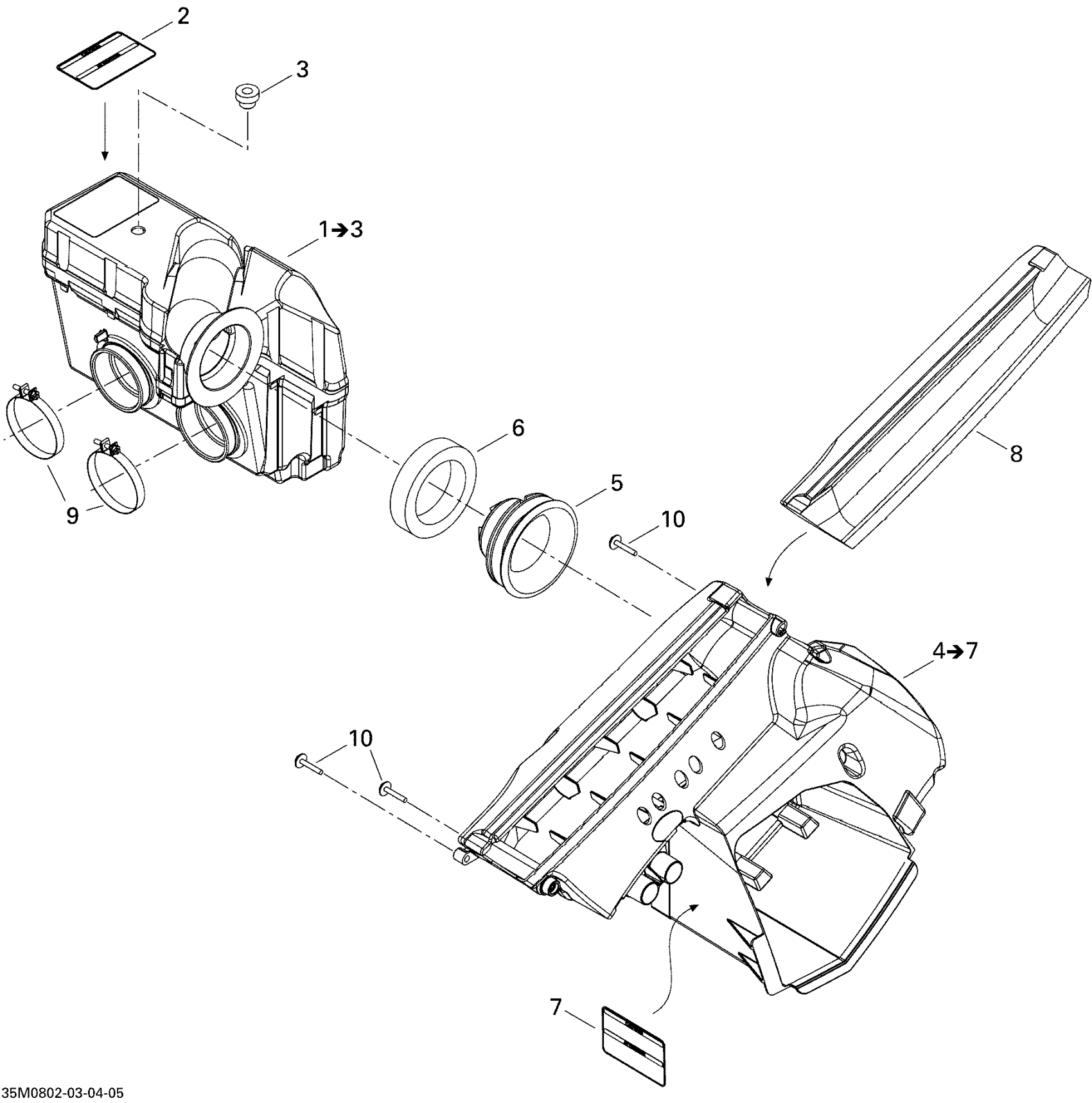

Ski-Doo MX Z 550F, 2008 Air Intake System Diagram

#

Description

Price

1

Primary Chamber Ass'y | Includes 1 to 3

508000383

$84.99

2

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

3

Grommet

513032908

$10.49

4

SECONDARY CHAMBER ASS'Y - Call your local BRP dealership | Includes 4 to 7

508000376

Unavailable

5

GUIDE - Call your local BRP dealership

508000240

Unavailable

6

OUTER FOAM - Call your local BRP dealership

508000199

Unavailable

7

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

8

Air Filter

508000394

$51.99

9

GEMI CLAMP - Call your local BRP dealership

508000344

Unavailable

10

Plastite Screw Type K-40, M4 X 25

250000101

$3.49
