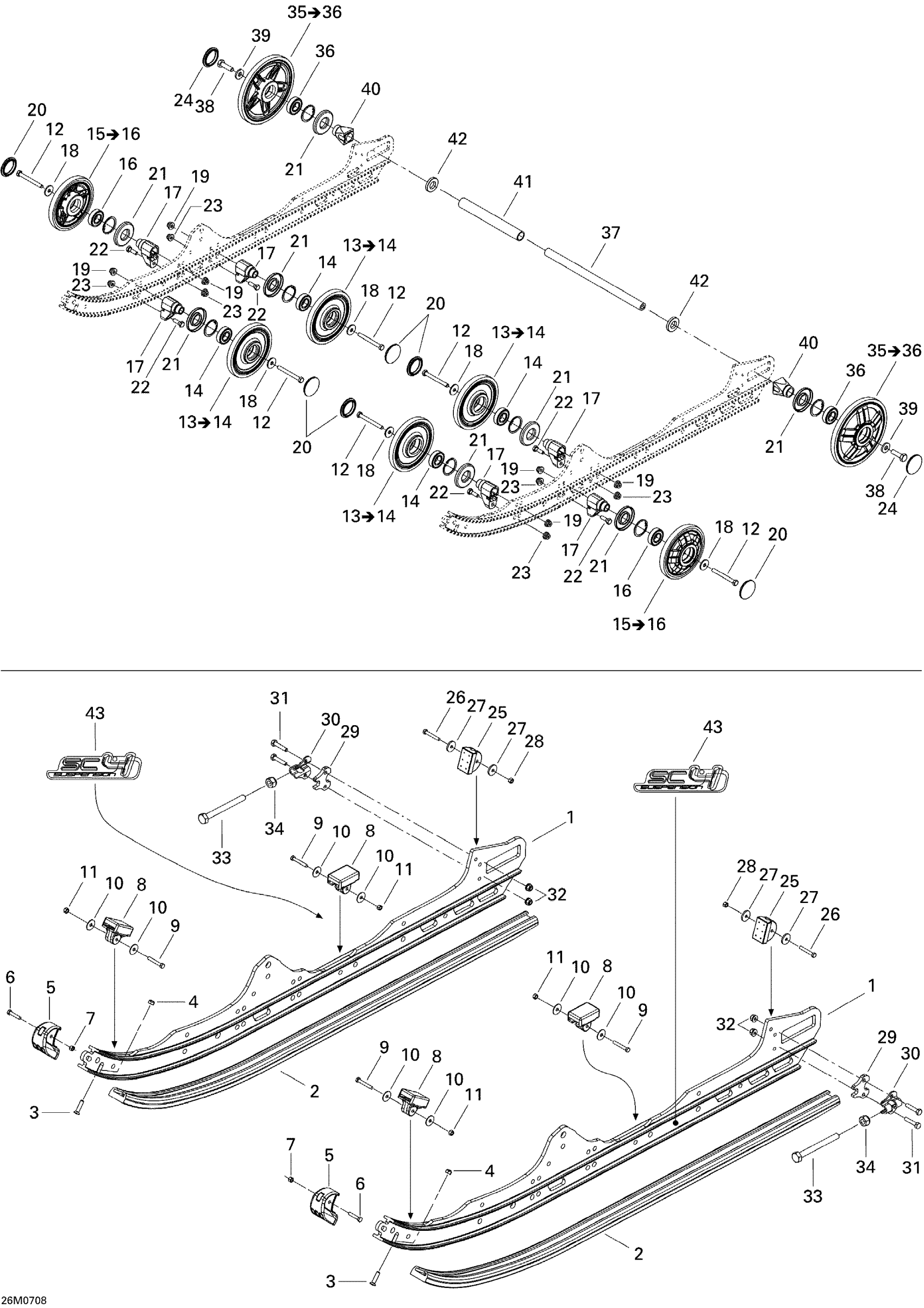

Ski-Doo MX Z 550F, 2007 Rear Suspension Diagram

#

Description
Price

1

RUNNER 121 - Call your local BRP dealership

503191224

Unavailable

2

Slider Shoe

503190573

$26.84

3

Phillips Screw M6 X 25

208562560

$2.21

4

Elastic Stop Nut M6

232561414

$1.78

5

Runner Protector

503191137

$9.90

6

Hex. Flange Screw M5 X 25

207652544

$0.48

7

Hex. Flange Elastic Nut M5

233251414

$1.91

8

Rubber Stopper

503190576

$9.93

9

Hex. Screw M5 X 30

207053044

$1.12

10

Washer

250200016

$0.70

11

Elastic Stop Nut M5

232551414

$0.82

12

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

13

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$35.04

14

Ball Bearing | Package-STD

503190396

$8.18

15

Wheel 141 With Pattern Ass'y, Yellow

503191312

$35.04

16

Ball Bearing | Package-STD

503190396

$8.18

17

Support

503190580

Unavailable

18

Washer

211200041

$3.01

19

Hex. Flange Elastic Nut M8

233281414

$1.31

20

Wheel Cap

570063600

$3.18

21

Labyrinth Seal

503190434

$4.16

22

Hex. Screw M8 X 25

207182544

$0.85

23

Hex. Flange Elastic Nut M8

233281414

$1.31

24

Wheel Cap

570063600

$3.18

25

Rubber Stopper

503191291

$17.88

26

Hex. Screw M5 X 30

207053044

$1.12

27

Washer

250200016

$0.70

28

Elastic Stop Nut M5

232551414

$0.82

29

Spacer

503193250

$13.54

30

Tensioner

503192583

$5.67

31

Hex. Screw M6 X 30

207063044

$1.12

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

33

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

34

Elastic Locking Nut M10 X 1.5

233601416

$1.63

35

Wheel 180 With Pattern Ass'y, Yellow | Includes 34 to 35

503190342

$48.48

36

Ball Bearing | Package-STD

503190396

$8.18

37

Rear Axle

503190429

$58.18

38

Hex. Screw With Nylon

250000019

$1.63

39

Washer

503190439

$5.64

40

Rear Wheel Spacer

503190428

$5.88

41

Spacer

503191108

$14.90

42

Washer

503190432

$12.15

43

SC4 Decal

516002615

Unavailable
