Description

Price

1

CRANKSHAFT - Call your local BRP dealership | Includes 1 to 8 This part replaces 420889062.

420889066

Unavailable

1

CRANKSHAFT - Call your local BRP dealership | Includes 1 to 8 This part replaces 420889062.

420889066

Unavailable

2

Ball Bearing

420832571

$79.49

3

O-Ring, 64 mm X 2 mm

293300022

$12.72

4

Ball Bearing

420832632

$104.99

5

Oil Seal This part replaces 290831952.

420831952

$18.01

6

Oil Seal

420831955

$27.49

7

Ball Bearing

420832573

$44.49

8

Retaining Disk

420927710

$7.41

9

Labyrinth Sleeve

420850149

$35.99

10

Woodruff Key

420246055

$2.43

11

Lock Washer, 22 mm

420945759

$1.90

12

Hex. Nut, M22 X 1.5

420842239

$17.53

13

NEEDLE BEARING - Call your local BRP dealership

420832420

$33.99

14

Piston Ass'y 75.86 mm, Standard | Includes 14 to 16

420889050

$169.99

14

Piston Ass'y 76.11 mm, 1st Oversize | Includes 14 to 16

420889051

$169.99

14

Piston Assy 76.36 mm, 2nd Oversize | Includes 14 to 16

420889052

$169.99

15

Rectangular Ring, Standard

420815300

$24.49

15

Rectangular Ring, 1st

420815301

$24.49

15

Rectangular Ring, 2nd

420815302

$24.49

16

Semi-Trapez Ring, Standard

420815155

$51.99

16

Semi-Trapez Ring, 1st

420815156

$51.99

16

Semi-Trapez Ring, 2nd

420815157

$50.99

17

Piston Pin

420916407

$25.49

18

Piston Circlip

420845106

$3.93

19

Rod Repair Kit

420889064

Unavailable

20

CRANKSHAFT PTO SIDE - Call your local BRP dealership

420819181

Unavailable

21

Half Crankshaft (MAG)

420819213

Unavailable

22

Loctite 243, 10 ml

293800060

$21.49

23

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

24

Sealant Loctite 648

219703000

$45.99

25

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Petamo Grease, GHY133N, 400 g

420899271

$67.99

28

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

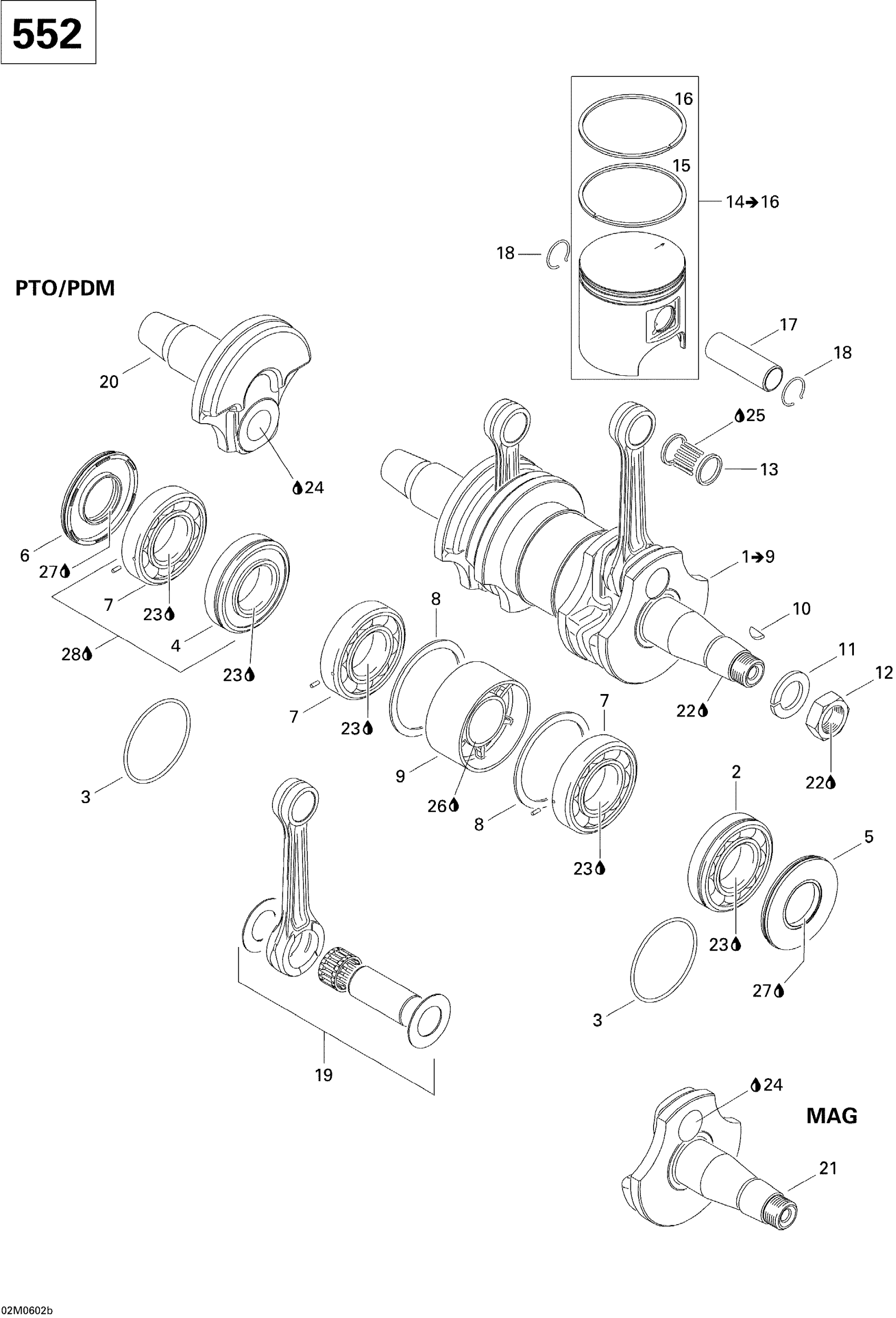

Ski-Doo MX Z 550F, 2006 01- Crankshaft And Pistons MX Z 552 Diagram

CRANKSHAFT - Call your local BRP dealership | Includes 1 to 8 This part replaces 420889062.

CRANKSHAFT - Call your local BRP dealership | Includes 1 to 8 This part replaces 420889062.

Ball Bearing

O-Ring, 64 mm X 2 mm

Ball Bearing

Oil Seal This part replaces 290831952.

Oil Seal

Ball Bearing

Retaining Disk

Labyrinth Sleeve

Woodruff Key

Lock Washer, 22 mm

Hex. Nut, M22 X 1.5

NEEDLE BEARING - Call your local BRP dealership

Piston Ass'y 75.86 mm, Standard | Includes 14 to 16

Piston Ass'y 76.11 mm, 1st Oversize | Includes 14 to 16

Piston Assy 76.36 mm, 2nd Oversize | Includes 14 to 16

Rectangular Ring, Standard

Rectangular Ring, 1st

Rectangular Ring, 2nd

Semi-Trapez Ring, Standard

Semi-Trapez Ring, 1st

Semi-Trapez Ring, 2nd

Piston Pin

Piston Circlip

Rod Repair Kit

CRANKSHAFT PTO SIDE - Call your local BRP dealership

Half Crankshaft (MAG)

Loctite 243, 10 ml

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

Sealant Loctite 648

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

Not Available As Spare Part - Friction Washer

Petamo Grease, GHY133N, 400 g

Isoflex Grease, TOPAS NB52, 50 g
