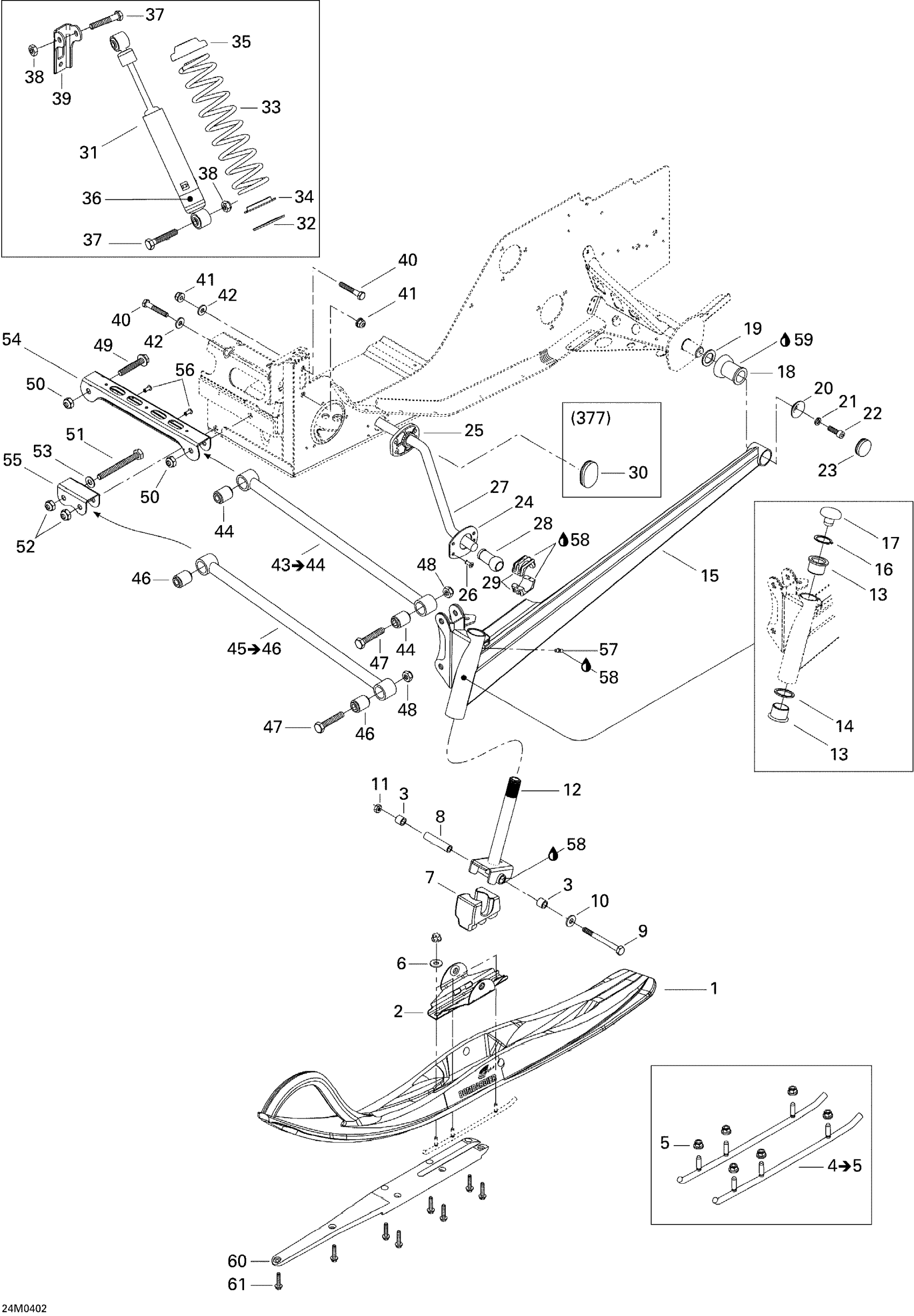

Ski-Doo MX Z 550F, 2004 07- Front Suspension (MX Z 550F) Diagram

#

Description
Price

1

Small ''Blow Mold'' Ski

505072019

$104.99

2

BRIDGE ASS'Y - Call your local BRP dealership

505070980

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Carbide Runner Kit | STD, Includes 7 to 9 This part replaces 861805509.

860512100

$92.99

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Flat Washer 8 mm

234082410

$1.47

7

SKI STOPPER - Call your local BRP dealership

505070978

Unavailable

8

Spacer

506133300

$23.99

9

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

10

Flat Washer 10 mm

234001410

$1.26

11

Hex. Flange Elastic Nut M10

233201414

$1.58

12

Ski Leg

506151234

Unavailable

13

Cushion

505070003

$9.23

14

WASHER - Call your local BRP dealership

505070004

Unavailable

15

RH ARM - Call your local BRP dealership

505070645

Unavailable

15

LH ARM - Call your local BRP dealership

505070646

Unavailable

16

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

17

Cap

572091300

$12.99

18

DAMPER - Call your local BRP dealership

570062200

Unavailable

19

WASHER - Call your local BRP dealership

503146700

Unavailable

20

CUP - Call your local BRP dealership

506079600

Unavailable

21

Lock Washer 8 mm

234181401

$0.92

22

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

24

Plate

505070542

Unavailable

25

Bushing | 550F

505070191

Unavailable

26

Pop Rivet 3/16”

390407200

$0.70

27

Stabilisator | 550F

505070809

Unavailable

28

Ball Joint | 550F

505070816

Unavailable

29

SLIDING BLOCK - Call your local BRP dealership

505070817

Unavailable

30

Black, Nylon Cap

414916600

$4.69

31

Front Shock

505071198

Unavailable

32

WASHER - Call your local BRP dealership

505070401

Unavailable

33

Spring

505070393

Unavailable

34

Spring Guide

503187500

$10.49

35

Spring Stopper

706200881

$12.99

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Hex. Screw M10 X 55

207005544

$2.22

38

Elastic Locking Nut M10 X 1.5

233601416

$1.69

39

RH SHOCK BRACKET - Call your local BRP dealership

518317518

Unavailable

39

LH Shock Bracket

518317519

Unavailable

40

Hex. Screw M8 X 50

207085044

$1.48

41

Hex. Flange Elastic Nut M8

233281414

$1.47

42

Washer

506151245

$0.93

43

UPPER ARM ASSY - Call your local BRP dealership | Includes 41 To 42

505070580

Unavailable

44

Bushing

505070025

Unavailable

45

Lower Arm Ass’Y | Includes 43 To 44

505070402

Unavailable

46

Bushing

505070025

Unavailable

47

Hex. Screw M10 X 55

207005544

$2.22

48

Elastic Locking Nut M10 X 1.5

233601416

$1.69

49

Hex. Flange Screw M10 X 55

207605544

$3.38

50

Elastic Locking Nut M10 X 1.5

233601416

$1.69

51

Hex. Screw M10 X 95

207009544

Unavailable

52

Elastic Locking Nut M10 X 1.5

233601416

$1.69

53

Flat Washer 10 mm

234001410

$1.26

54

Upper Arm Bracket

505070010

Unavailable

55

Lower Arm Bracket

505070011

Unavailable

56

Pop Rivet 3/16"

390402200

$0.35

57

Grease Fitting

408200700

$3.49

58

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

59

Grease, Super Lube

293550030

$28.99
