Description

Price

1

Hood, Millenium Yellow

517304116

Unavailable

2

Hood Foam

517304913

$22.49

8

YELLOW RH PANEL - Call your local BRP dealership | Electric Start Models

517303873

Unavailable

9

Deep Black RH Moulding Panel

517303671

$28.99

10

Grille

517303622

$31.99

11

Hex. Flange Screw K40 X 16

241141660

$1.48

12

Flat Washer 4 mm, Stainless

234042600

$1.15

14

RH Center Foam

517304883

$43.99

15

RH Panel Rear Foam

517304884

$19.99

16

Adhesive Patch

518325560

$4.69

17

PANEL_BODY LH B-190 - Call your local BRP dealership

517303610

Unavailable

18

Deep Black, LH Moulding Panel

517303673

$28.99

19

Hex. Flange Screw K40 X 16

241141660

$1.48

20

Flat Washer 4 mm, Stainless

234042600

$1.15

22

LH Panel Center Foam

517304887

$27.99

23

LH Panel Lower Foam

517304888

$22.49

24

LH Panel Upper Foam

517304889

$21.99

25

LH Panel Rear Foam

517304890

$17.99

26

Foam

517304891

$21.99

27

RH Panel Latch

517303612

$9.99

28

Latch Support

517304221

$9.19

29

Hex.Flange Screw M5 X 20

207652044

$1.90

30

Hex. Flange Elastic Nut M5

233251414

$1.04

31

LH Panel Latch

517303808

$11.49

32

Pop Rivet 3/16”

293150108

$1.19

33

Push Nut

732610072

$2.19

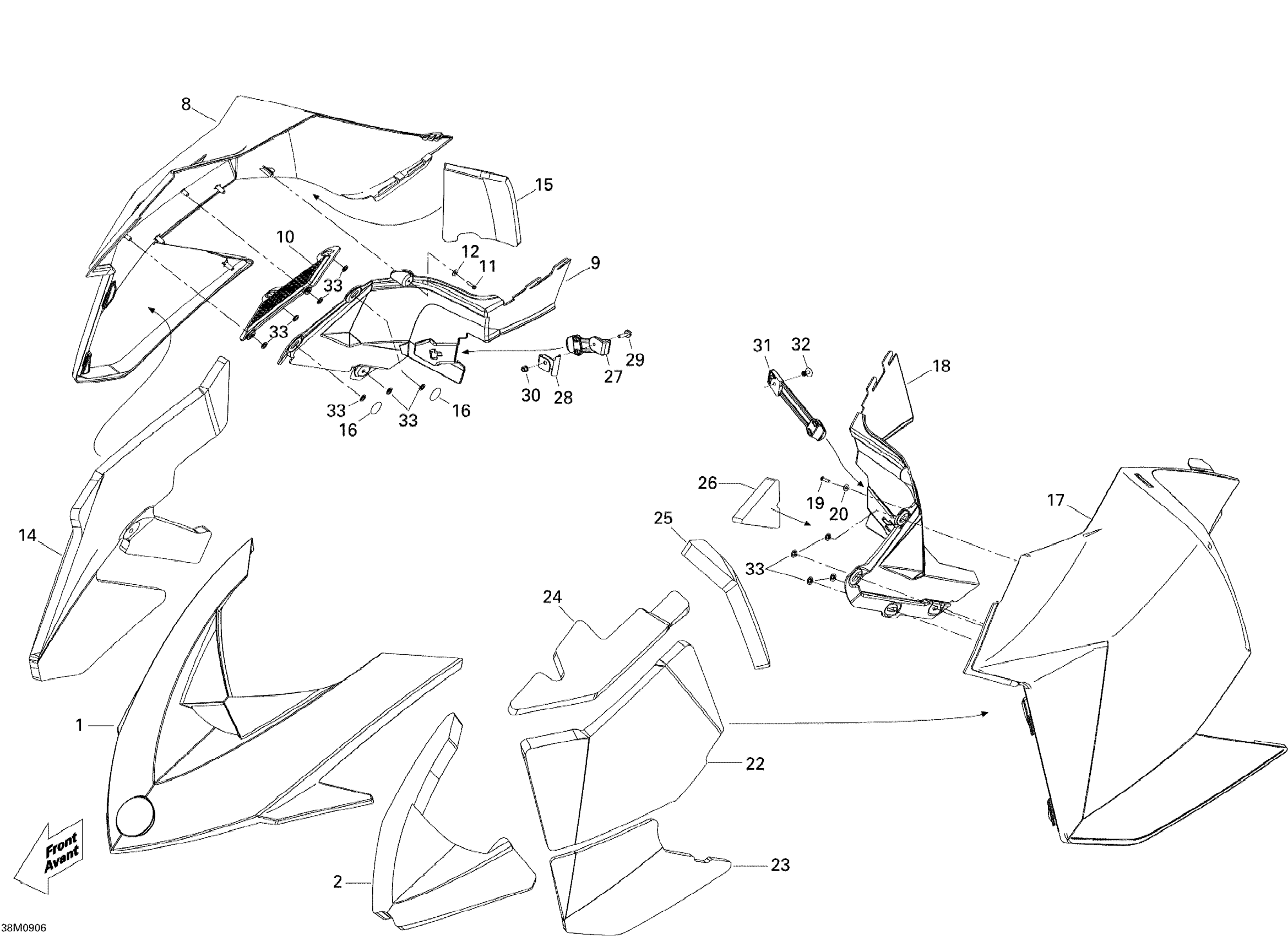

Ski-Doo MX Z 50TH Anniversary, 2009 09- Hood Diagram

Hood, Millenium Yellow

Hood Foam

YELLOW RH PANEL - Call your local BRP dealership | Electric Start Models

Deep Black RH Moulding Panel

Grille

Hex. Flange Screw K40 X 16

Flat Washer 4 mm, Stainless

RH Center Foam

RH Panel Rear Foam

Adhesive Patch

PANEL_BODY LH B-190 - Call your local BRP dealership

Deep Black, LH Moulding Panel

Hex. Flange Screw K40 X 16

Flat Washer 4 mm, Stainless

LH Panel Center Foam

LH Panel Lower Foam

LH Panel Upper Foam

LH Panel Rear Foam

Foam

RH Panel Latch

Latch Support

Hex.Flange Screw M5 X 20

Hex. Flange Elastic Nut M5

LH Panel Latch

Pop Rivet 3/16”

Push Nut
