Description

Price

1

Temperature Sensor This part replaces 515176043.

515177835

$92.99

2

Male Connector, 4 Circuits | CE

278000739

$19.49

3

Female Terminal

278000632

$2.09

4

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

5

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

6

Relay | DS 650 X

710010053

$23.49

7

Mount Dart

293730040

$1.04

8

Configuration Harness Ass'y | Includes 13 to 27

515175721

$61.99

9

Male Terminal

515175232

$1.58

10

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

11

Housing Support

515175283

$9.19

12

Female Housing, 5 Circuits

409209900

$9.59

13

Female Terminal

561503100

$2.41

14

Female Terminal

409011600

$5.39

15

Fuse Holder

409004000

$8.09

16

CLIP - Call your local BRP dealership

409014200

Unavailable

17

Tubing 6 Mm 3000Mm Long

219704425

$13.75

18

Was 409901800 Tubing (13 mm)

219704400

$14.49

19

Fuse, 5 Amperes | CE

278000344

$3.28

20

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

21

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

22

CONFIGURATION HARNESS - Call your local BRP dealership | Manual Start, Includes 22 to 29

515176175

Unavailable

23

Male Terminal

515175232

$1.58

24

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

25

Housing Support

515175283

$9.19

26

Female Housing, 5 Circuits

409209900

$9.59

27

Female Terminal

561503100

$2.41

28

Was 409901800 Tubing (13 mm)

219704400

$14.49

29

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

30

Tie-Rap 180 mm

414115200

$0.11

31

Tie-Rap 173 mm

293750009

$1.04

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

HARNESS SUPPORT - Call your local BRP dealership

515176020

Unavailable

34

HORN - Call your local BRP dealership

515176035

Unavailable

35

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

36

Silicone Sealant 51388, 300 ml

296000309

$36.99

37

Not Available As Spare Parts

XXX

Unavailable

38

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

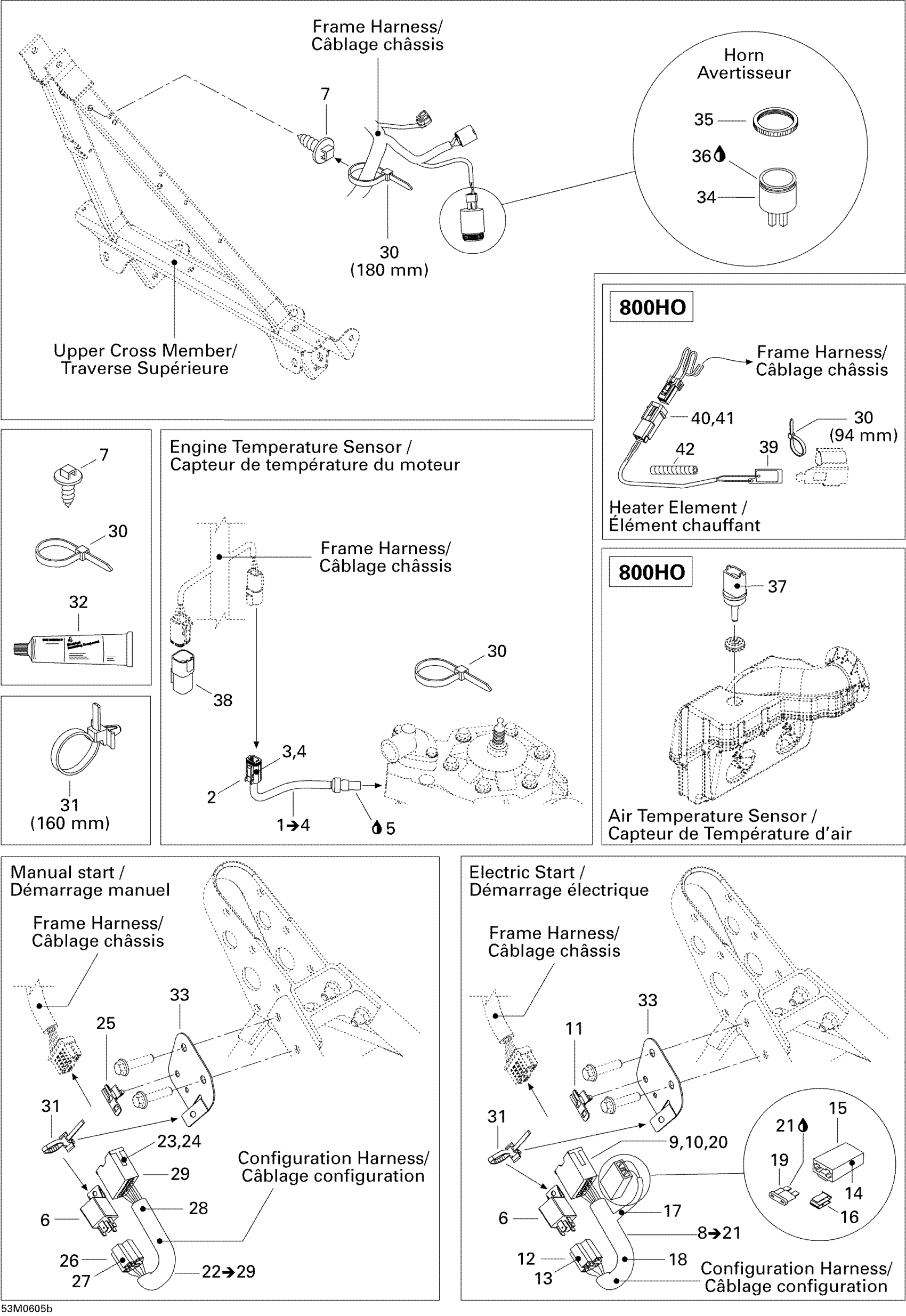

Ski-Doo MX Z 500SS Trail & Adrenaline, 2006 10- Electrical Accessories 2 (500) Diagram

Temperature Sensor This part replaces 515176043.

Male Connector, 4 Circuits | CE

Female Terminal

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

Was 293800018 Loctite 592, 50 ml | Package T

Relay | DS 650 X

Mount Dart

Configuration Harness Ass'y | Includes 13 to 27

Male Terminal

MALE TERMINAL - Call your local BRP dealership

Housing Support

Female Housing, 5 Circuits

Female Terminal

Female Terminal

Fuse Holder

CLIP - Call your local BRP dealership

Tubing 6 Mm 3000Mm Long

Was 409901800 Tubing (13 mm)

Fuse, 5 Amperes | CE

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

Was 293550004 Dielectric Grease, 150 g

CONFIGURATION HARNESS - Call your local BRP dealership | Manual Start, Includes 22 to 29

Male Terminal

MALE TERMINAL - Call your local BRP dealership

Housing Support

Female Housing, 5 Circuits

Female Terminal

Was 409901800 Tubing (13 mm)

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

Tie-Rap 180 mm

Tie-Rap 173 mm

Was 293550004 Dielectric Grease, 150 g

HARNESS SUPPORT - Call your local BRP dealership

HORN - Call your local BRP dealership

PLASTIC NUT - Call your local BRP dealership

Silicone Sealant 51388, 300 ml

Not Available As Spare Parts

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts
