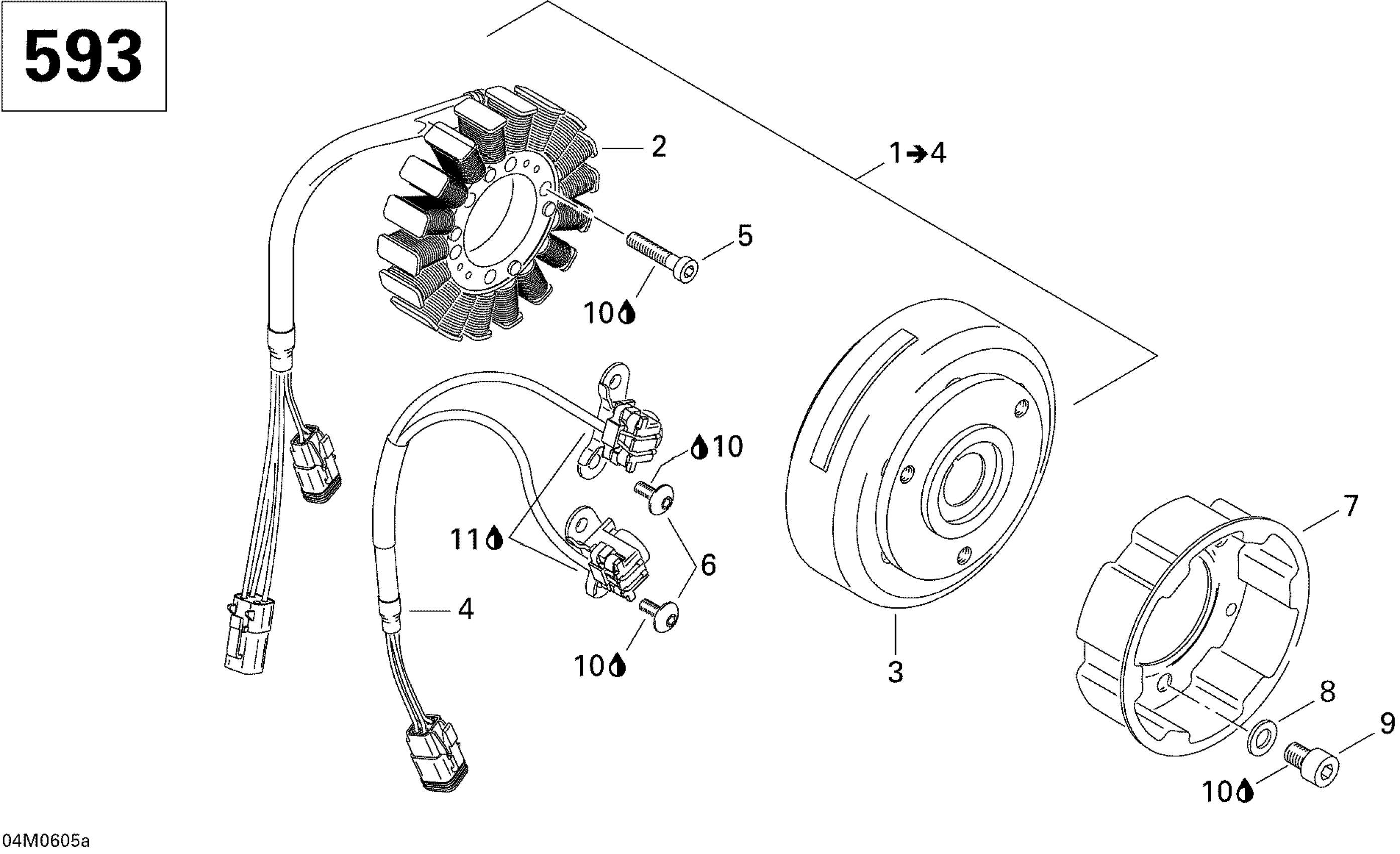

Ski-Doo MX Z 500SS Trail & Adrenaline, 2006 Magneto 593 Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Stator Plate A

420889905

$319.49

3

FLYWHEEL - Call your local BRP dealership

410922947

Unavailable

4

Pickup Ass'y

410922948

$189.20

5

Socket Head Screw M6 X 30

205063044

$1.42

6

Torx Screw M6 X 16

420640324

$2.06

7

Starting Pulley

420852590

$28.43

8

Flat Washer

420827405

$1.66

9

Socket Head Screw M8 X 12

420841520

$1.68

10

Loctite 243, 10 ml

293800060

$20.77

11

Not Available As Spare Part - Friction Washer

Unavailable
