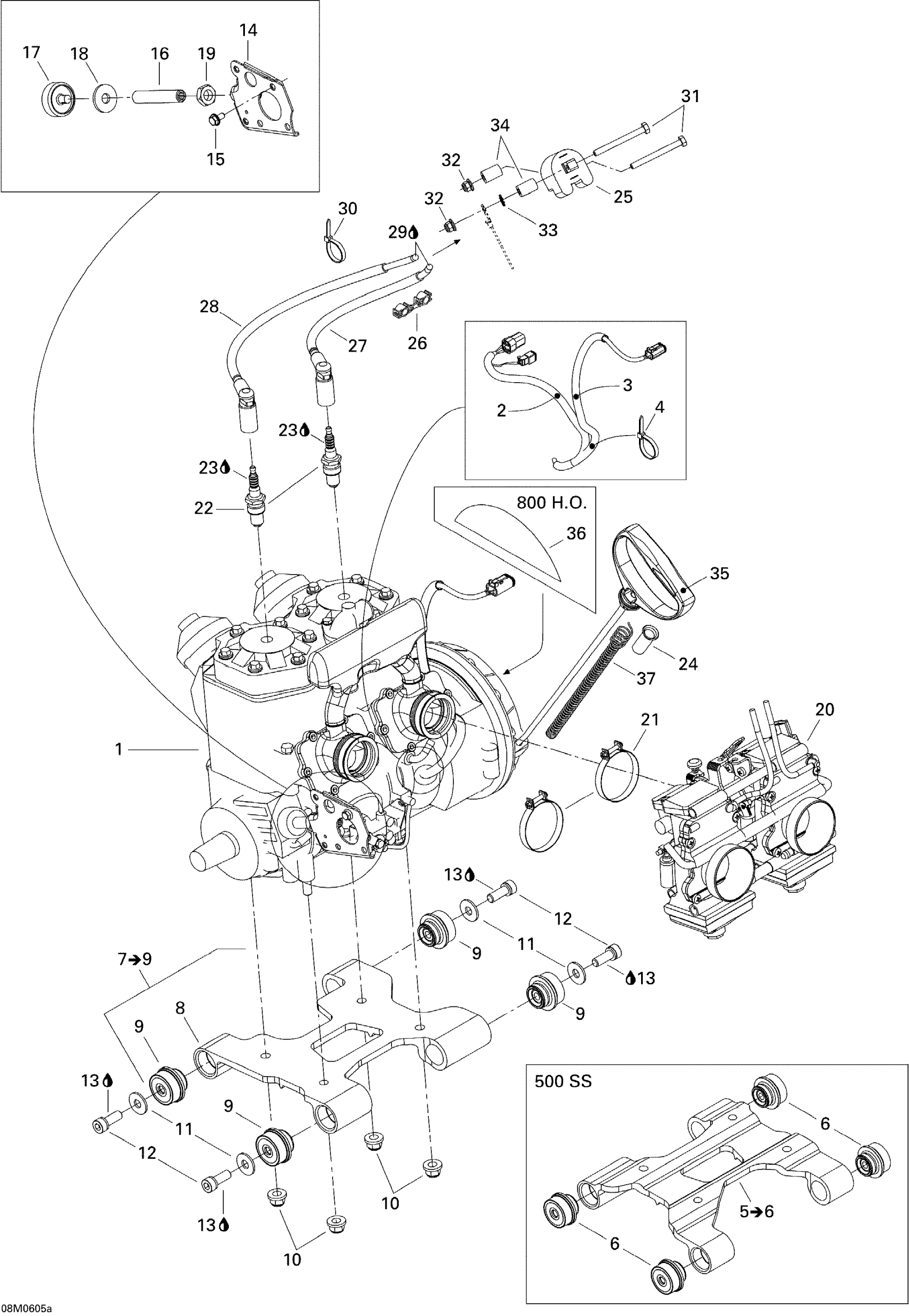

Ski-Doo MX Z 500SS Trail & Adrenaline, 2006 Engine 1 (500SS) Diagram

#

Description
Price

1

Engine 593 | 500 SS

400509766

Unavailable

2

Was 409901800 Tubing (13 mm)

219704400

$10.79

3

Tubing 10 MM 1000MM Long

219704407

$2.52

4

Tie Wrap 142 mm

293750002

$1.01

5

ENGINE SUPPORT ASS'Y - Call your local BRP dealership | Includes 5 to 6

512060047

Unavailable

6

Rubber Mount

512059691

$43.25

7

Not Available As Spare Parts

XXX

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Hex. Flange Elastic Nut M10

233201414

$1.45

11

Flat Washer M10 | 4X4

250200014

$1.34

12

Socket Head Screw M10 X 25

205002544

$1.43

13

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

14

PLATE - Call your local BRP dealership

512059840

Unavailable

15

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

16

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

17

STOPPER - Call your local BRP dealership

512059610

Unavailable

18

WASHER - Call your local BRP dealership

512059057

Unavailable

19

Hex. Jam Nut M14

232170411

$1.43

20

Carburetor Kit TM40-B352Z1

403138788

Unavailable

21

Gemi Clamp

512059835

$10.21

22

Spark Plug NGK BR9ECS-5

512059552

$11.13

23

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

24

TUBE - Call your local BRP dealership

512059536

Unavailable

25

Ignition Coil

512059968

$48.48

26

Plastic Clip, Spark Plug Wire

410914600

$5.30

27

CABLE ASSY, 300 MM - Call your local BRP dealership

512059695

Unavailable

28

Cable Ass’y, 375 mm

512059696

$82.06

29

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

30

Tie-Rap 180 mm

414115200

$0.10

31

Hex. Screw M6 X 60

207066044

$0.64

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

33

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

34

Spacer

517203200

$14.90

35

Starter Grip

572084400

$14.10

36

Not Available As Spare Parts

XXX

Unavailable

37

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable
