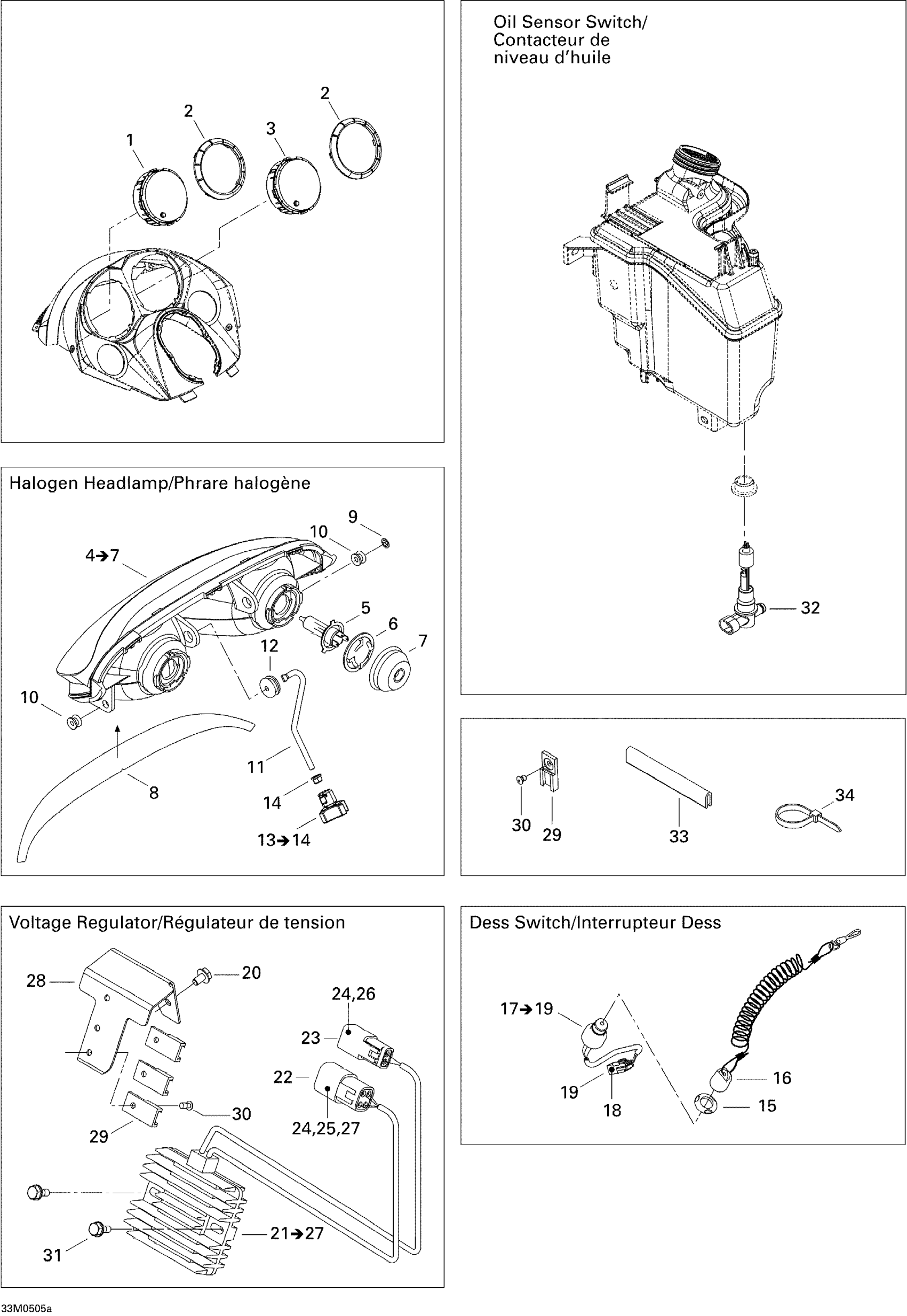

Ski-Doo MX Z 500SS Trail & Adrenaline, 2005 10- Electrical System A Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership

515176244

Unavailable

1

Speedometer

515176263

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

Tachometer

515176275

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

9

Push Nut

732610072

$2.19

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

11

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

12

Grommet - Call your local BRP dealership

415100800

Unavailable

13

HANDLE - Call your local BRP dealership

515175975

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Safety Nut (DESS Switch)

278002963

$3.28

16

DESS

515178284

$84.99

17

DESS Switch

515177249

$114.99

18

Male Terminal

515175232

$1.58

19

Male Housing, 3 Circuits

515175494

$16.18

20

Hex. Forming Screw M6 X 10

210261050

$1.69

21

Voltage Regulator

515175968

$238.49

22

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

23

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

24

Male Terminal

515175568

$9.12

25

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

26

Male Lock, 2 Circuits

278001672

$3.49

27

Sealing Cap

293000052

$3.19

28

HOUSING SUPPORT - Call your local BRP dealership

515176191

Unavailable

29

Clip

270000141

$11.49

29

Clip

270000141

$11.49

30

Avdel Rivet 3/16"

293150037

$0.56

30

Avdel Rivet 3/16"

293150037

$0.56

31

Hexagonal Head Screw

210262050

$2.11

32

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

33

TRIM - Call your local BRP dealership

509000263

Unavailable

33

Was 271000110 Protection Trim

219704353

$15.99

34

Tie Wrap 368 mm

293750008

$1.04
