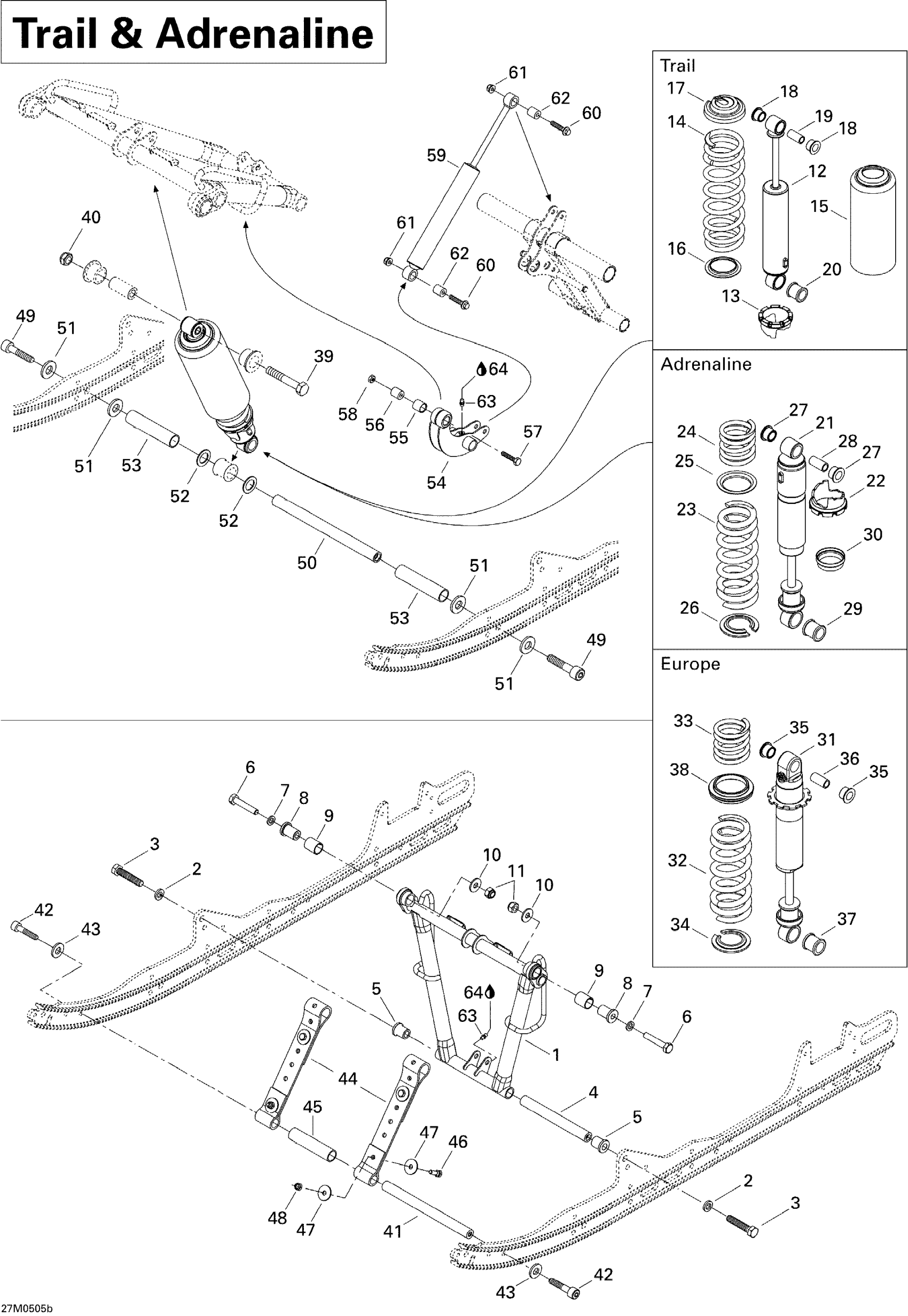

Ski-Doo MX Z 500SS Trail & Adrenaline, 2005 Front Arm Trail & Adrenaline Diagram

#

Description
Price

1

Front Arm

503191071

Unavailable

2

Washer

503189276

$3.28

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55

207005544

$2.22

7

Washer

732900049

$0.58

8

EXTENSION - Call your local BRP dealership

503190373

Unavailable

9

EXTENDED BUSHING - Call your local BRP dealership

503190474

$11.99

10

Flat Washer M10 | 4X4

250200014

$1.49

11

Elastic Locking Nut M10 X 1.5

233601416

$1.69

12

Center Shock

503190317

Unavailable

13

Adjustment Cam

505073625

$12.99

14

Black, Spring

503189686

$67.99

15

Protector

503193663

$37.99

16

Spring Guide

503187500

$10.49

17

Spring Stopper

706200881

$12.99

18

Urethane Bushing

503189117

$8.19

19

Bushing | Includes 240d to 240d1

503189282

$4.34

20

Bushing

503189271

$13.99

21

Center Shock | Europe

503190663

$248.99

22

Adjustment Cam

505073625

$12.99

23

SPRING - Call your local BRP dealership

503190478

Unavailable

24

SPRING - Call your local BRP dealership

503190476

Unavailable

25

Spring Guide

503191872

$2.29

26

Spring Stopper

503189912

$10.99

27

Urethane Bushing

503189117

$8.19

28

Bushing | Includes 240d to 240d1

503189282

$4.34

29

Bushing

503189271

$13.99

30

Spring Spacer

503190297

Unavailable

31

Center Shock | MX Z 380F (Europe)

503190973

Unavailable

32

SPRING - Call your local BRP dealership | Adrenaline

503189990

Unavailable

33

Spring | Adrenaline

503190471

Unavailable

34

Spring Stopper

503189912

$10.99

35

Urethane Bushing

503189117

$8.19

36

Bushing | Includes 240d to 240d1

503189282

$4.34

37

Bushing

503189271

$13.99

38

SPRING SPACER - Call your local BRP dealership | Adrenaline

505070538

Unavailable

39

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

40

Elastic Locking Nut M10 X 1.5

233601416

$1.69

41

AXLE - Call your local BRP dealership

503189562

Unavailable

42

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

43

Washer

503189564

$0.74

44

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

45

Spacer

503189265

$4.99

46

Hex. Flange Screw M8 X 25

207682544

$1.35

47

Flat Washer

224081301

$0.88

48

Hex. Flange Elastic Nut M8

233281414

$1.47

49

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

50

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

51

Washer

503189276

$3.28

52

Washer

503189273

$3.28

53

SPACER - Call your local BRP dealership

503189274

Unavailable

54

Rocker

503189845

Unavailable

55

Rocker Axle

503189388

Unavailable

56

CUSHION - Call your local BRP dealership

503189626

Unavailable

57

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

58

Elastic Locking Nut M10 X 1.5

233601416

$1.69

59

REAR SHOCK - Call your local BRP dealership | Adrenaline

503190304

Unavailable

59

Rear Shock

503191582

$164.49

59

Rear Shock | Europe

503190449

Unavailable

60

Hex. Flange Screw M8 X 40

207684044

$1.48

61

Hex. Flange Elastic Nut M8

233281414

$1.47

62

Bushing

414936000

$13.99

63

Grease Fitting

408200700

$3.49

64

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
